Save File

8.1
Press 'SAVE' button, and the menu of figure 6-1 would pop up to save
image, status, and track + status.
Press Image> to save the current measurement wave as image in local or U
disk. The image could be color or black and white. Shown as figure 6-2, in
order to distinguish with normal display interface, the checking interface
has a yellow block out of the image.
Press status> to save the current device status at local or U disk as figure
6-3. For instance, the current measurement type is spectrum sweep. Load
in the status file of adjacent bandwidth measurement type named as 'acp',
and then the device would start to measure the adjacent bandwidth. The
parameter settings are the ones of loaded status file.
Press Track + Status> to save the current status and measurement track.
The save type could be data or CSV shown as figure 6-4. The status and
data of saved wave file would be loaded while the wave is checked. One
field single sweep which is the same as single sweep in normal measurement
would be shown, and the mark of single sweep would be shown at the
upper right corner on the screen. To check the file after quiting, the
sweep mode should be changed from 'signal' to 'continuous'. Then the
instrument would measure continuously as the loaded status.

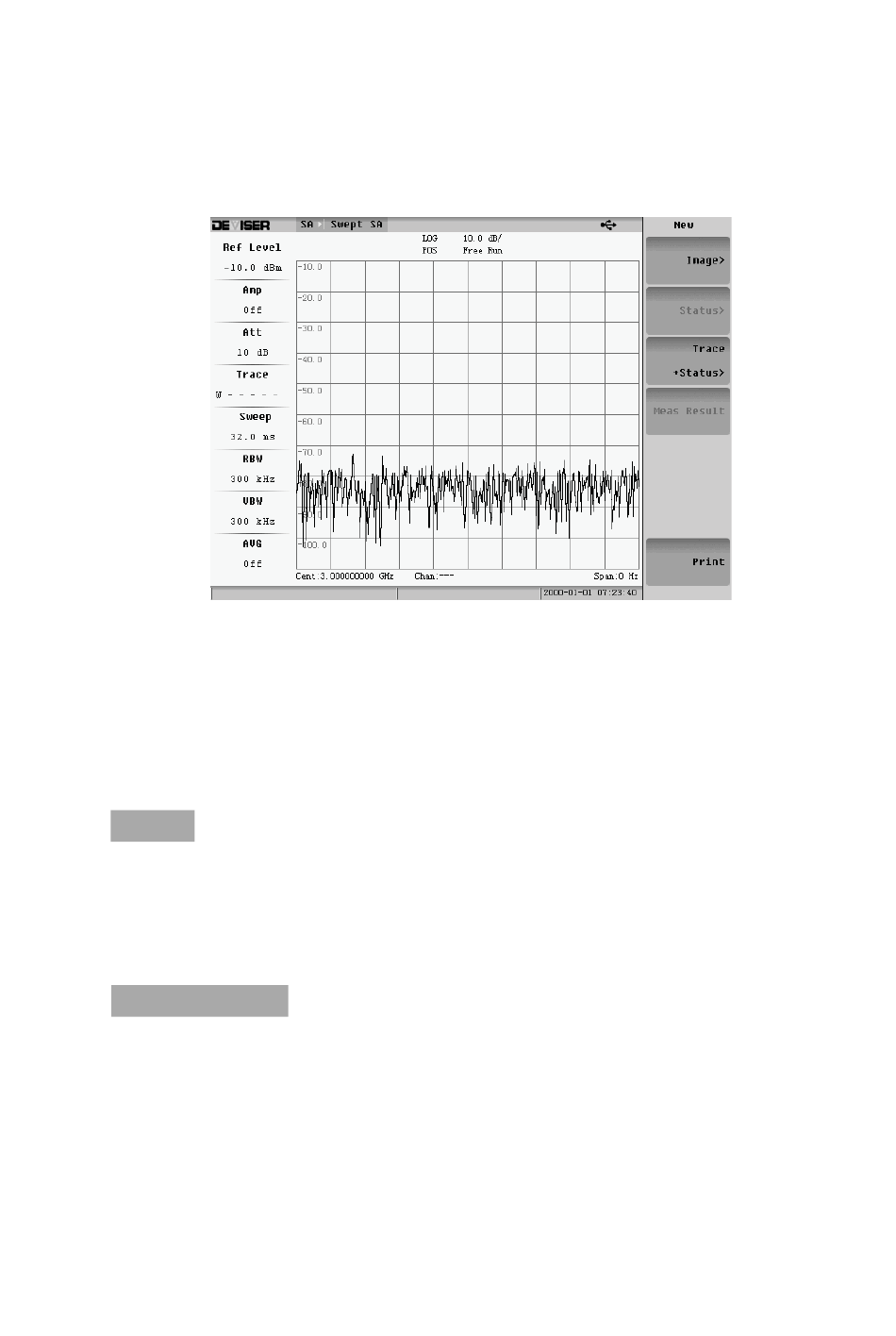

Fig. 8-1 SAVE Menu
177
