1 File Name
When the dialog box of creating new file pops up, the default cursor is at
the place of entering file name. If file type and saving route do not need to

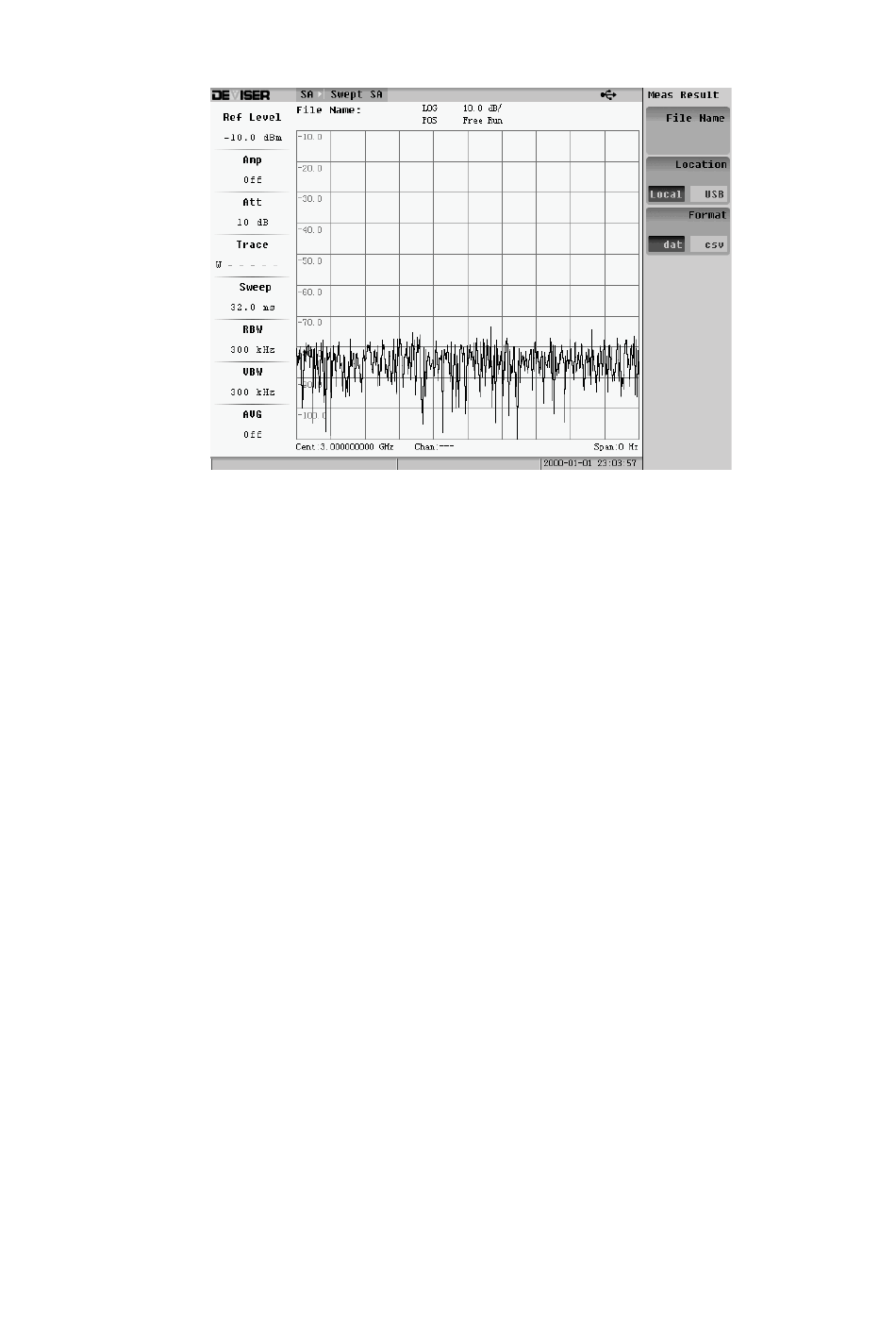

be changed, file name could be entered and saved directly. In the process
of saving file, the status information of 'Saving...' would show at the
information area at the lower left corner of the dialog box shown as the
following figure. The dialog box would close automatically after saving
completing.
The file name could be digit and English letter (capital and small). Please
refer to 2.2.4 for the input method.
2 Saving Route
Files could be saved locally or to any folder in USB. If there is no USB device,
the USB option would not show up.
Move the cursor with the up/down key to the frame of the file list, click on
OK to enter the list, move the cursor to the folder of which you want to
save the file with the knob, and then click on OK. The knob but not the
up/down key should be used in the list frame.
Fig. 8-4 Track + Status Menu
