Harmonic Analysis

3.8
Choose the harmonic analysis measurement in spectrum measurement,
and enter the interface.
Basic measurement:
1, press MEAS, choose field strength measurement type, and the device
would switch to field strength measurement mode.
2, make the current menu be the measurement setting, or press MEAS
SETUP to enter the measurement setting. It could set fundamental
frequency, harmonic order, signal type and measurement bandwidth.
3, press the FREQ key, and set the center frequency, frequency step
and the signal standard.
4, press the CPL key. The setting is almost the same as spectrum
measurement. ,
5, press the MARK key to start to read the value of the marker.
6, press the PEAK key to set the peak value.
7, press the AMP key to set the amplitude.
116

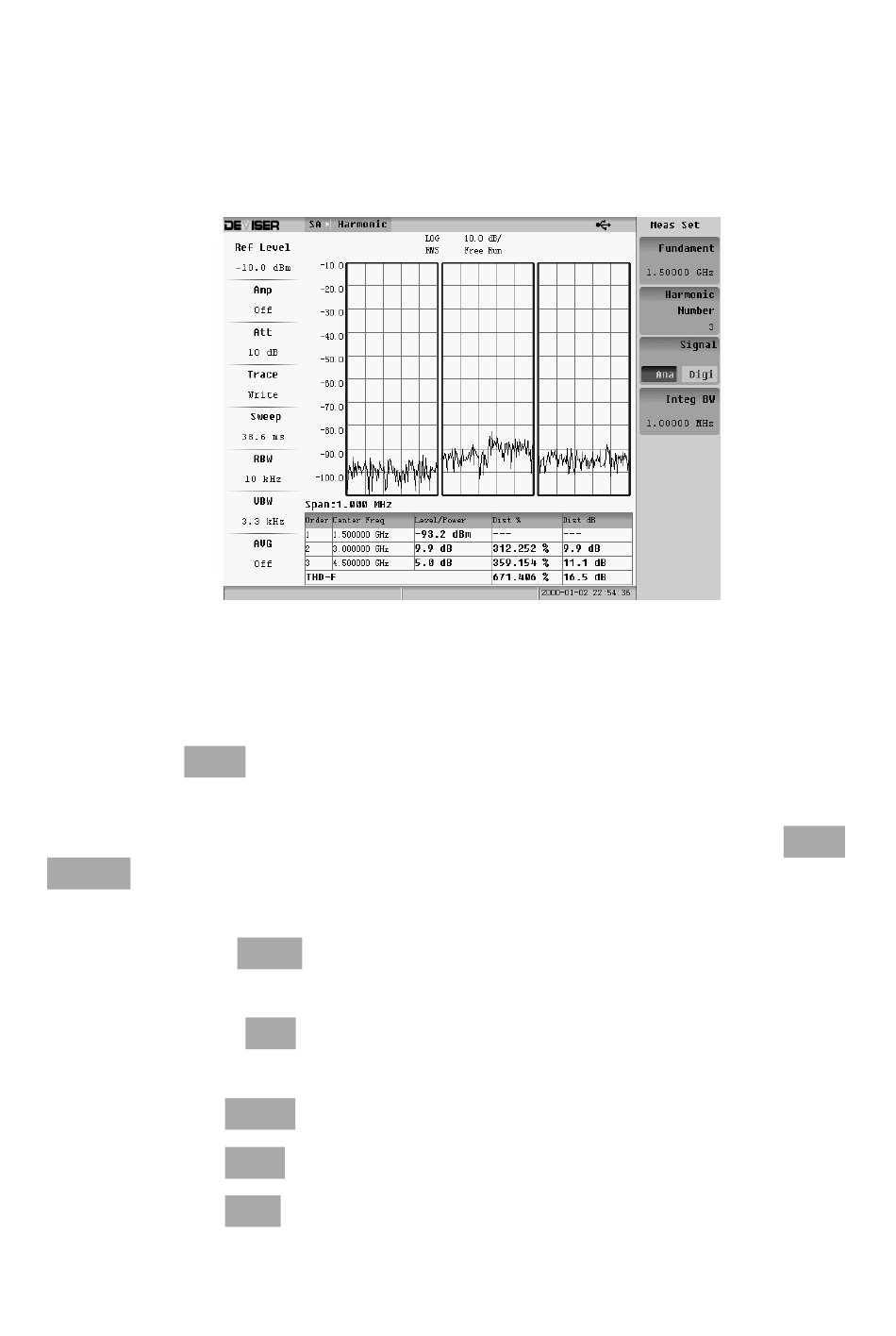

Fig. 3-106 Harmonic Analysis
