3.3.5 Slot Signal Basic Parameters Settings

The operations of frequency and amplitude of Burst RF and continuous RF
measurement are the same.
The setting of burst RF basic parameters is also set with CPL key. The Sweep
Mode and Trigger should be noticed. Sweep mode only includes 'no FFT'
mode, and the default of Trigger is trust RF. If you choose the free triggered,
it would lead to Burst RF into the Continuous RF.
92

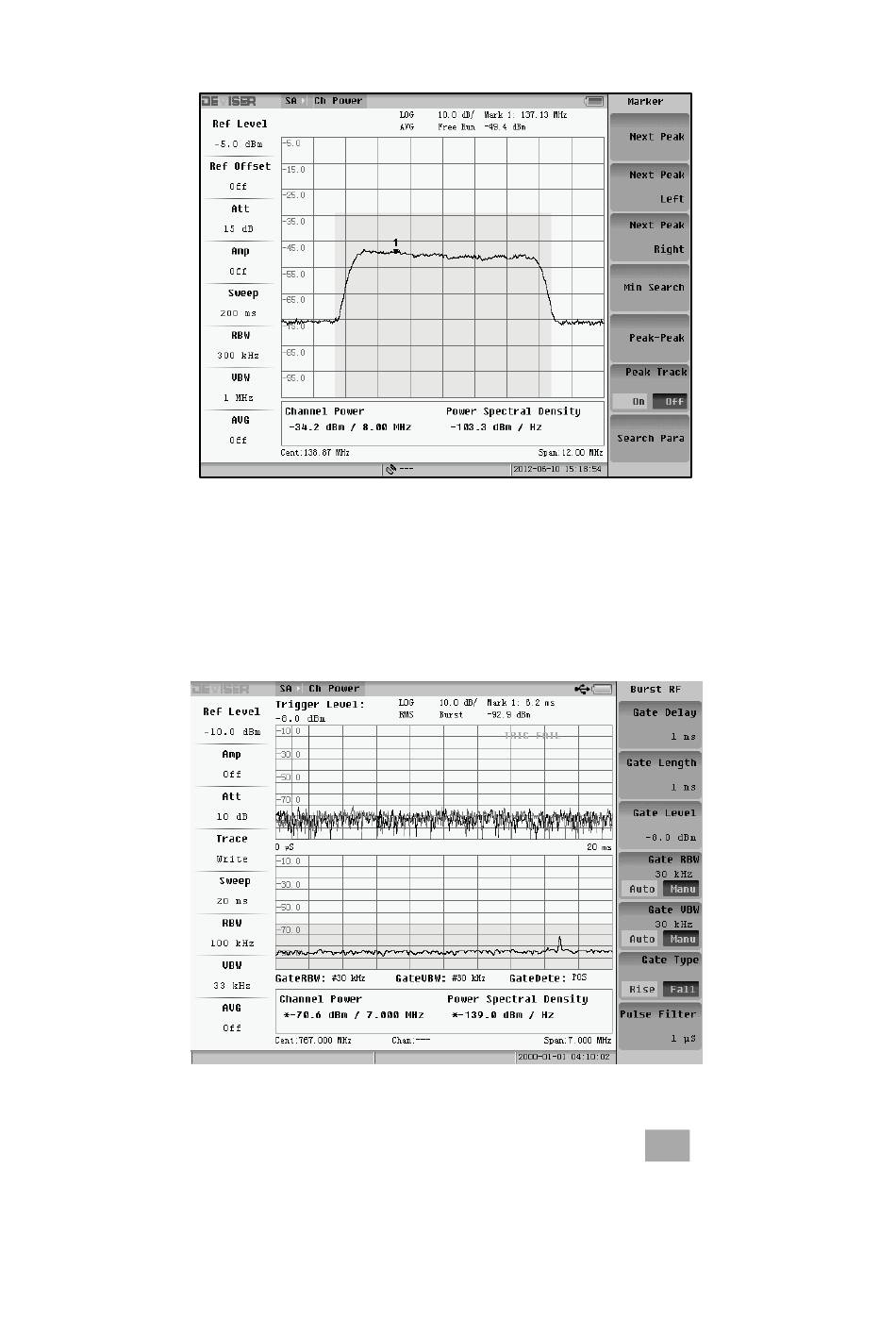

Fig. 3-78 Peak Menu
Fig. 3-79 Burst RF Channel Power Interface
