UI Overview

2.2

2.2.1 Screen Information

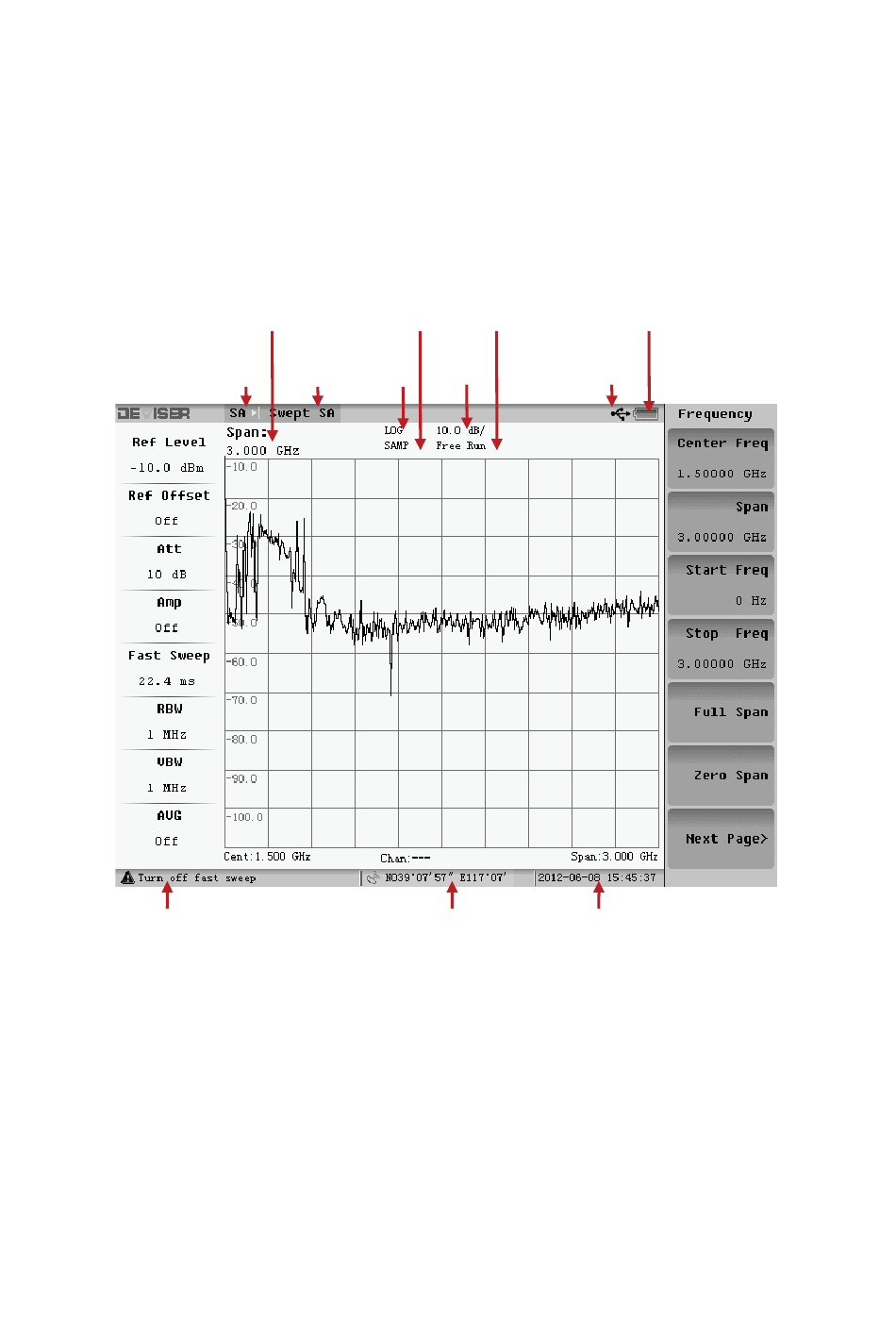

This section introduces the screen information while using the spectrum
analyzer, with an example of figure 2-3 spectrum measurement type under
spectrum analysis mode.
⑽
⑴ Measurement mode
⑶ logarithmic/linear
⑸ USB
⑺ Detector Mode
⑼ Battery Status
⑾ GPS Location
⑹ ⑺
⑴ ⑵ ⑶
Fig. 2-3 Screen Information
⑻
⑷ ⑸
⑾ ⑿
⑵ Measurement type
⑷ unit/scale
⑹ Parameter Setting
⑻ Trigger mode
⑽ Note information
⑿ Date & Time
