Channel Power - ADInstruments AD8000 Series Instruction Manual

AD8000 Series Spectrum Analyzer Instruction
Manual

Channel Power

3.3
Channel Power refers to the total power of the signal in certain span. Select
a type of measurement for channel power, and the following menu will pop
up.
In the figure above, the area with a color background is the Channel
Bandwidth; the height is the total power of channel. In the parameter
window at the bottom, the channel power parameter represents the overall
power of the channel under test, the spectral density of channel power
stands the average power per Hz within the channel bandwidth.
80

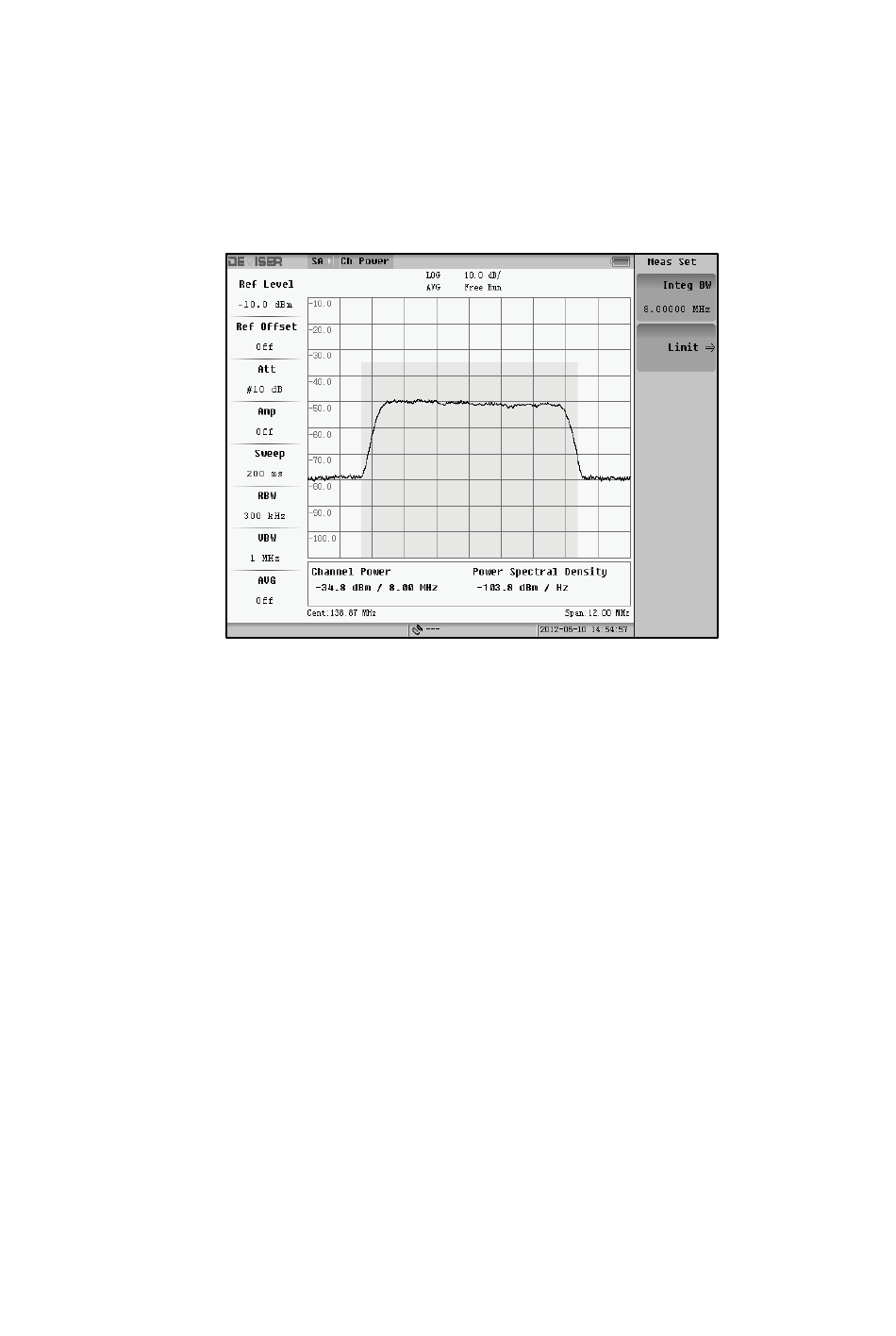

Fig. 3-61 Channel Power Interface
