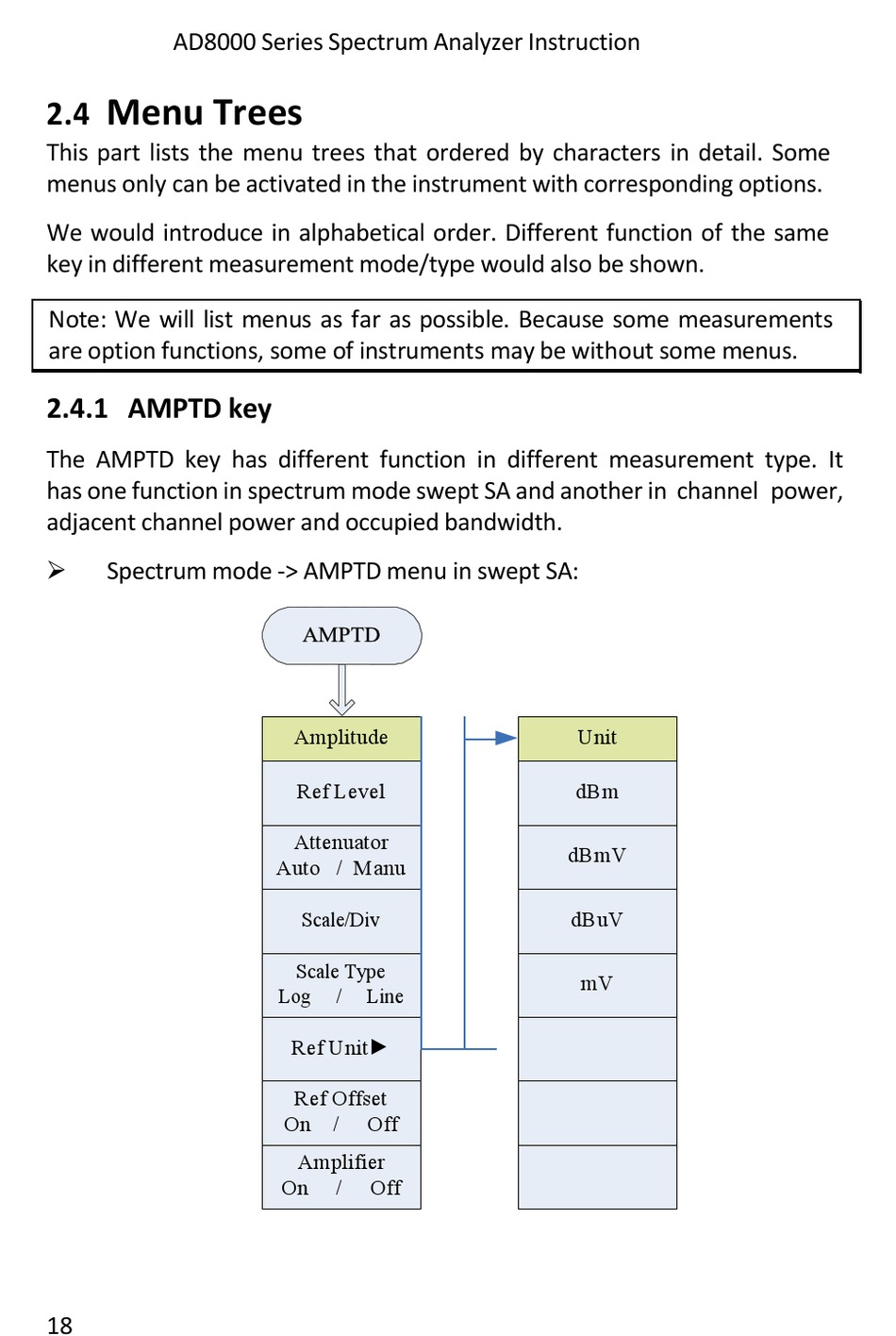

AD8000 Series Spectrum Analyzer Instruction
Manual

Menu Trees

2.4
This part lists the menu trees that ordered by characters in detail. Some
menus only can be activated in the instrument with corresponding options.
We would introduce in alphabetical order. Different function of the same
key in different measurement mode/type would also be shown.
Note: We will list menus as far as possible. Because some measurements
are option functions, some of instruments may be without some menus.

2.4.1 AMPTD key

The AMPTD key has different function in different measurement type. It
has one function in spectrum mode swept SA and another in channel power,
adjacent channel power and occupied bandwidth.
Spectrum mode -> AMPTD menu in swept SA:
Ø
18
Amplitude
Ref Level
Attenuator
Auto / Manu
Scale/Div
Scale Type
Log / Line
Ref Unit►
Ref Offset
On / Off
Amplifier
On / Off
Unit
dBm
dBmV
dBuV
mV
