Mkr' or 'Marker' soft-key, the position of active marker could be changed
with the same method of normal marker.
The marker list function is to record the information of all markers into a list
to view together (the active frequency point is still only one), shown as the
figure below:
Note：When switching between 'Mkr Normal', 'Delta Mark', 'Fixed Mark'
and multi-markers, other markers will automatically be set to 'Off'.
(6) All off & off
After pressing 'Next Page', 'Off' soft-key could be pressed to turn off
current marker and 'All off' key to turn off all current markers.
(7) Count
Press 'Count' key, and the following menu would pop up
The frequency count function could calculate the frequency of the point
with the maximum amplitude accurately to HZ, equivalent to frequency
meter function. Press the frequency countm and the following interface
would pop up that the frequency would show on the menu key.

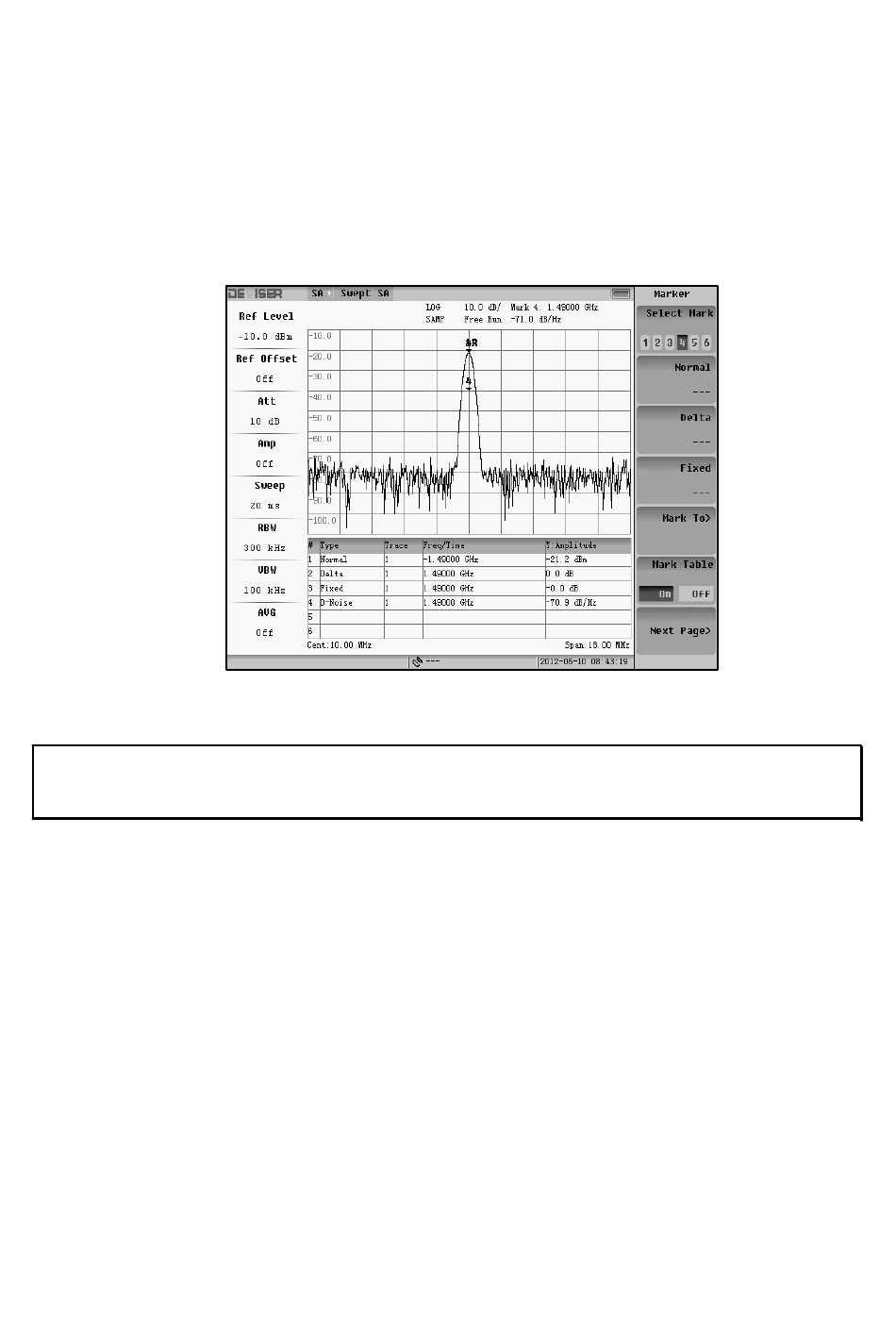

Fig. 3-53 Multi-marker & Marker List
