AD8000 Series Spectrum Analyzer Instruction
Manual
When the peak list is off (there is only one marker 'On'), press 'Marker To
Center'/'Marker To Ref Lvl'. The same as the function of 'Mkr to Ref Lvl' of
the mark, it can set the frequency/amplitude of current marker to center
frequency/reference level.
(3) Track Mode

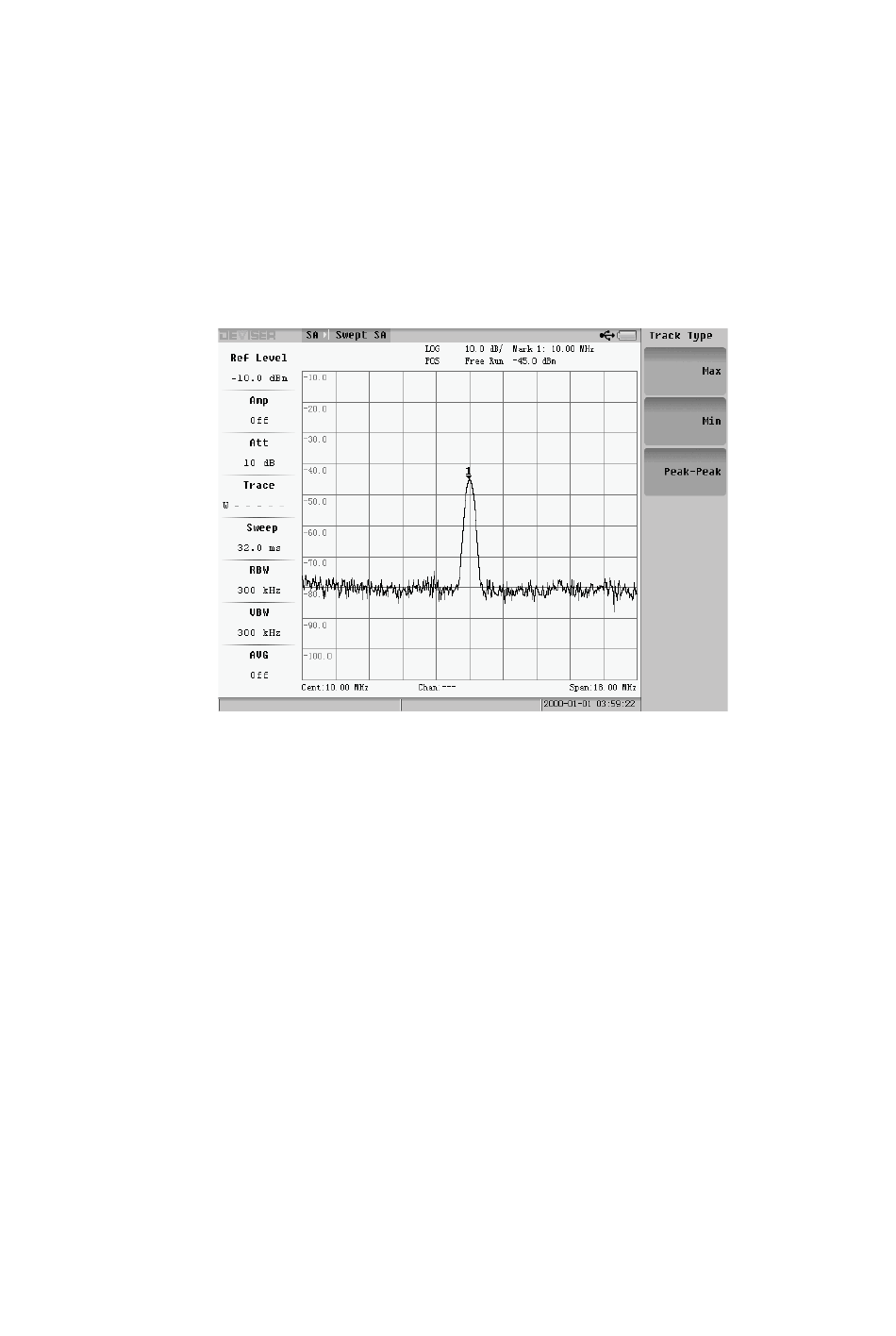

Press 'Track mode', and the following menu would pop up.
(4) Peak-peak & Min Search
Press the 'peak to peak' key, and the amplitude of the highest frequency
will be marked within the span on the top of the screen;
Press the 'minimum', and the amplitude of the lowest frequency within the
span will be marked on the top of the screen.
(5) Peak Table
Shown as the figure, the peak table is similar to the marker table. The
system would find out 6 maximum values after opening the peak table, rank
the 6 peaks according to frequency or amplitude, and show the
frequency/time and amplitude in the window below. The horizontal
position of the marker would change as the field, and track the 6 peaks
simultaneously.
78
Fig. 3-59 Search Condition
