6.2.1 Coverage Measurement

1. Measurement Status
Enter the route coverage measurement function when it is not turned on.
Click on the corresponding software to start/stop measuring.
2. Viewing Mode
There are two modes, satellite map and map. Press the button to switch
between two modes.
168

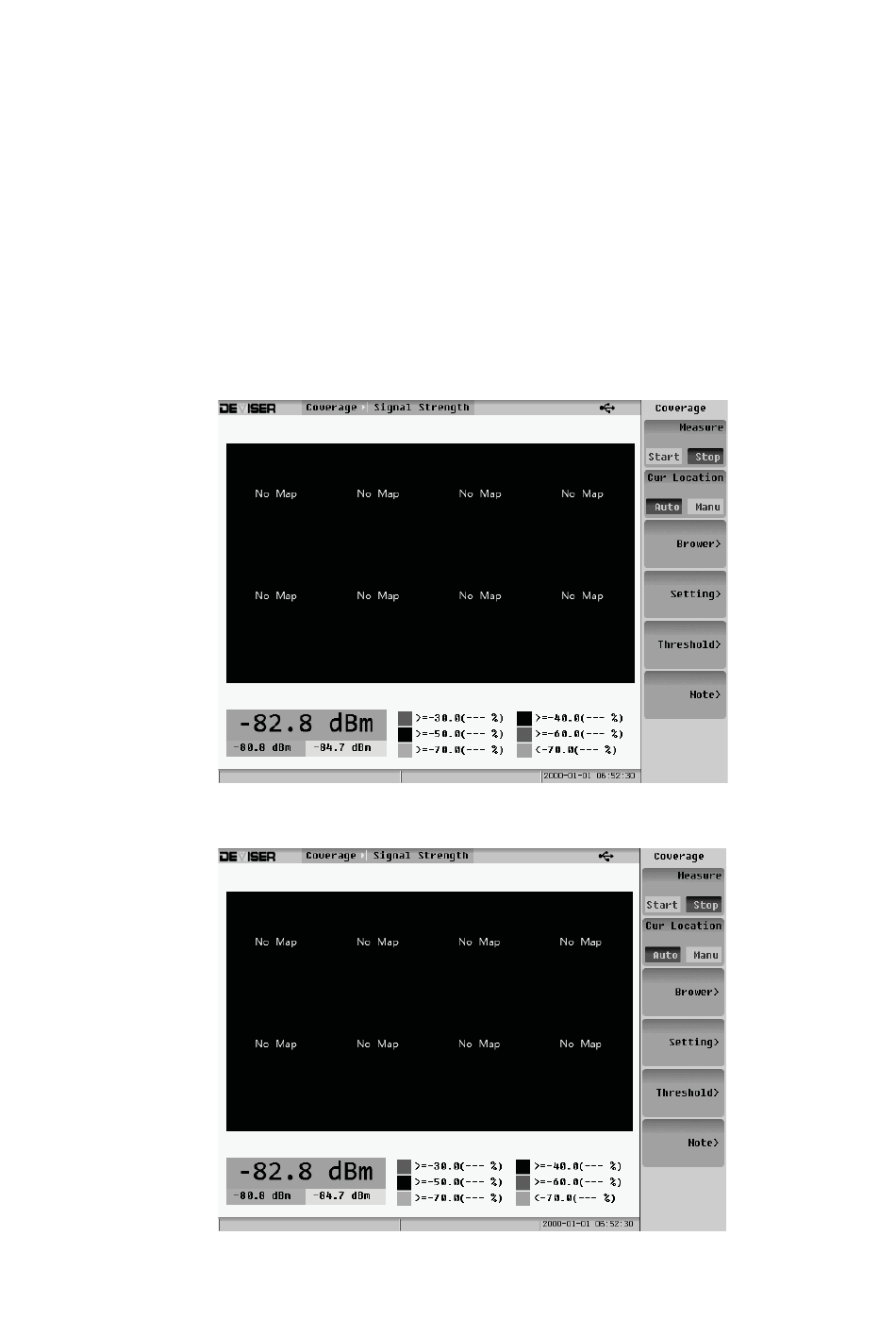

Fig. 6-14 Viewing Map
Fig. 6-15 Viewing Satellite Map
