(3) Scale/Div
The valid value of Scale/Div is integers from 1 to 40, and 9 number from 0.1
to 0.9. The default value is 10dB/grid. Decreasing the value, the waveform
will be amplified, and it is easy to observe the waveform details. The
following figure shows the result of 5dB/Div.

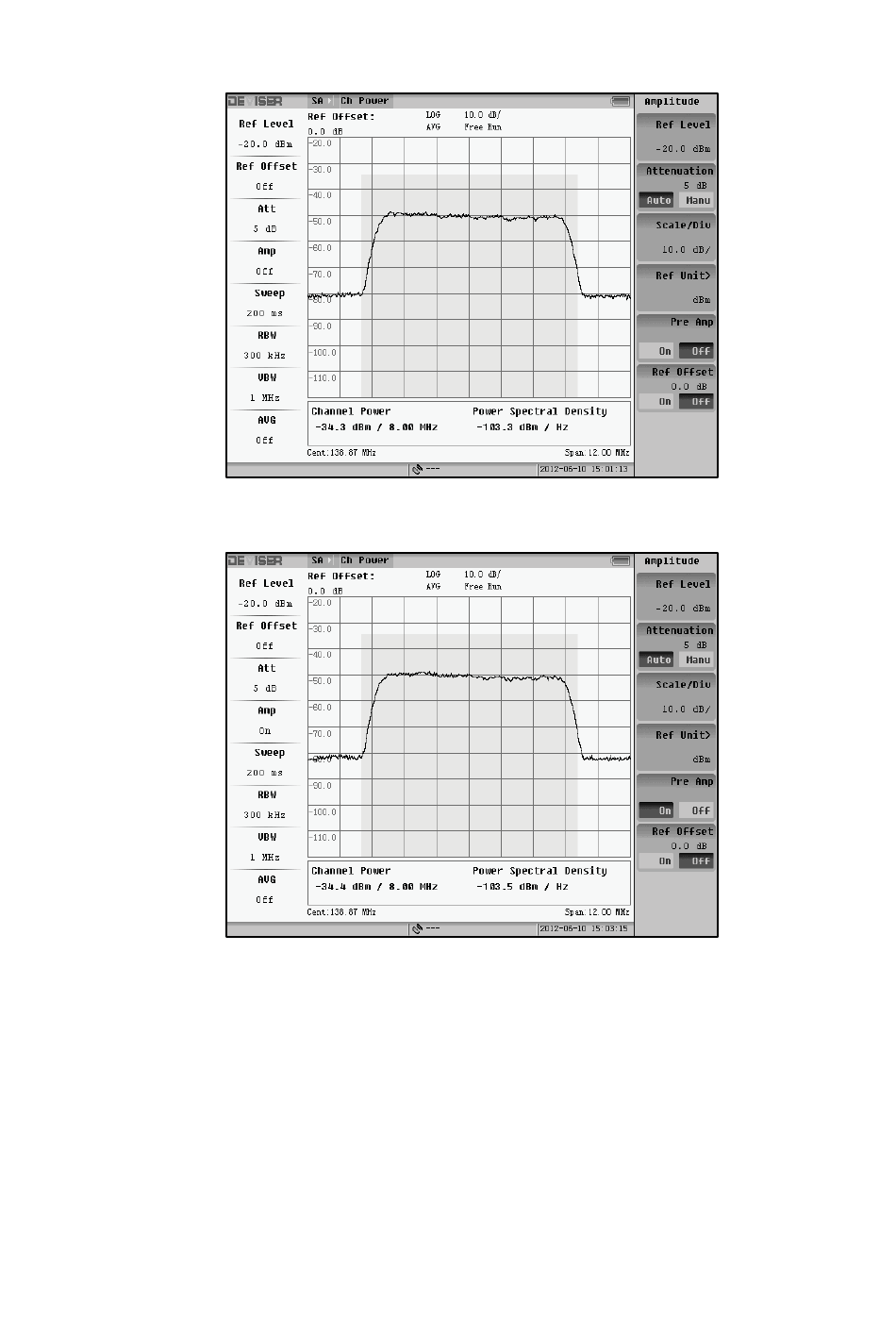

Fig. 3-68 Amplifier OFF
Fig. 3-69 Amplifier ON
