Tracking Source - ADInstruments AD8000 Series Instruction Manual

AD8000 Series Spectrum Analyzer Instruction
Manual

7 Tracking Source

After installing tracking source, transmission measurement could be done.
Select 'Tracking Source' in the menu to enter the following interface.
To use tracking source function, the RF OUT port must be connected to the
RF IN port.
After connection completes, turn on tracking source, and then press
'Tracking Source Amplitude' to change the output level with the number
keys or knob. The level range is 0dBm ~ 50dBm.
The operation normalized also needs to connect the RF IN and OUT. The
operation does not change the real output of the source, but only corrects
the data with the software that makes the wave a straight line. When
174

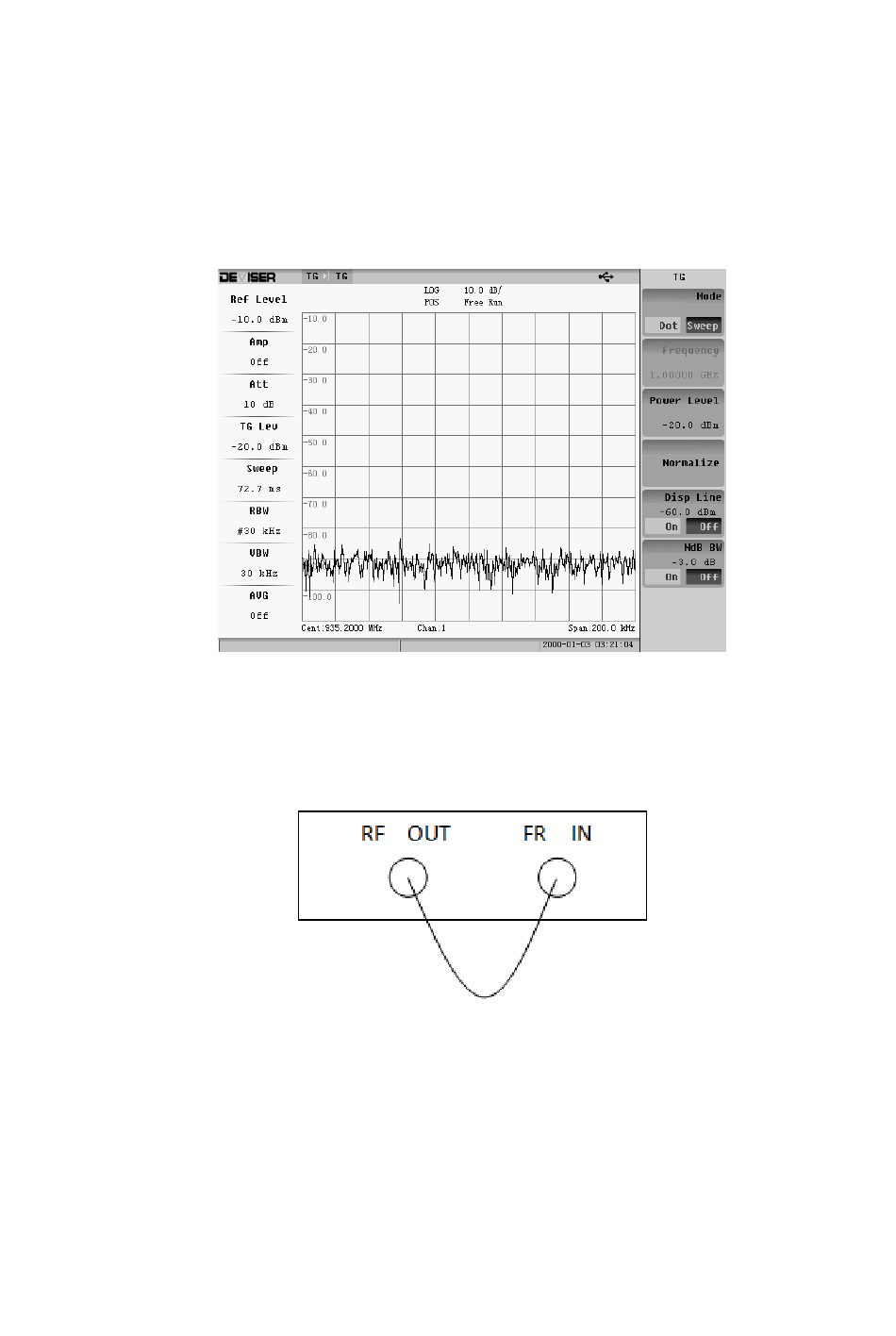

Fig. 7-1 Tracking Source Menu
Fig. 7-2 Tracking Source Connection Line
