AD8000 Series Spectrum Analyzer Instruction
Manual
1) Auto-Range
Select 'Auto-Range', and the color image of RB power would show.
2) Max. Value & Range
Select 'Max. Value' or 'Range' to set the parameter of RB power color
manually. Different RB power color image are available.
The RB grid at the left of the spectrum shows the color of each RB PDSCH.
The y-axis is frequency (subcarrier), and x-axis is time (subframe).
130

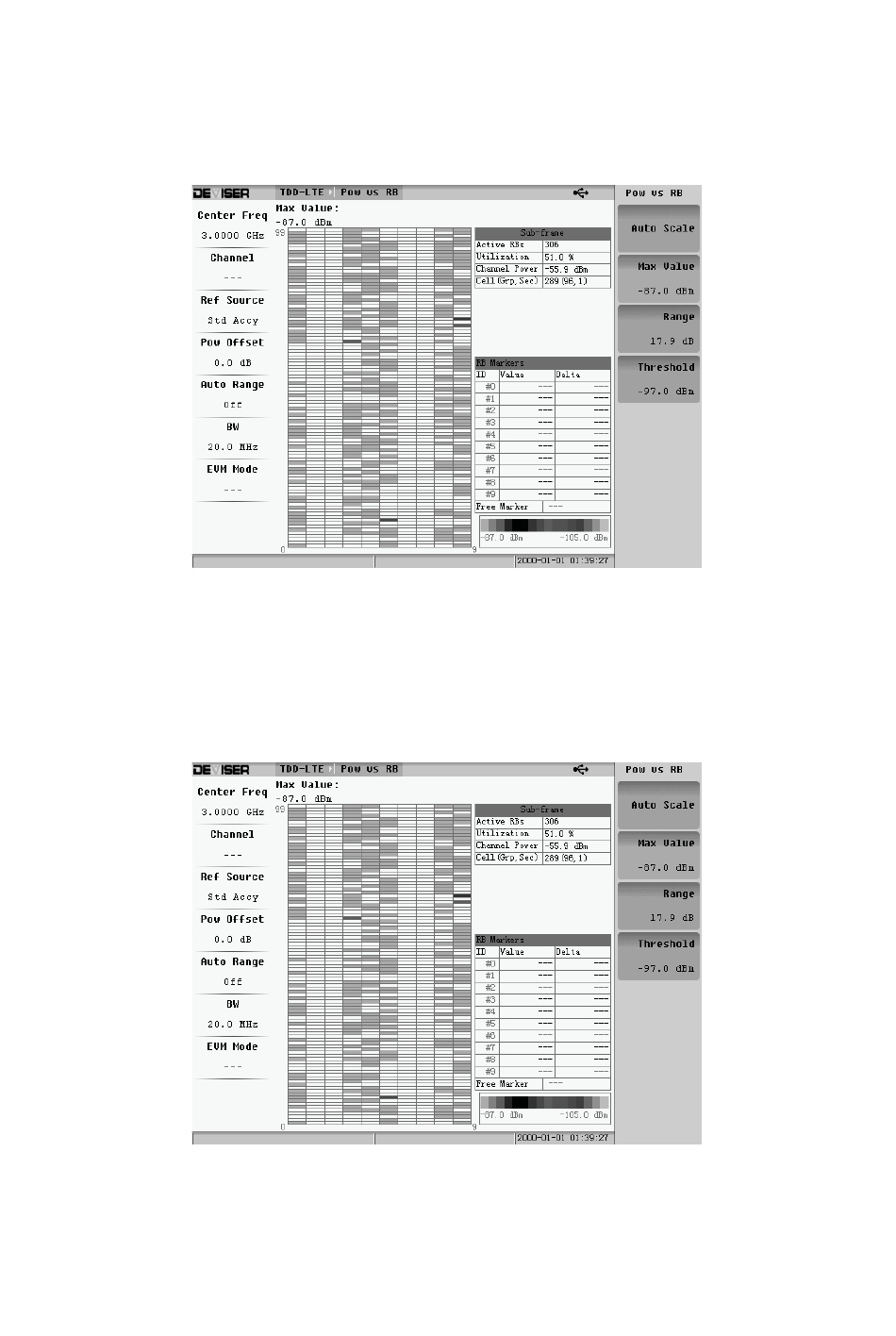

Fig. 5-4 Auto RB Power Color Image
Fig. 5-5 Set RB power color image manually
