3.24 Main Menu - Analog I/O Option MCB 109 - Group 26

The Analog I/O Option MCB 109 extends the functionality of VLT
number of additional, programmable analog inputs and outputs. This could be especially useful in building management
3 3
system installations where the Adjustable frequency drive may be used as decentral I/O, obviating the need for an
outstation and thus reducing cost.

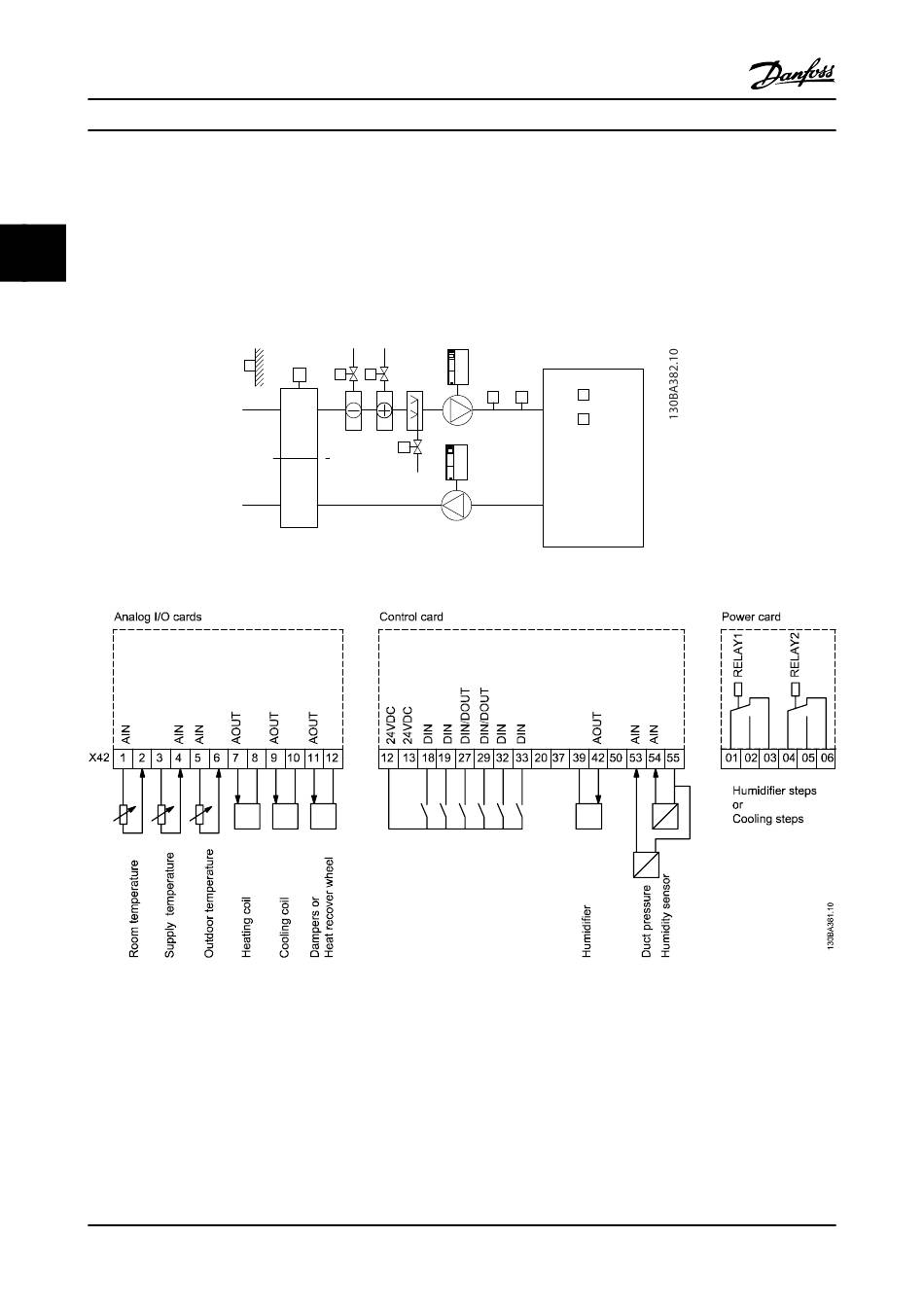

Consider the diagram
Figure 3.81
Figure 3.82
This shows a typical Air Handling Unit (AHU). As can be seen, the addition of the Analog I/O option offers the possibility to
control all of the functions from the Adjustable frequency drive, such as inlet, return and exhaust dampers or heating/
cooling coils with temperature and pressure measurements being read by the Adjustable frequency drive.
