3.18 Main Menu - Adjustable Frequency Drive Closed-loop - Group 20

This parameter group is used for configuring the closed-loop PID Controller that controls the output frequency of the
adjustable frequency drive.
3 3
3.18.1 20-0* Feedback
This parameter group is used to configure the feedback signal for the adjustable frequency drive's Closed-Loop PID
controller. Whether the Adjustable frequency drive is in closed-loop mode or open-loop mode, the feedback signals can also
be shown on the adjustable frequency drive's display, be used to control an adjustable frequency drive analog output, and
be transmitted over various serial communication protocols.

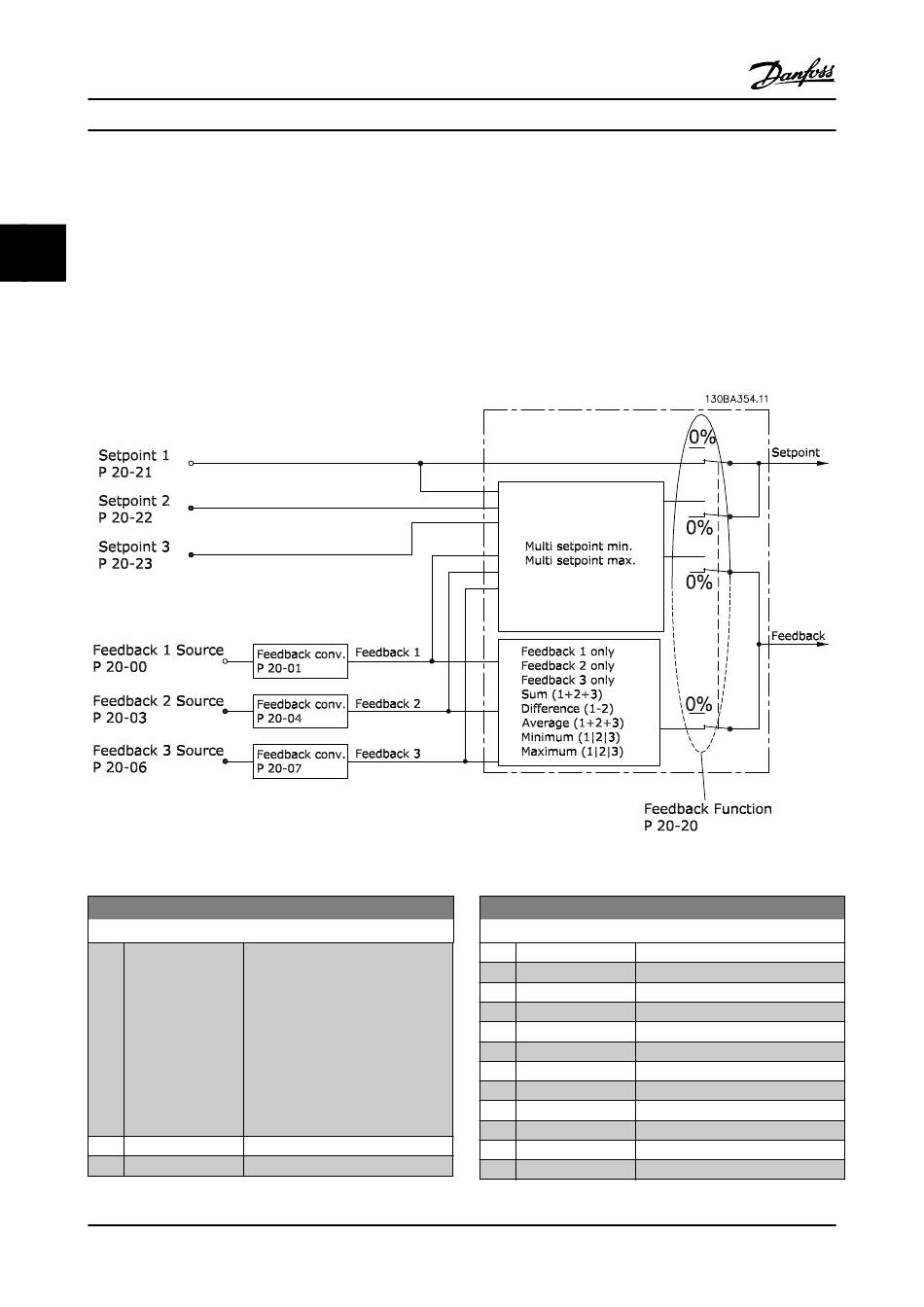

Figure 3.46
20-00 Feedback 1 Source
Option:
[0] No function
[1] Analog input 53
3-112
®
VLT HVAC Drive Programming Guide
Function:
Up to three different feedback
signals can be used to provide the
feedback signal for the adjustable
frequency drive's PID controller.
This parameter defines which input
will be used as the source of the
first feedback signal.
Analog input X30/11 and Analog
input X30/12 refer to inputs on the
optional General Purpose I/O board.
MG11CD22 - VLT
20-00 Feedback 1 Source
Option:
[2] Analog input 54
*
[3] Pulse input 29
[4] Pulse input 33
[7] Analog input X30/11
[8] Analog input X30/12
[9] Analog Input X42/1
[10] Analog Input X42/3
[11] Analog Input X42/5
[15] Analog Input X48/2
[100] Bus feedback 1
[101] Bus feedback 2
[102] Bus feedback 3
