How to Program
Select Main Menu by pressing the [Menu] key a number of
2 2
times until the Main Menu LED is lit.
Select the parameter group [xx-__] and press [OK]
Select the parameter [__-xx] and press [OK]
If the parameter is an array parameter, select the array
number and press [OK]
Select the wanted data value and press [OK]
Navigation Keys [Back] for stepping backwards
▼ ▲
Arrow [ ] [ ] keys are used for navigating between
parameter groups, parameters and within parameters.
[OK] is used for choosing a parameter marked by the
cursor and for enabling the change of a parameter.
P 2-03
Menu

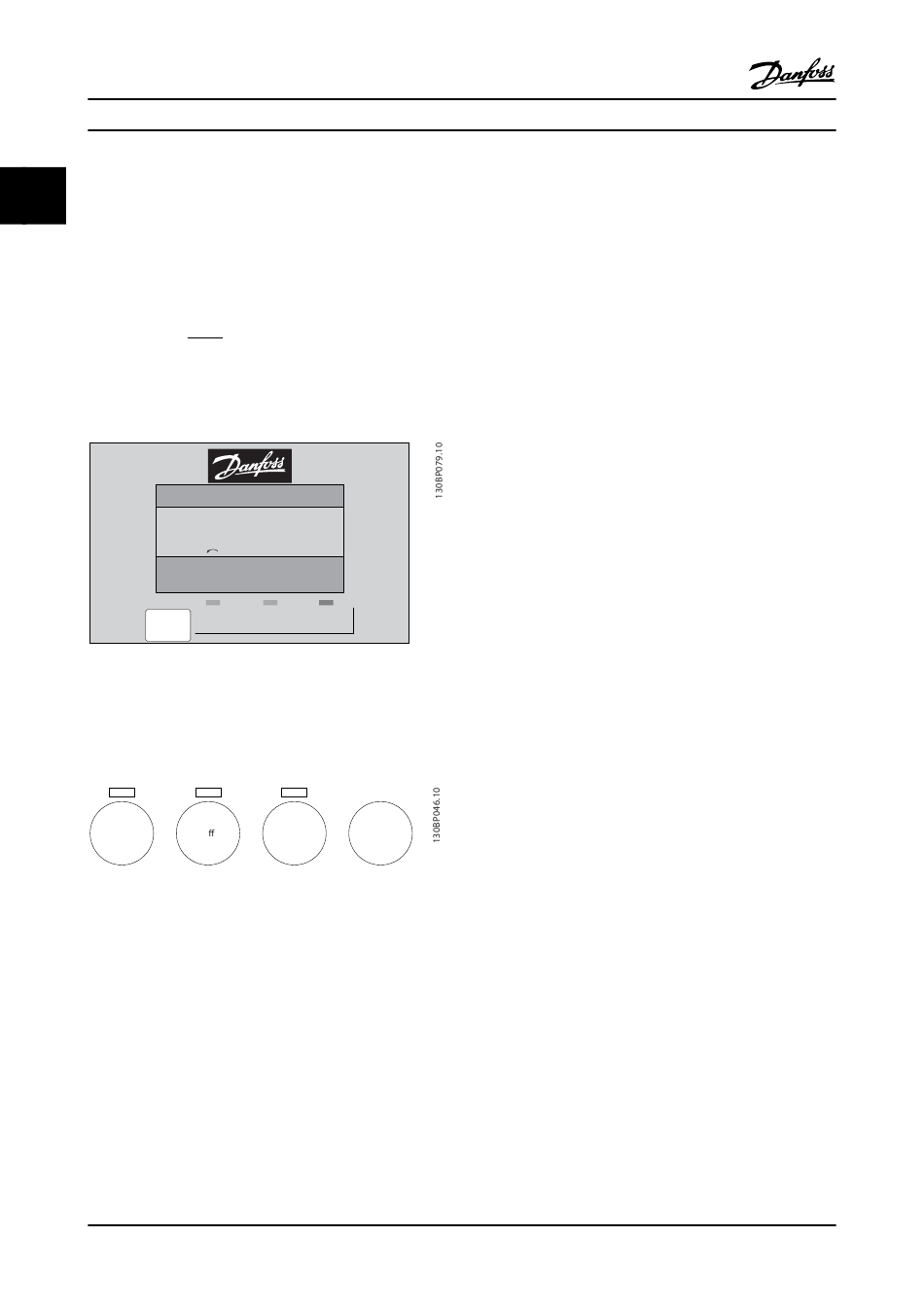

Figure 2.13
Operation Keys
Keys for local control are found at the bottom of the
control panel.
Hand
on
Figure 2.14 Operation keys of the numerical CP (NLCP)
[Hand On] enables control of the Adjustable frequency
drive via the LCP. [Hand on] also starts the motor and it is
now possible to enter the motor speed data by means of
the arrow keys. The key can be selected as Enable [1] or
Disable [0] via 0-40 [Hand on] Key on LCP.
External stop signals activated by means of control signals
or a serial bus will override a 'start' command via the LCP.
The following control signals will still be active when
[Hand on] is activated:
2-6
®
VLT
Setup 1
Status Quick Main
Setup Menu
Auto
O Reset
on
MG11CD22 - VLT
HVAC Drive Programming Guide
•
[Hand on] - [Off] - [Auto on]
•
Reset
•
Coasting stop inverse
•
Reversing
•
Set-up select lsb - Set-up select msb
•
Stop command from serial communication
•
Quick stop
•
DC brake
[Off] stops the connected motor. The key can be selected
as Enable [1] or Disable [0] via 0-41 [Off] Key on LCP.
If no external stop function is selected and the [Off] key is
inactive, the motor can be stopped by disconnecting the
line power supply.
[Auto On] enables the Adjustable frequency drive to be
controlled via the control terminals and/or serial communi-
cation. When a start signal is applied on the control
terminals and/or the bus, the Adjustable frequency drive
will start. The key can be selected as Enable [1] or Disable
[0] via 0-42 [Auto on] Key on LCP.
NOTE!
An active HAND-OFF-AUTO signal via the digital inputs has
higher priority than the control keys [Hand On] [Auto On].
[Reset] is used for resetting the Adjustable frequency drive
after an alarm (trip). It can be selected as Enable [1] or
Disable [0] via 0-43 [Reset] Key on LCP.
2.1.3 Quick Transfer of Parameter Settings
between Multiple Adjustable
Frequency Drives
Once the set-up of a Adjustable frequency drive is
complete, we recommend that you store the data in the
LCP or on a PC via MCT 10 Set-up Software Tool.
