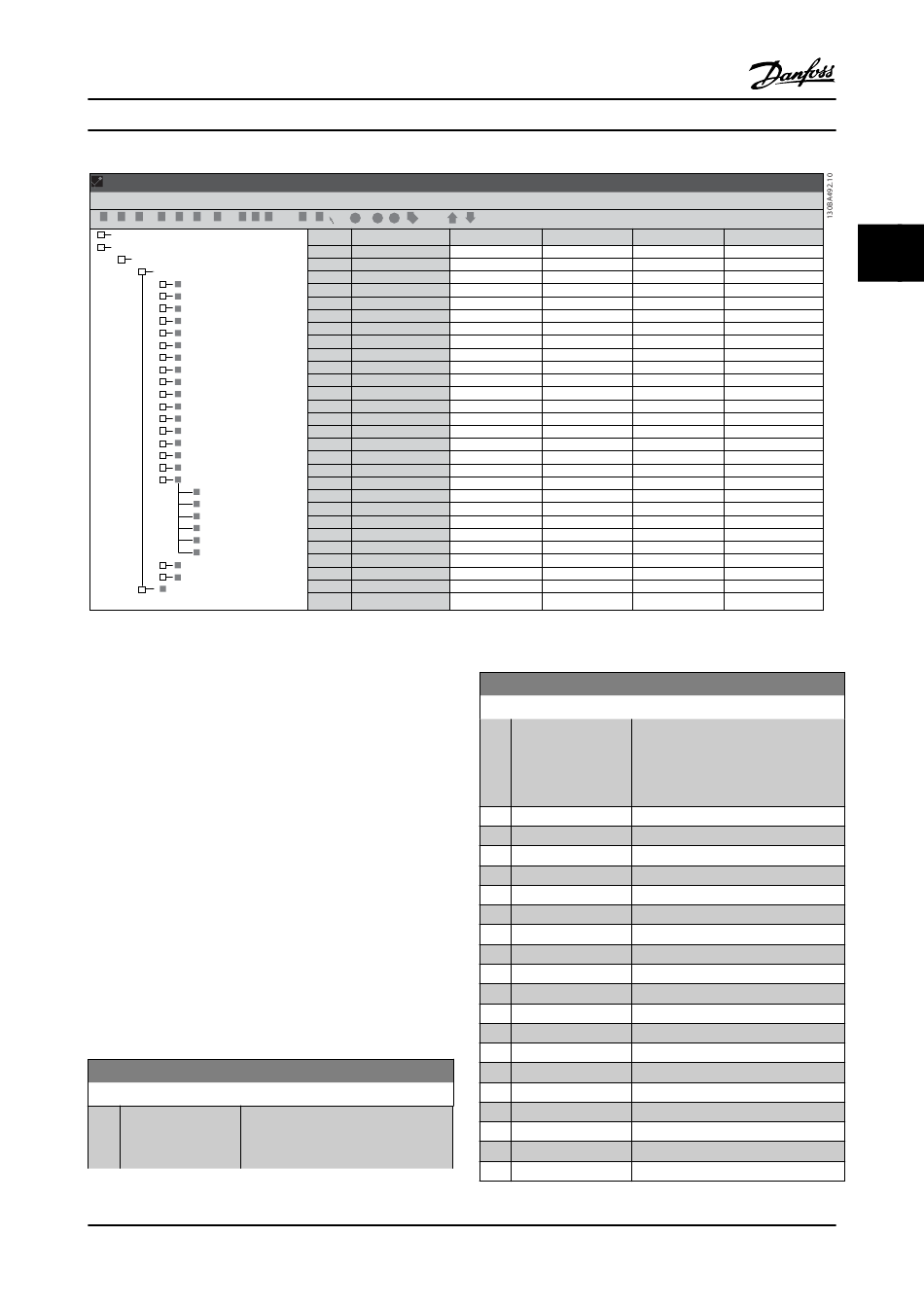

Figure 3.60
The LCP indicates (with a wrench-icon and an "M") when it
is time for a Preventive Maintenance Action, and can be
programmed to be indicated on a digital output in
parameter group 5-3*. The Preventive Maintenance Status
may be read in 16-96 Maintenance Word. A Preventive
Maintenance indication can be reset from a digital input,
the FC bus or manually from the LCP through 23-15 Reset
Maintenance Word.
A Maintenance Log with the latest 10 loggings can be read
from parameter group 18-0* and via the Alarm log button
on the LCP after selecting Maintenance Log.
NOTE!
The Preventive Maintenance Events are defined in a 20
element array. Hence each Preventive Maintenance Event
must use the same array element index in
23-10 Maintenance Item to 23-14 Maintenance Date and
Time.
23-10 Maintenance Item
Option: Function:
Array with 20 elements displayed
below parameter number in the
display. Press [OK] and step between
®
VLT HVAC Drive Programming Guide
Tools Options Help
ID Name Setup 1
2310.0 Maintenance Item Motor bearings
2310.1 Maintenance Item Motor bearings
2310.2 Maintenance Item Motor bearings
2310.3 Maintenance Item Motor bearings
2310.4 Maintenance Item Motor bearings
2310.5 Maintenance Item Motor bearings
2310.6 Maintenance Item Motor bearings
2310.7 Maintenance Item Motor bearings
2310.8 Maintenance Item Motor bearings
2310.9 Maintenance Item Motor bearings
2310.10 Maintenance Item Motor bearings
2310.11 Maintenance Item Motor bearings
2310.12 Maintenance Item Motor bearings
2310.13 Maintenance Item Motor bearings
2310.14 Maintenance Item Motor bearings
2310.15 Maintenance Item Motor bearings
2310.16 Maintenance Item Motor bearings
2310.17 Maintenance Item Motor bearings
2310.18 Maintenance Item Motor bearings
2310.19 Maintenance Item Motor bearings
2311.0 Maintenance Action Lubricate
2311.2 Maintenance Action Lubricate
2311.3 Maintenance Action Lubricate
2311.4 Maintenance Action Lubricate
2311.5 Maintenance Action Lubricate
2311.6 Maintenance Action Lubricate
MG11CD22 - VLT ® is a registered Danfoss trademark
Setup 2 Setup 3
Motor bearings Motor bearings
Motor bearings Motor bearings
Motor bearings Motor bearings
Motor bearings Motor bearings
Motor bearings Motor bearings
Motor bearings Motor bearings
Motor bearings Motor bearings
Motor bearings Motor bearings
Motor bearings Motor bearings
Motor bearings Motor bearings
Motor bearings Motor bearings
Motor bearings Motor bearings
Motor bearings Motor bearings
Motor bearings Motor bearings
Motor bearings Motor bearings
Motor bearings Motor bearings
Motor bearings Motor bearings
Motor bearings Motor bearings
Motor bearings Motor bearings
Motor bearings Motor bearings
Lubricate Lubricates
Lubricate Lubricates
Lubricate Lubricates
Lubricate Lubricates
Lubricate Lubricates
Lubricate Lubricates
23-10 Maintenance Item
Option: Function:
elements by means of and buttons
on the LCP.
Select the item to be associated with
the preventive maintenance event.
[1] Motor bearings
*
[2] Fan bearings
[3] Pump bearings
[4] Valve
[5] Pressure transmitter
[6] Flow transmitter
[7] Temperature transm.
[8] Pump seals
[9] Fan belt
[10] Filter
[11] Drive cooling fan
[12] System health check
[13] Warranty
[20] Maintenance Text 0
[21] Maintenance Text 1
[22] Maintenance Text 2
[23] Maintenance Text 3
[24] Maintenance Text 4
[25] Maintenance Text 5
