12.3 Trendelenburg position

12.4 Armrests

User's manual

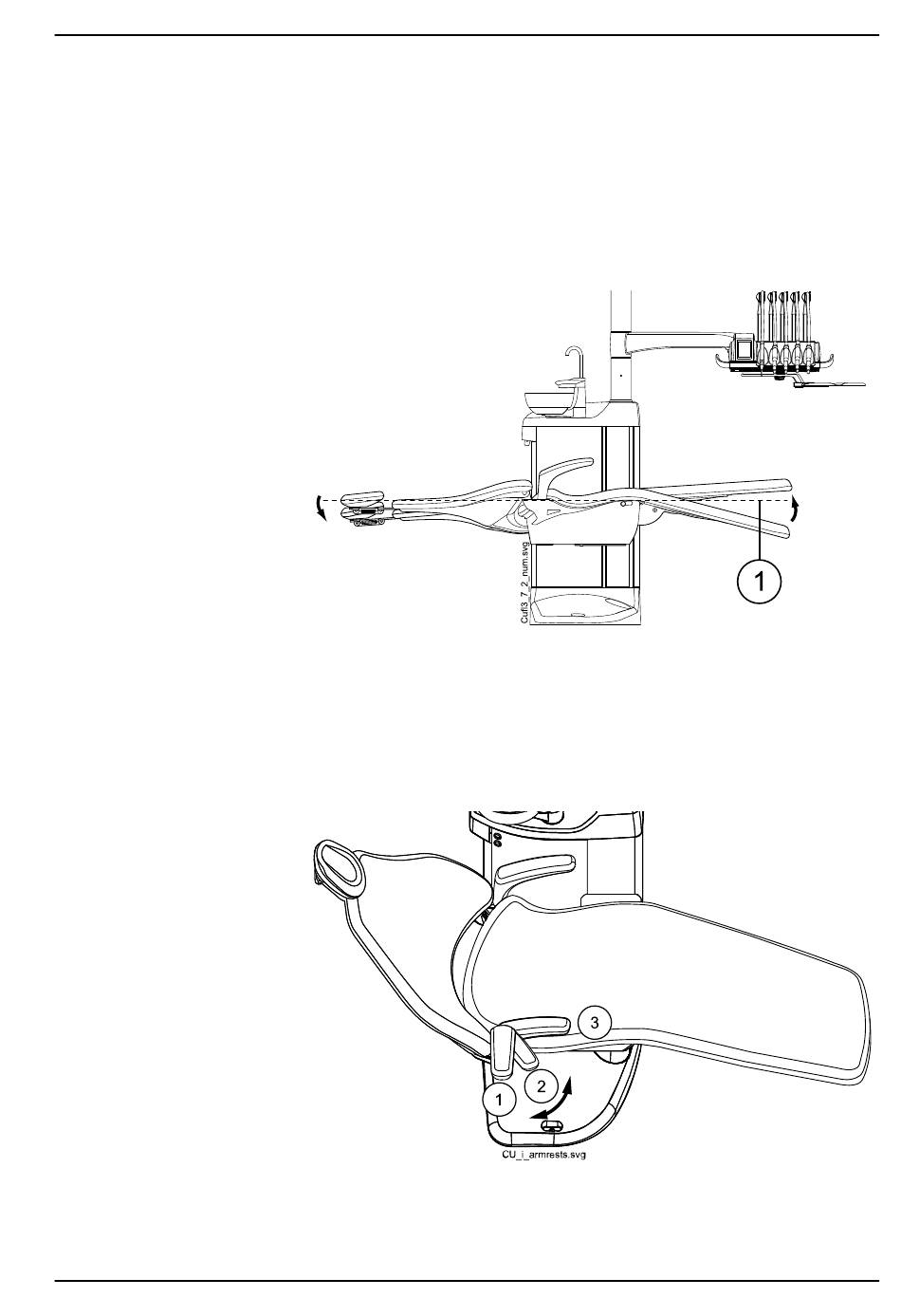

If required, the patient chair can be inclined from the horizontal position to
the Trendelenburg position. In the Trendelenburg position the legrest is in
the horizontal position and the backrest is driven -4° from the horizontal
position.
To drive the patient chair to the Trendelenburg position, first drive the chair
to horizontal position, lock the legrest manually by moving the lever
underneath the legrest to the left, and press the Backrest down button until
the backrest reaches a position of -4°.
1. Horizontal position
The right armrest can be moved 90° outwards. Before you move the armrest
horizontally you must lift it slightly to unlock it. The armrest can be locked
into the positions 1 and 3 presented below. The armrest can be removed
when it is in position 2.
12 Patient chair
Planmeca Compact i 65
