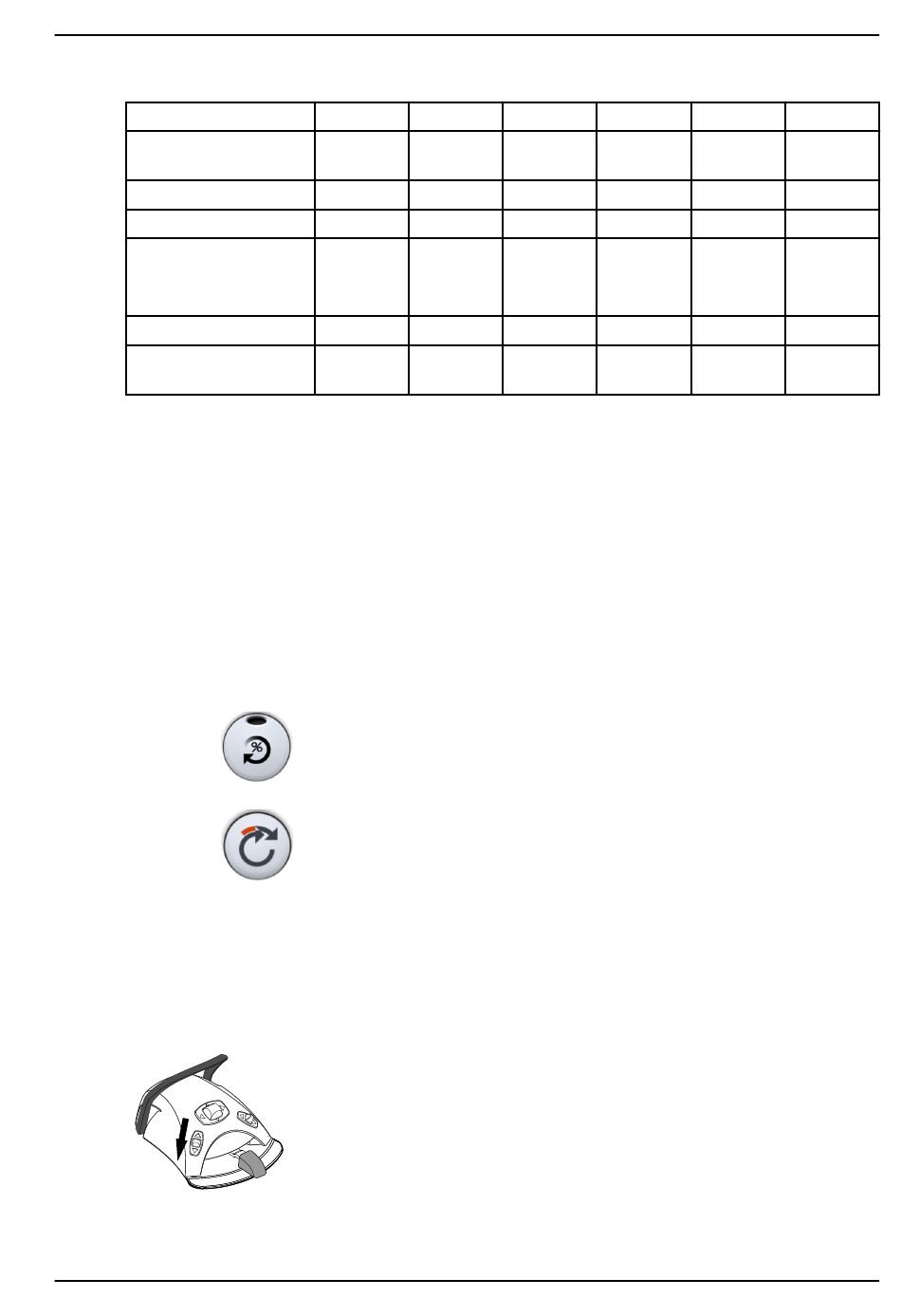

RPM and torque settings for different presets
Function
Drive mode
RPM limit

Torque %

Instrument spray
Automatic chip blow
Instrument light
brightness

23.5 Morita TORX micromotor

23.5.1 Torque
User's manual
Preset 1 Preset 2
Auto Auto
forward reverse
260 260
30 30
Off Off
Off Off
100 100
CAUTION
The user must be familiar with endodontic procedures before using the
Morita TORX micromotor.
When coupled with the CA-10RC-ENDO 10:1 handpiece, the Morita TORX
micromotor can be used together with the Morita Root ZX mini U apex
locator to measure the root canal.
Besides the basic micromotor functions, the Morita TORX micromotor has
some additional features. These are described below.
Press Torque to enable the torque function. The green indicator light means
that torque is enabled.
When torque is enabled, also the drive mode Autoforward is enabled. When
the torque limit is reached, the micromotor will rotate counter-clockwise
(reverse) until the torque value has decreased to 50% of the torque limit
value and then return to clockwise rotation.
NOTE
Only the drive mode Autoforward is available for the Morita TORX
micromotor.
NOTE
The foot control can be configured so that you push the left-side knob down
to enable/disable the torque function. Contact your Planmeca dealer.
NOTE
Check the indicator light on the control panel to verify that pushing the left-
side knob down activates the correct function.
Preset 3 Preset 4
Auto stop N/A
900 2 000
50 N/A
Off Air 70%
Water
40%
Off Off
100 100
Planmeca Compact i
23 Operating instruments
Preset 5 Preset 6
N/A N/A
5 000 40 000
N/A N/A
Air 70% Air 70%
Water Water
40% 40%
Off Off
100 100
