8 Planmeca Compact i dental unit

8 Planmeca Compact i dental unit

8.1 Unit configuration

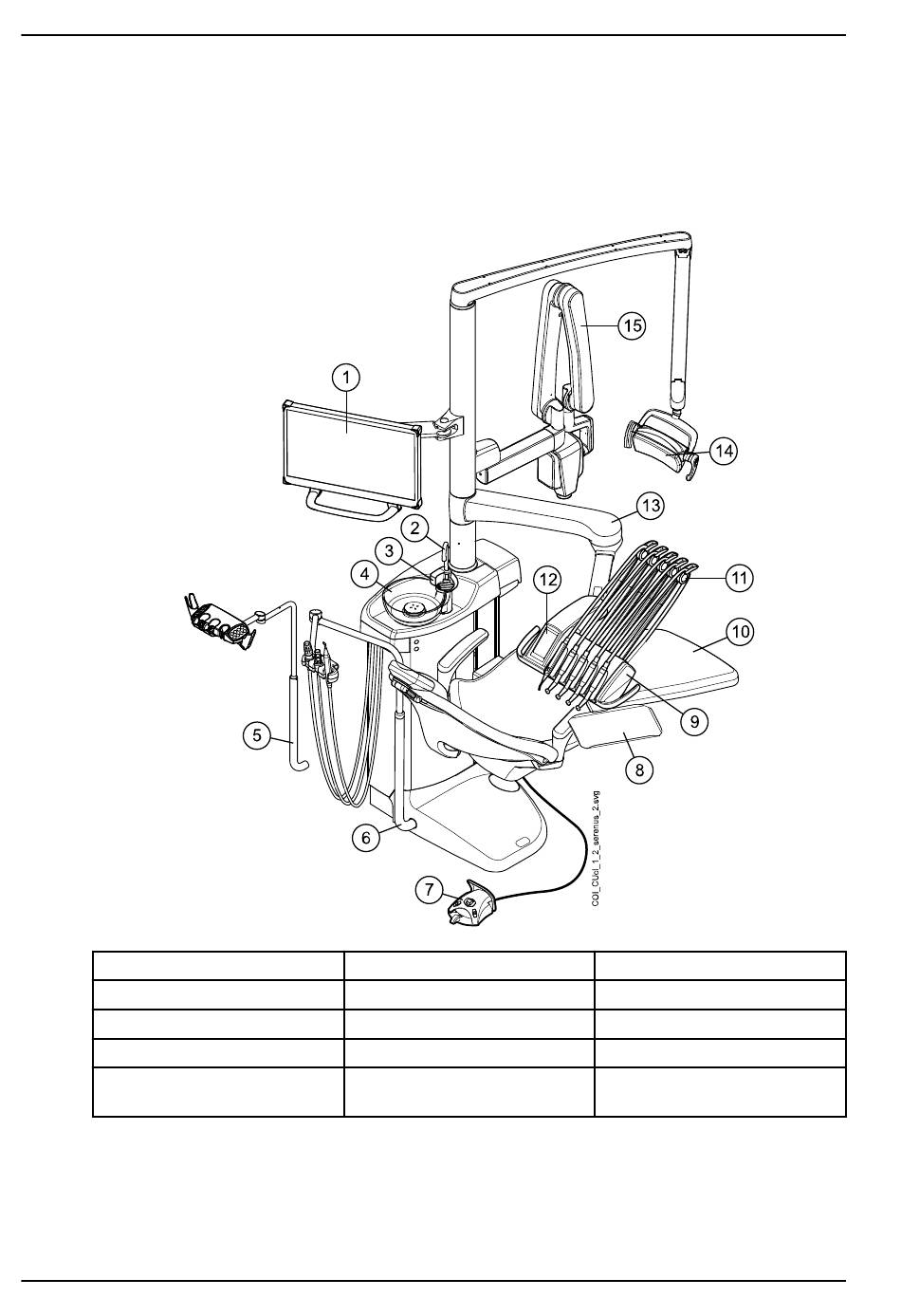

8.1.1 Over-the-patient delivery with balanced instrument arms

1. Monitor
2. Cup fill tube
3. Bowl rinse tube
4. Bowl
5. Adjustable suction arm with
Flexy-holder
16 Planmeca Compact i
6. Adjustable suction arm
7. Foot control
8. Tray
9. Instrument console
10. Patient chair
This type of dental unit configuration has the option of a shorter OP delivery
arm (340 mm). The shortened console arm (1) allows easy access to the
patient chair if the instrument console is placed on the assistant's side during
patient change. The shortened console arm is especially well suited for
dental units without bowl.
11. Balanced instrument arms
12. Control panel
13. OP delivery arm 520 mm
14. Operating light
15. ProX X-ray unit
