21 Operating motorised headrest

21.1 Normal mode

21.1.1 Joystick

21.1.2 Foot control

108 Planmeca Compact i
If the headrest is in the tilt mode, press the joystick briefly to change the
headrest mode from tilt mode to normal mode.

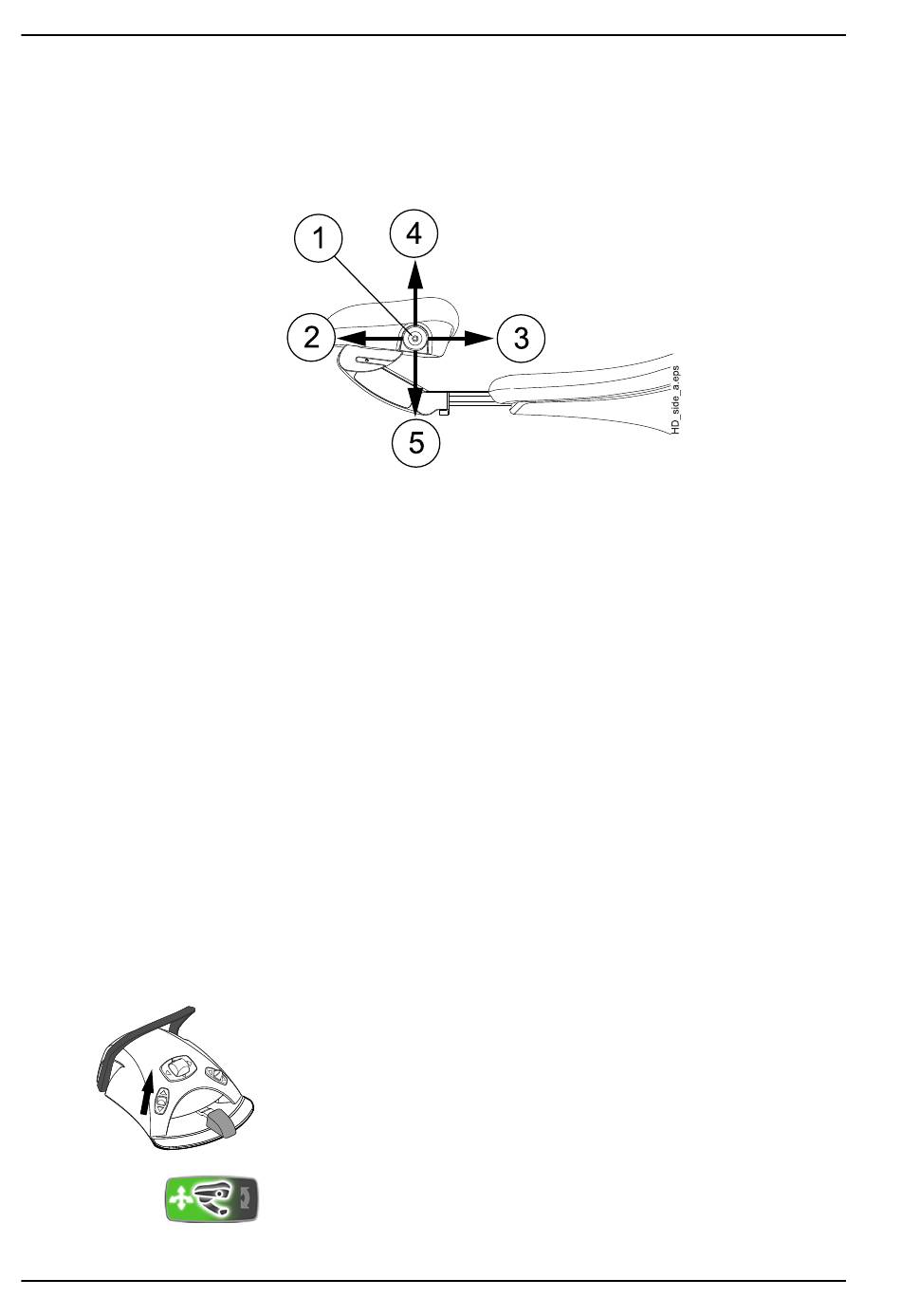

1. Joystick
2. Lengthen
Push the joystick away from the backrest to drive the headrest away
from the backrest.
3. Shorten
Push the joystick toward the backrest to drive the headrest toward the
backrest.
4. Headrest up
Push the joystick up to drive the headrest up in accordance with the
movement of the anatomical tilt.
5. Headrest down
Push the joystick down to drive the headrest down in accordance with
the movement of the anatomical tilt.
The movement continues for as long as the joystick is pushed.
The foot control's centre knob is normally used for driving the backrest and
seat (chair mode). However, once you have activated the headrest's normal
mode with the foot control, you can use the centre knob to move and
operate the headrest.
To activate the normal mode, briefly push the left-side knob up (factory
default).
The partially green headrest symbol on the control panel indicates that the
normal mode has been activated.
User's manual
