10.4.8 Apical action
10.5 Tray tables
10.5.1 Quick-connect tray table
User's manual
137 (Bien-Air MCX), "Torque" on page 139 (Bien-Air MX2) and "Torque" on
page 141 (Morita TORX).
For the Bien-Air MX2 micromotor you can program the drive mode, that is,
the instrument function when the torque limit is reached, see section
"Modifying preset values" on page 180. The drive mode for the Bien-Air MCX
and Morita TORX micromotors can not be programmed.
For the Morita TORX micromotor you can program the apical action, that is,
what happens when the file tip reaches a certain point in the root canal. For
instructions, see section "Apical action" on page 142.
The quick-connect tray table is available for the instrument console with
balanced instrument arms.
The tray table is attached to the mounting arm with a magnetic connector
and can easily be attached and detached. You can rotate the table 360° to
the desired position. The maximum load on the quick-connect tray is 2
kilograms (4.4 lbs).

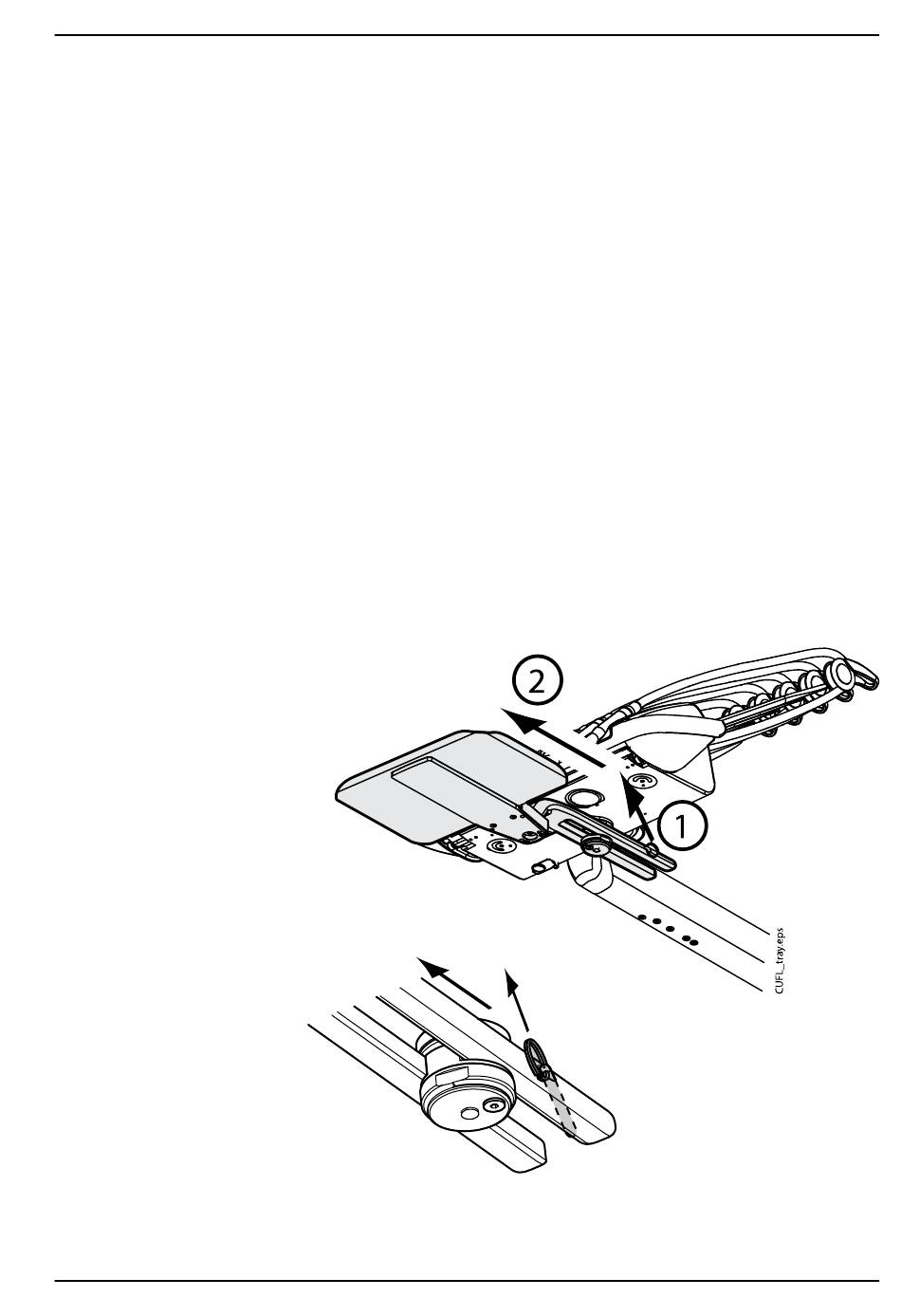

The tray mounting arm is attached to the instrument console with a quick-
connector. To remove the tray assembly from the instrument console, pull
the ring of the locking mechanism outwards (1) and then pull the tray arm
away from its position (2).
10 Instrument system
Planmeca Compact i
43
