10 Instrument system

10.5.6 Column tray

10.5.7 Over-the-patient (OP) tray

46 Planmeca Compact i

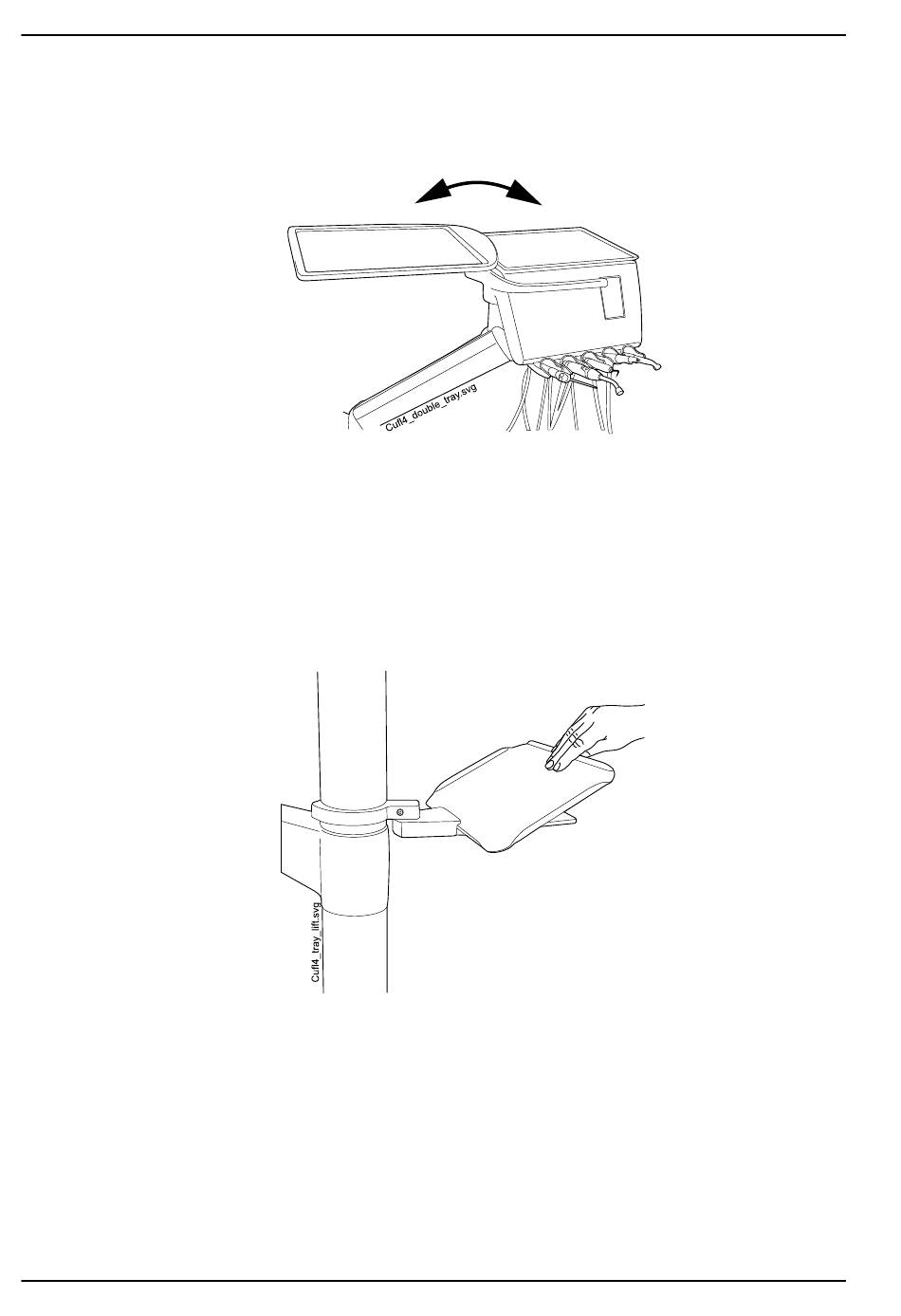

The top tray table is attached to the instrument console with a quick-
connector, enabling an easy attachment and detachment of the tray table
(see picture in section "Top tray table" on page 44.)
The rotating tray table can be rotated 180° to the desired position.
The column tray is available for all dental units with a column. In OP
deliveries the mounting arm is attached to the column above the OP delivery
arm.
The tray table is attached to the mounting arm with a magnetic connector
and can easily be attached and detached. You can rotate the table 180° to
the desired position. The maximum load on the quick-connect tray is 2
kilograms (4.4 lbs).
A tray table for surgical purposes is available for side-deliveries and for the
mobile cart. The OP tray can be mounted on an OP delivery arm, which in its
turn is mounted on the pylon.
