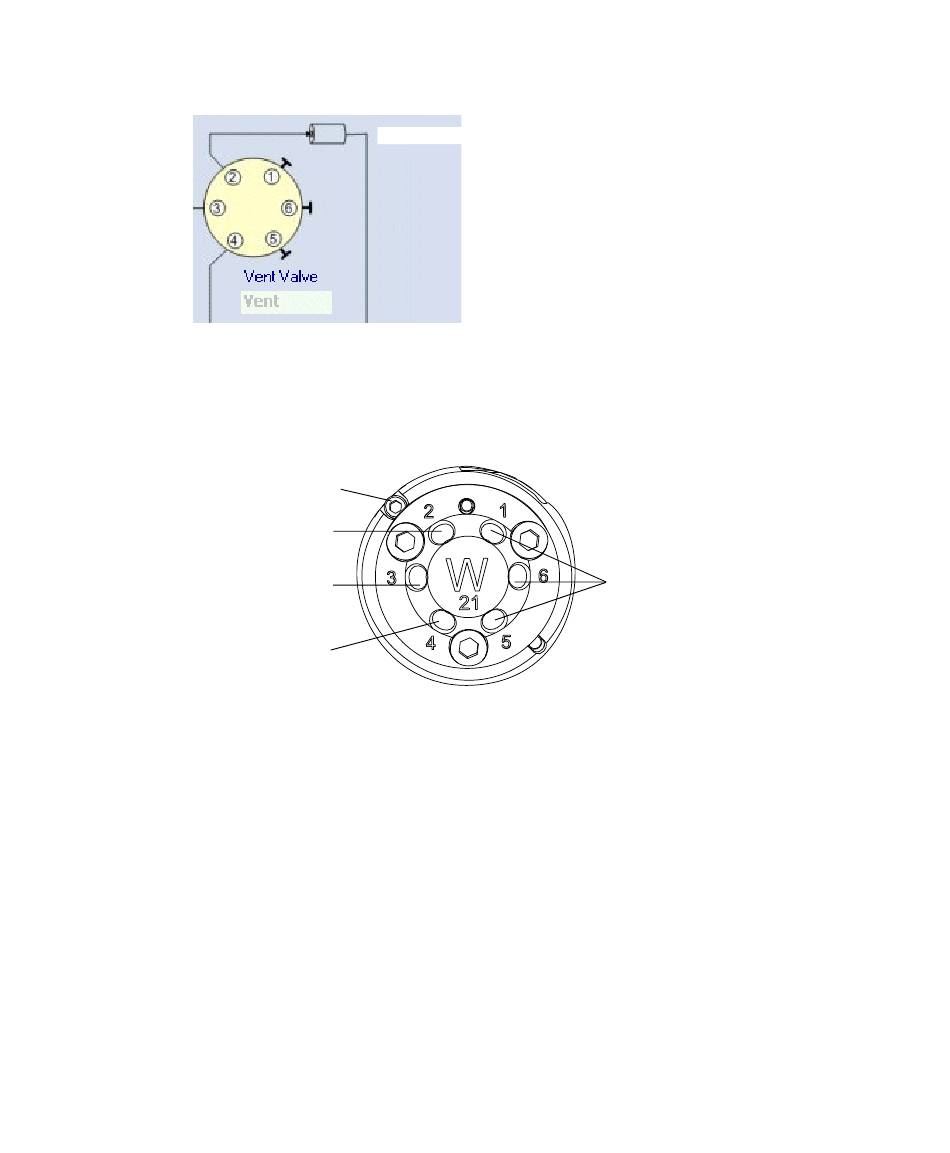

Interactive display showing vent-valve setting:
5.
Use the 1/4-inch wrench to remove the fittings attached to the
vent-valve cartridge.
Vent-valve cartridge:
Hex screw in
10 o'clock position
Outlet to filter
From accumulator
Vent to waste
6.
Use the 2-mm Allen wrench to remove the hex screw at the 10 o'clock
position on the vent-valve cartridge.
7.
Remove the vent-valve cartridge from the vent-valve assembly by
pulling straight forward. Observe the orientation of the vent-valve
cartridge when doing so.
8.
Unpack the replacement vent-valve cartridge.
9.
Ensure that the groove in the cartridge housing aligns with the groove
on the drive clamp.
If the grooves fail to align, turn the drive clamp until they align.
Tip:
Filter
September 26, 2013, 715004208 Rev. A
Replacing the vent-valve cartridge
Plugged
97
