1 ACQUITY Isocratic Solvent Manager
Flow path through the ISM with an installed Flow-splitter
or Post-column Addition kit
The following diagrams show the flow path through the ISM with an installed
Flow-splitter or Post-column Addition kit.

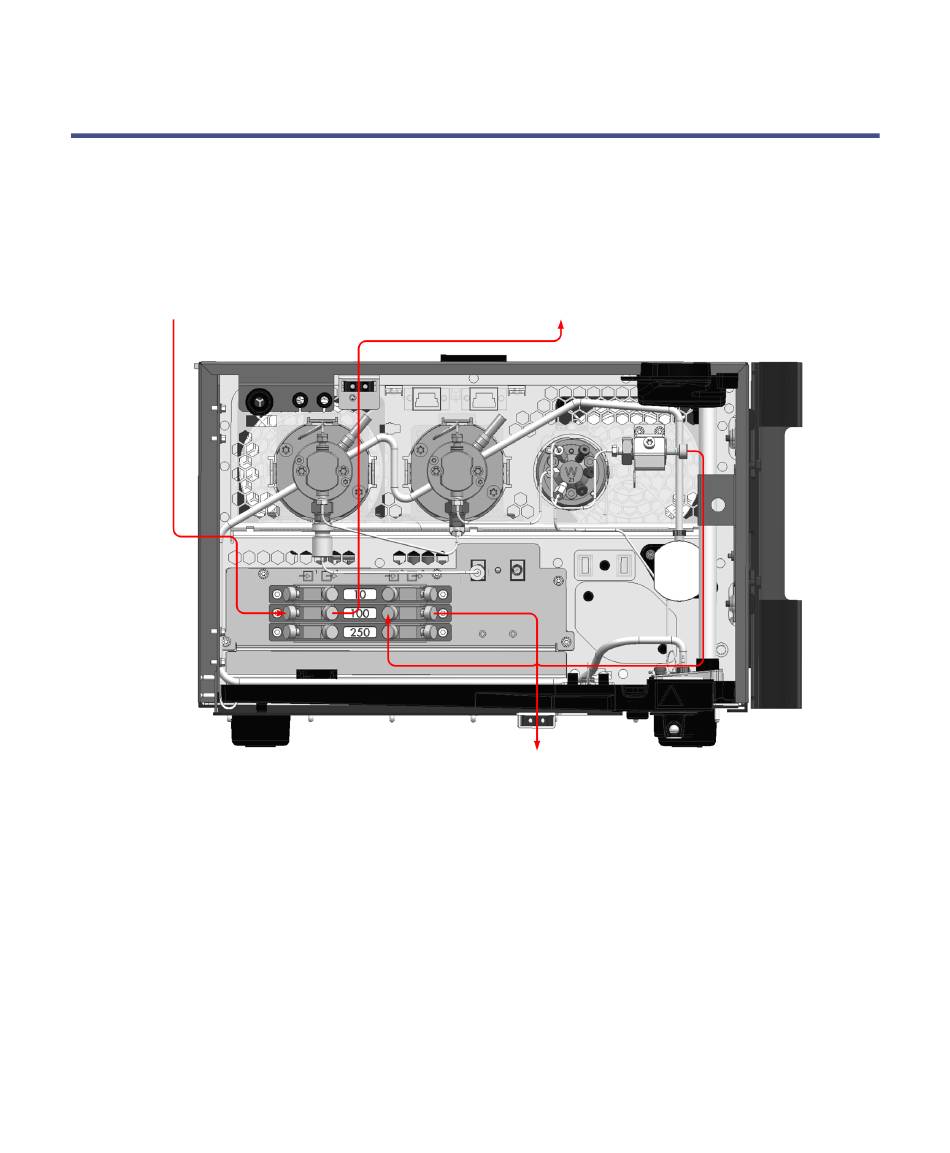

Flow through the ISM with an installed ACQUITY UPLC or Alliance
Flow-splitter kit:
Column
The splitter is configured with one of the three restrictor modules.
Note:
Solvent flows through the ISM with an installed ACQUITY UPLC or Alliance
Flow-splitter kit as follows:
1. Solvent is degassed through the in-line vacuum degasser.
2. The solvent is filtered before entering the primary check valve.
3. The filtered solvent flows through the primary check valve and into the
piston chamber of the primary piston, then through the accumulator,
the vent valve, and the inline 22-µL filter.
22 September 26, 2013, 715004208 Rev. A
Optical detector
QDa detector
