Flow LED indications:
LED mode and color
Unlit
Steady green
Flashing green
Flashing red
Steady red

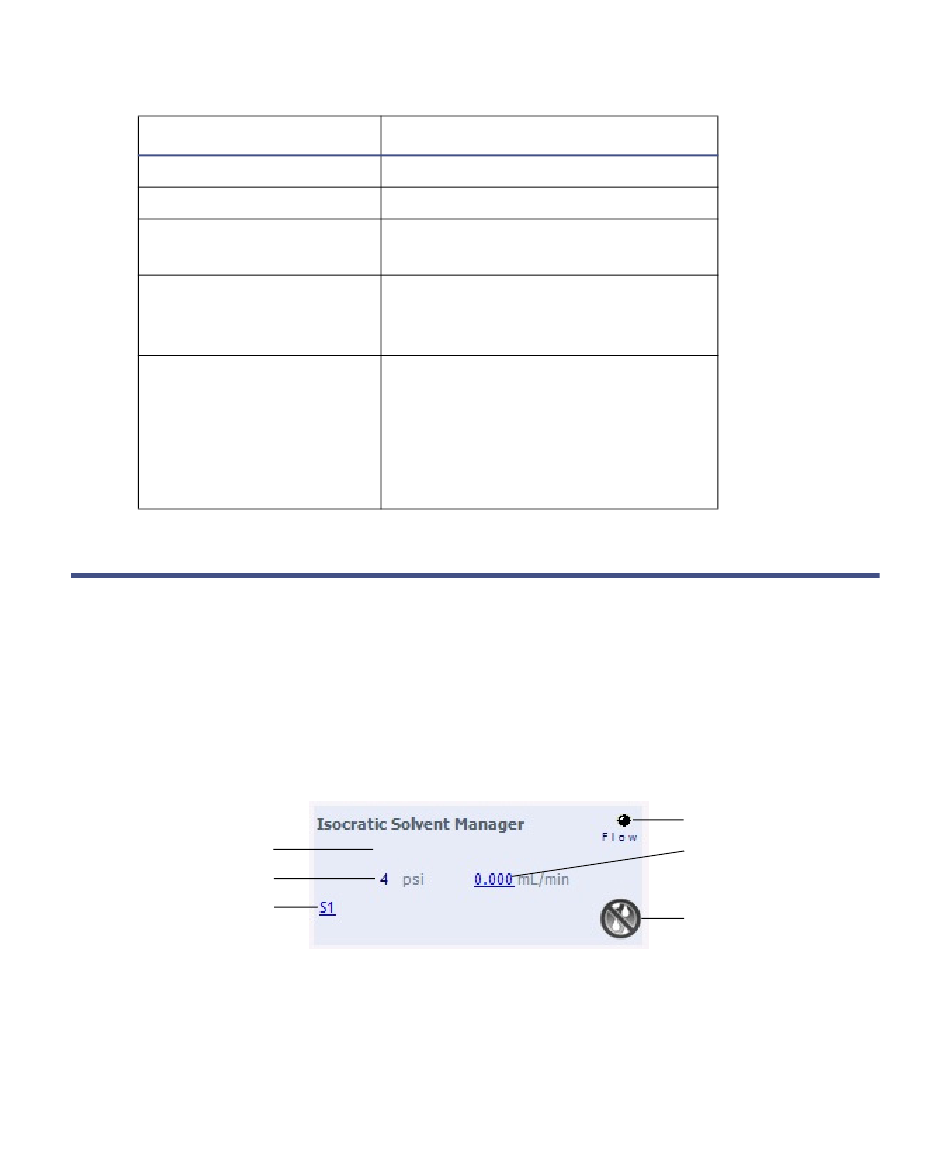

ISM control panel

The control panel of the ISM displays flow status, system pressure and total
flow rate.
You can edit these settings when the system is idle by clicking on the
Rule:
underlined value. You cannot edit ISM settings while the system is running
samples.

ISM control panel:

Location of status
System pressure
Currently selected
solvent
Description
ISM is idle.
Solvent is flowing.
Initializing and preparing for
normal operation.
Error state. Refer to the
instrument console for
information about the error.
Indicates a failure of the ISM that
prevents its further operation.
Power-off the module, and then
restart it. If the LED is still
steady red, contact your Waters
service representative.
September 26, 2013, 715004208 Rev. A
ISM control panel
Flow LED
Flow rate
Stop flow
