To remove the primary plunger seals:
1.
Stand the head upright on a clean surface.
2.
Using the T27 TORX driver, completely loosen the two head bolts to
release the support plate from the pump head.
Requirement:
reuse the head bolt washers when reassembling the pump head.
3.
Lift the pump head from the support plate.

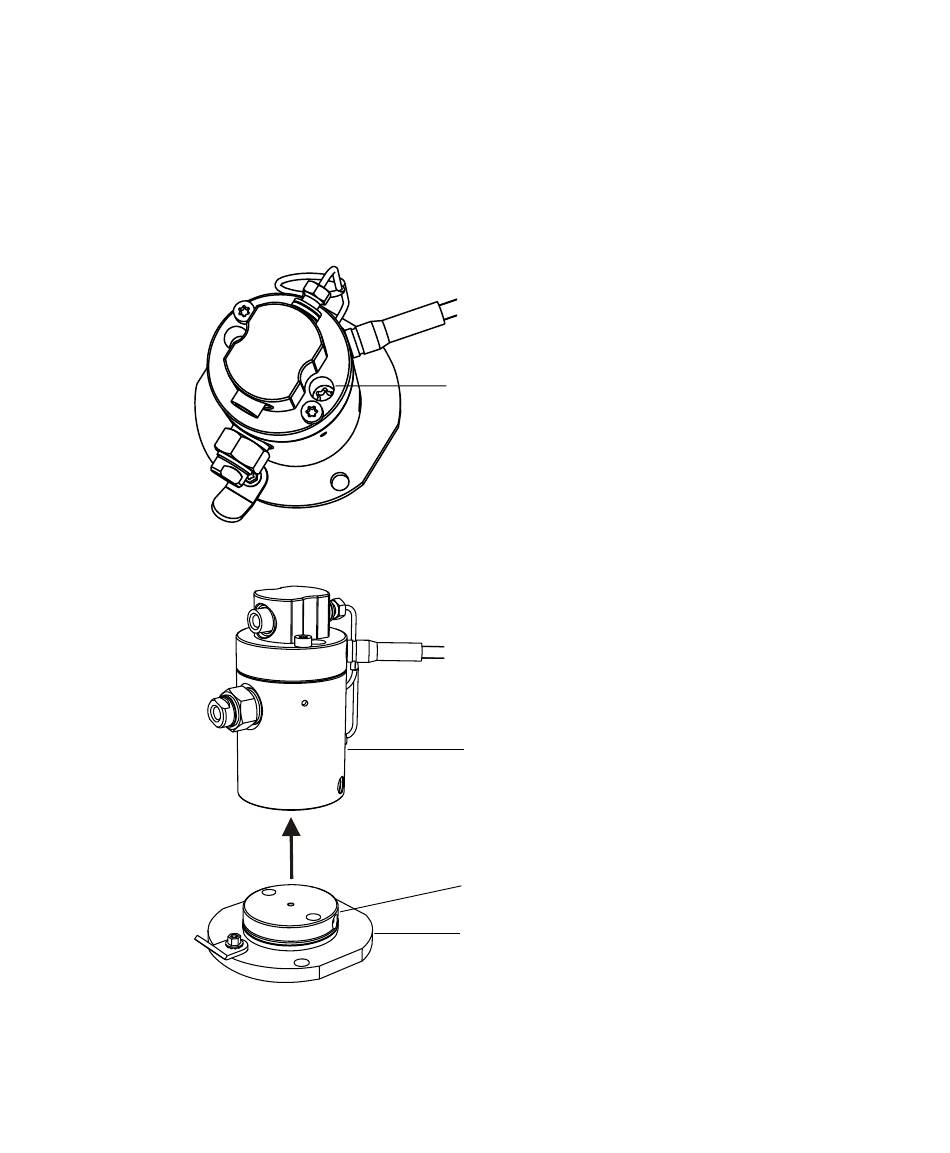

Removing the primary head and replacing its seals
If you remove the transducer and head bolts, be sure to
Head bolt (2)
Pump head
Seal wash housing
Support plate
