3 Maintenance Procedures
6. Put the cap nut over the end of the tube (see the figure following
7. Slide the metal locking ring onto the tube, ensuring that the thicker end
of the metal locking ring is facing toward the cap nut.

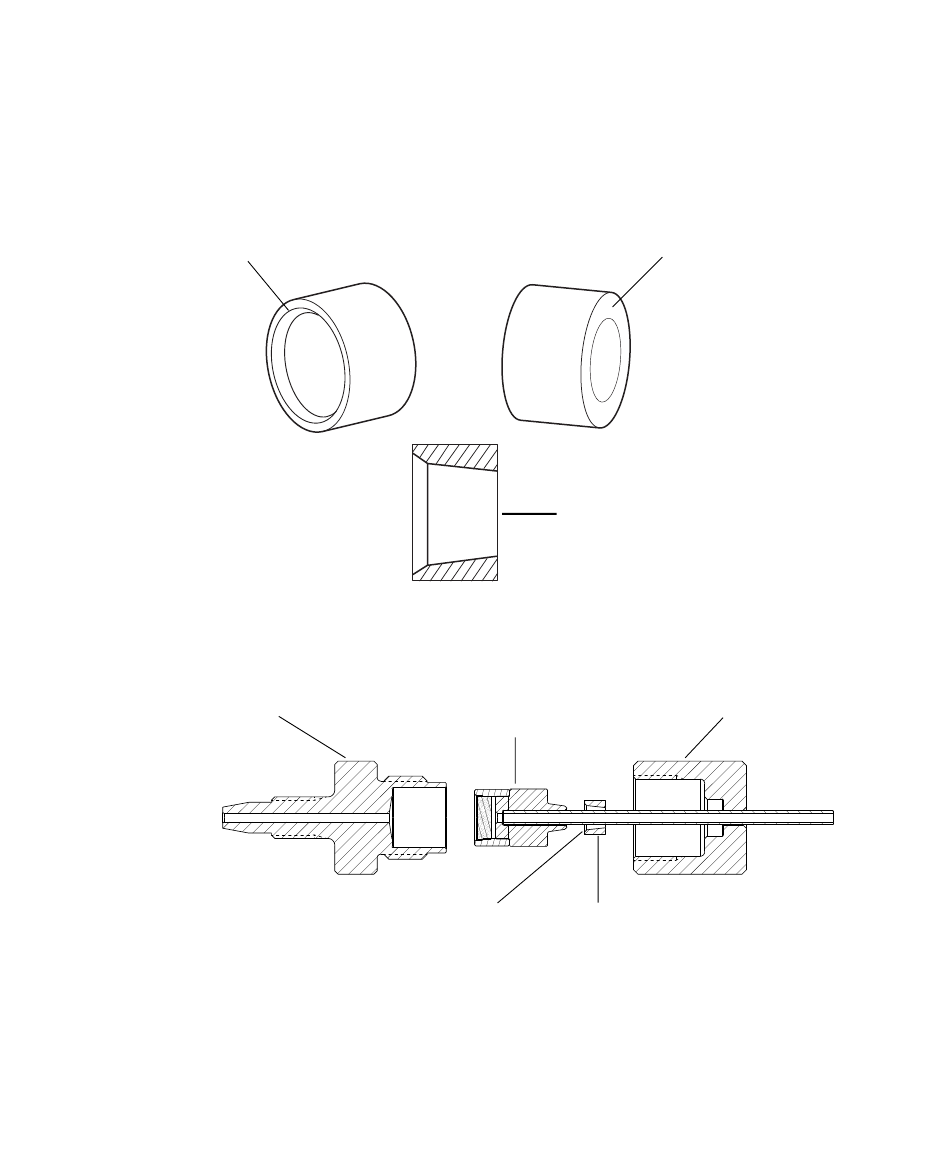

Metal locking ring:
Thinner end of
locking ring
8. Slide the new low-pressure filter cartridge onto the tube.
Exploded view of low-pressure filter:
Ferrule holder fitting
94 September 26, 2013, 715004208 Rev. A
Cross-sectional view
In-line filter cartridge
Thinner Metal
end locking ring
step
Thicker end of
locking ring
Cap nut
8).
