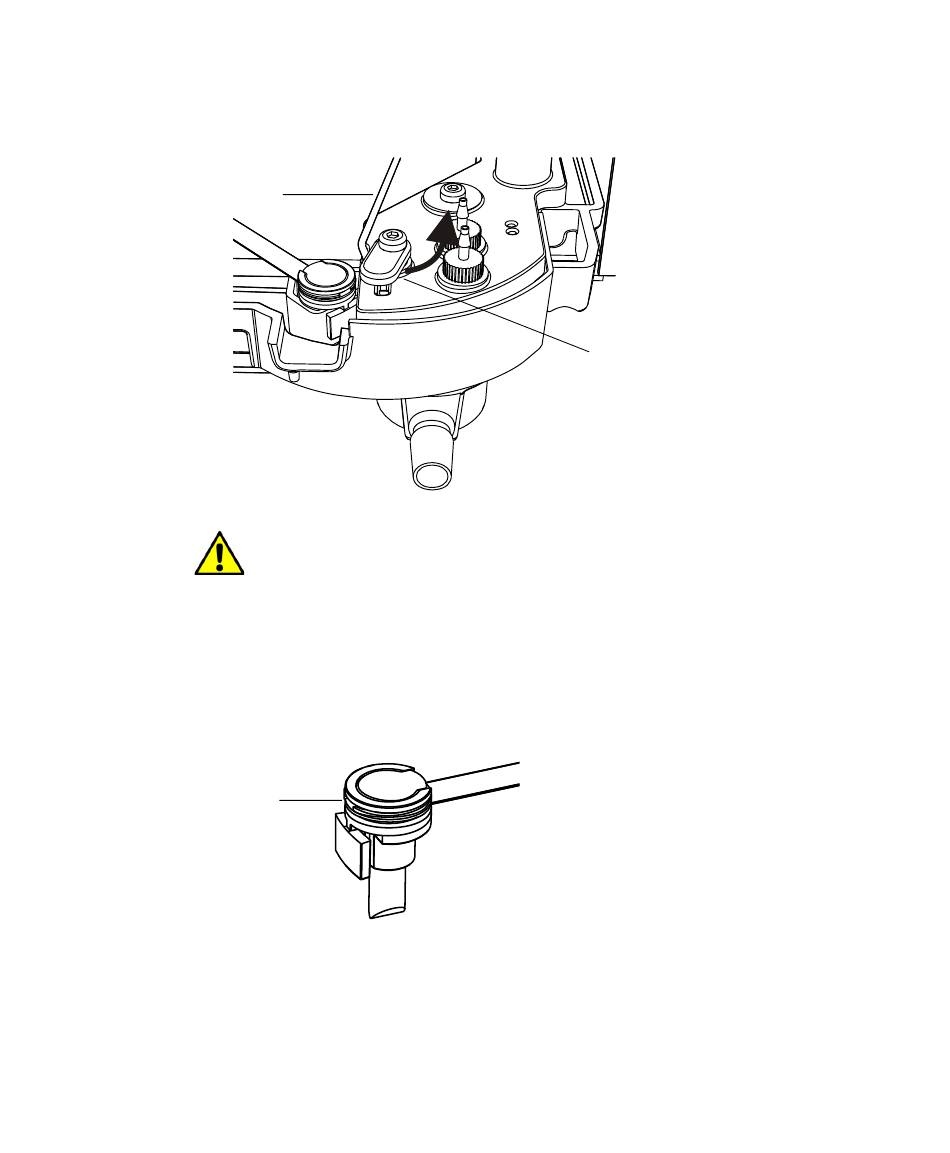

5. Turn the vent tubing retainer counterclockwise, and then lift the vent
tubing from the drip tray by pulling upward on it and moving it to the
right-hand side of the leak sensor.
Vent tubing
Caution:
ribbon cable.
6. Remove the leak sensor from its reservoir, grasping it by its serrations,
and pull upward on it.
If you cannot easily manipulate the leak sensor after removing it
Tip:
from its reservoir, detach the connector from the receptacle on the front
of the instrument.
Serrations
To avoid damaging the leak sensor, do not grasp it by the
September 26, 2013, 715004208 Rev. A
Resolving leak sensor errors
Vent tubing retainer
