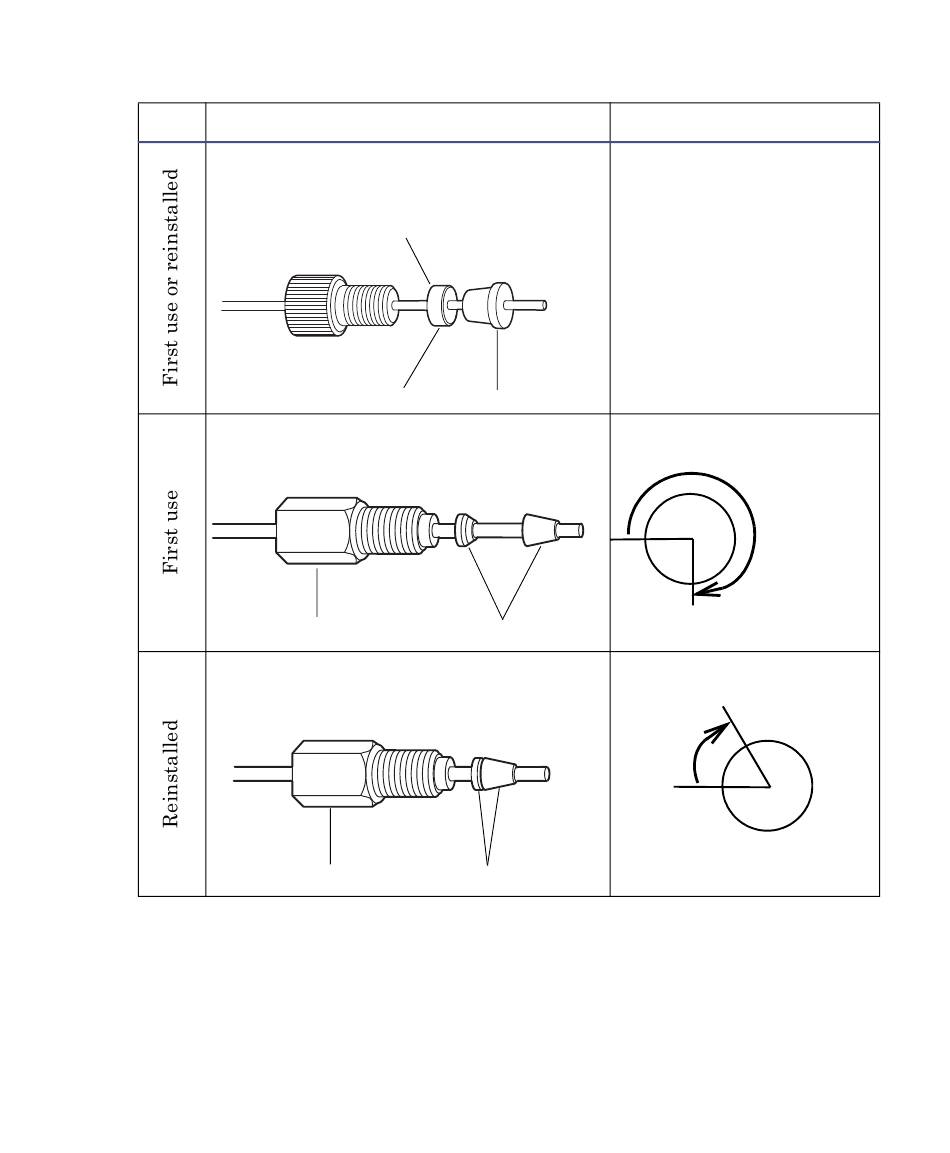

Installation recommendations for ACQUITY ISM fittings: (Continued)
Fitting
Short 1/4-28 fitting with flangeless
ferrule and stainless-steel lock ring,
installed on .062-inch OD tubing.
End of lock ring with smaller ID
Stainless-steel (gold-plated) fitting with
long flats and 2-piece stainless-steel
ferrule.
Long flats
Stainless-steel (gold-plated) fitting with
long flats and 2-piece stainless-steel
ferrule.
Long flats
TP03379
Lock ring Ferrule
TP03378
2-piece ferrule
TP02713
2-piece ferrule
September 26, 2013, 715004208 Rev. A
Installation recommendations for fittings
Recommended tightening
Finger-tight
Finger-tight, plus 3/4-turn
using wrench
Finger-tight, plus up to
1/6-turn using wrench
1/6-turn
3/4-turn
