Installing The Optional Post-Column Addition Kit - Waters ACQUITY Isocratic Solvent Manager Overview And Maintenance Manual

• The optical detector outlet tubing, ISM filter outlet tubing, and
Convergence Manager tee inlet tubing are supplied in the splitter
kit.

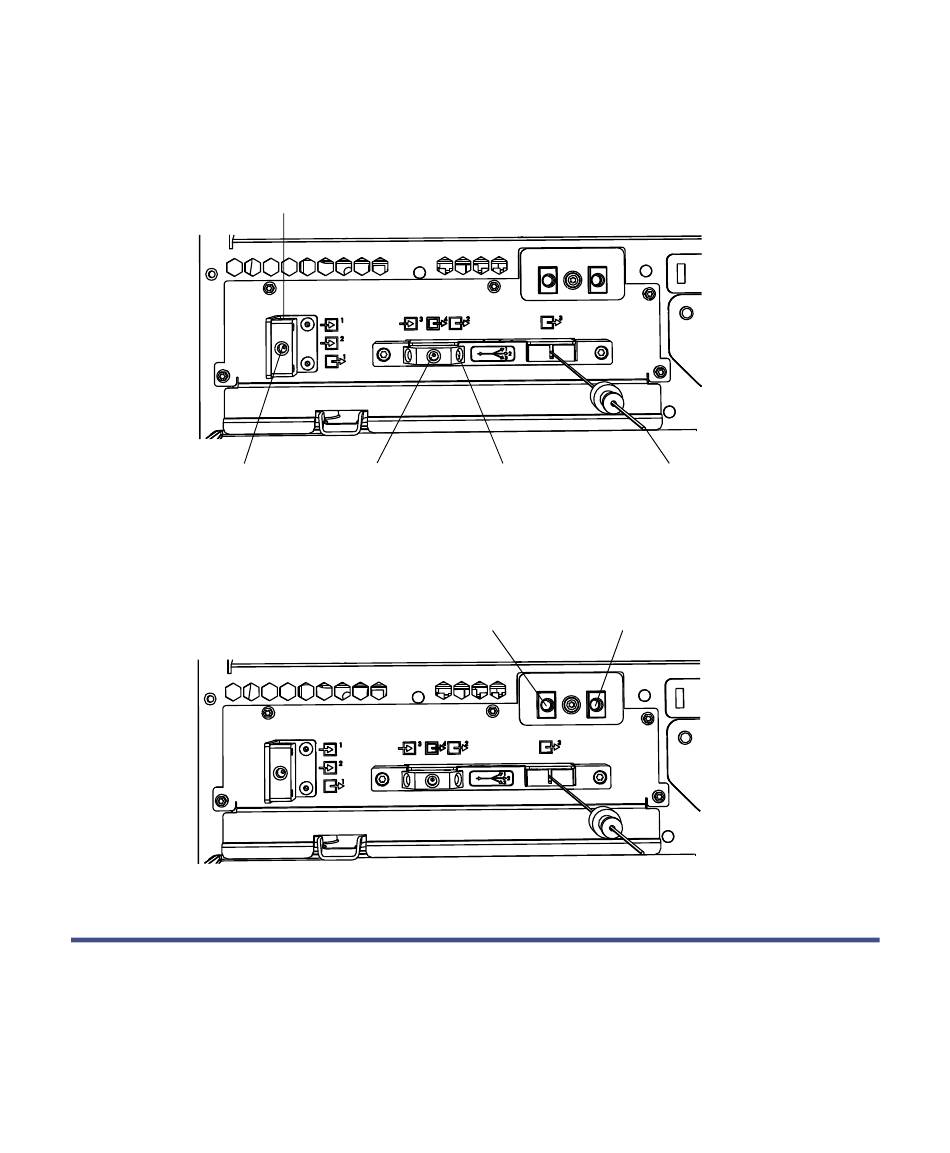

Inlet 1:
From optical
detector
Inlet 2:
From ISM
filter
12. Reconnect the finger-tight fittings to the outlet and inlet of the degasser.

Installing the optional Post-column Addition kit

On an ACQUITY UPLC, ACQUITY UPLC H-Class, ACQUITY UPLC I-Class,
or Alliance system, install the Post-column Addition kit in the ISM to modify
the composition of mobile phase entering the QDa detector. Doing so
facilitates ionization of compounds that are relatively nonpolar. The kit

Installing the optional Post-column Addition kit

Outlet 4: Outlet 2:
To third To Convergence
detector Manager tee
Degasser
outlet
September 26, 2013, 715004208 Rev. A
Outlet 3:
To QDa detector
source
Degasser
inlet
61
