2 Preparing for Operation
3.

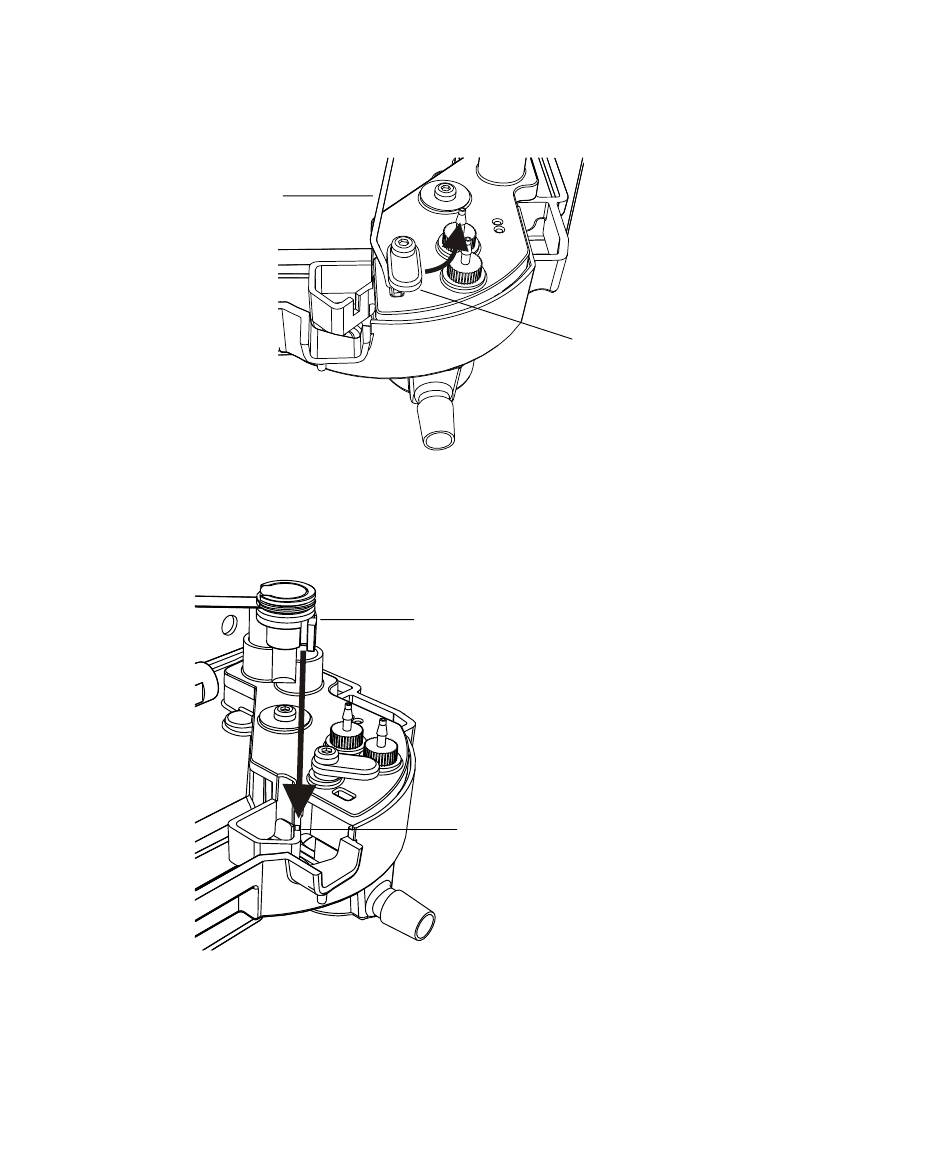

Turn the vent tubing retainer counterclockwise, and then lift the vent
tubing from the drip tray by pulling upward on it and moving it to the
right-hand side of the leak sensor.
Vent tubing
4.
Carefully unpack the new leak sensor.
5.
Align the leak sensor's T-bar with the slot in the side of the leak sensor
reservoir, and slide the leak sensor into place.
6.
Reinsert the vent tubing into the drip tray.
7.
Turn the vent tubing retainer, which holds the vent tubing in place,
clockwise.
34
September 26, 2013, 715004208 Rev. A
Vent tubing retainer
T-bar
Slot in leak
sensor reservoir
