3 Maintenance Procedures
Warning:
old plunger. Bending the plunger shaft can cause it to break.
14. Use the recessed side of the plunger removal tool to apply pressure to
both sides of the release collar, and then remove the old plunger.
15. Remove the plunger removal tool from the release collar.
112
September 26, 2013, 715004208 Rev. A
To avoid hand lacerations, use care when removing the

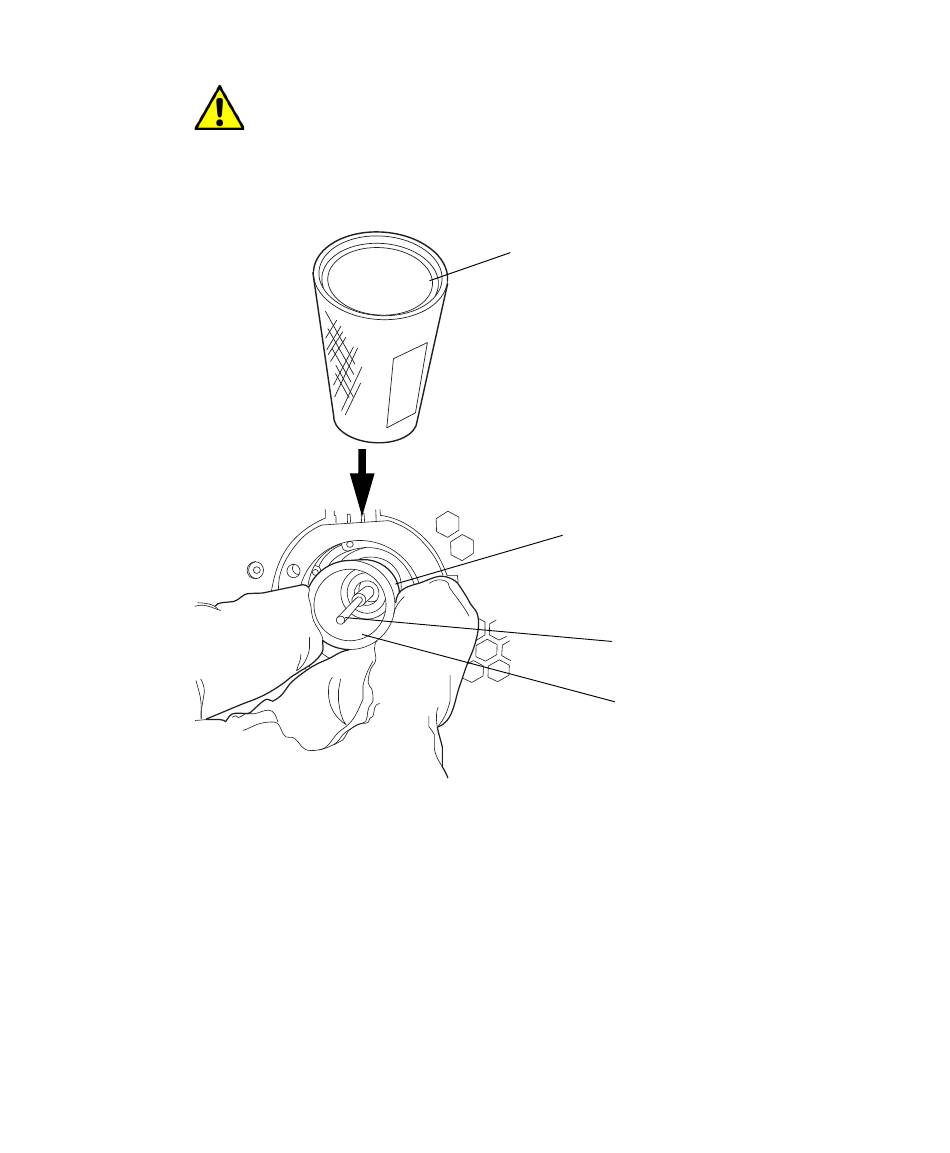

Recessed lip of plunger
removal tool
TP02990
TP02994
Spring-loaded
release collar
Plunger
Plunger removal tool
