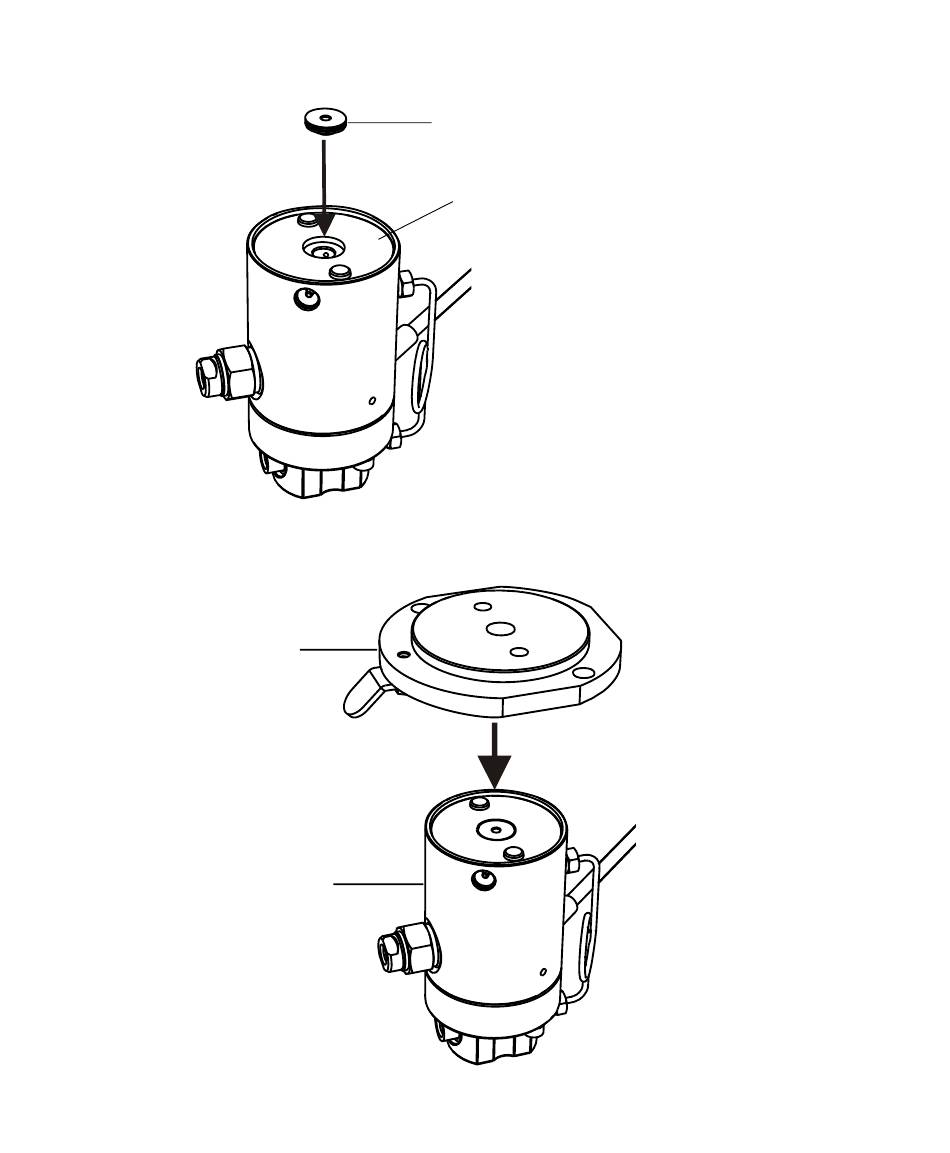

15. Install the new seal wash seal in the seal wash housing.
16. Place the support plate on top of the pump head, ensuring the round side
of the plate is oriented toward the bottom side of the head.
Round side of
support plate
Bottom side of
pump head
118
September 26, 2013, 715004208 Rev. A
Seal wash seal
Seal wash housing
