3 Maintenance Procedures
4.

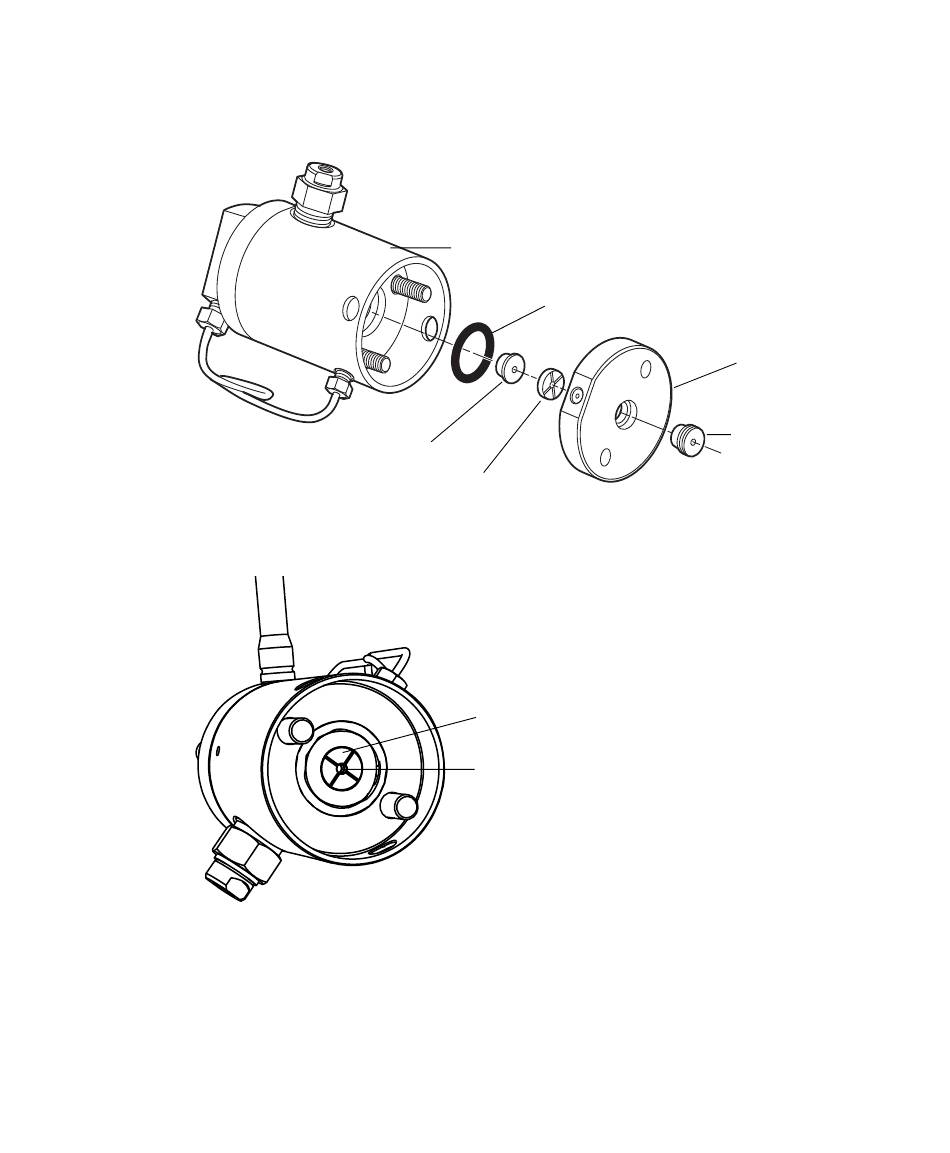

Remove the old seal wash seal and discard it.
Head seals:
5.
Using the smooth end of the seal extraction tool, remove the plunger seal
spacer from the head.
114
September 26, 2013, 715004208 Rev. A
Head
Plunger seal
Plunger seal spacer
Plunger seal spacer
Insert seal extraction
tool here
Fluoropolymer O-ring
Seal wash
housing
Seal wash
seal
