I-5-1 Virtual Panel - Draytek Vigor3910 Series User Manual

I - 5 - 1 V i r
I - 5 - 1 V i r

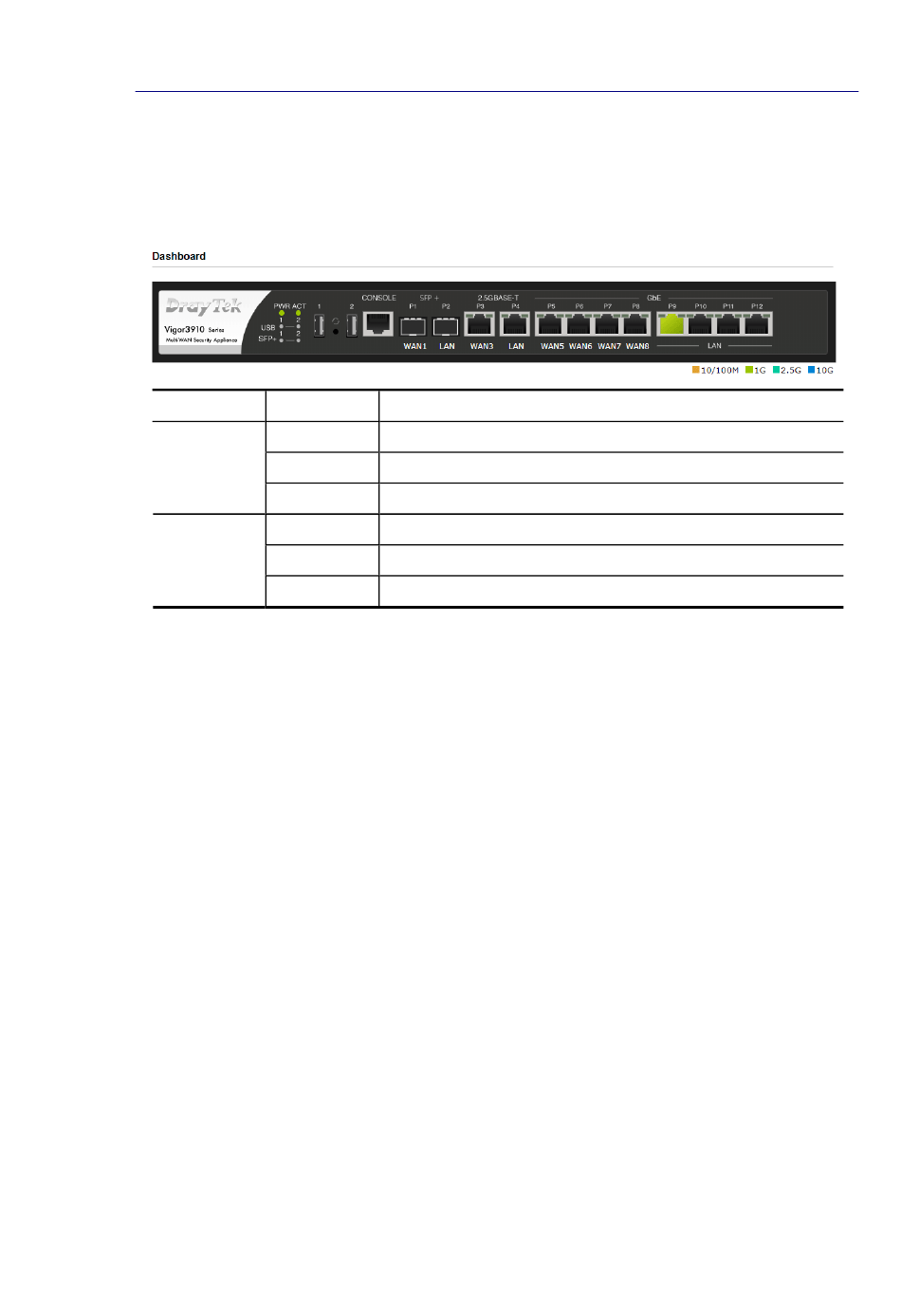

On the top of the Dashboard, a virtual panel (simulating the physical panel of the router)
displays the physical interface connection. It will be refreshed every five seconds. When you
move and click the mouse cursor on LAN, or WAN, related web setting page will be open for
you to configure if required.
Port
LAN
WAN
For detailed information about the LED display, refer to I-1-1 LED Indicators and
Connectors.
Vigor3910 Series User's Guide
t u a l P a n e l
t u a l P a n e l
Color Description
Black LAN port is disconnected.
Orange LAN port is connected at 10/100 Mbps.
Green LAN port is connected at 1 Gbps.
Black WAN port is disconnected.
Orange WAN port is connected at 10/100 Mbps.
Green WAN port is connected at 1 Gbps.
