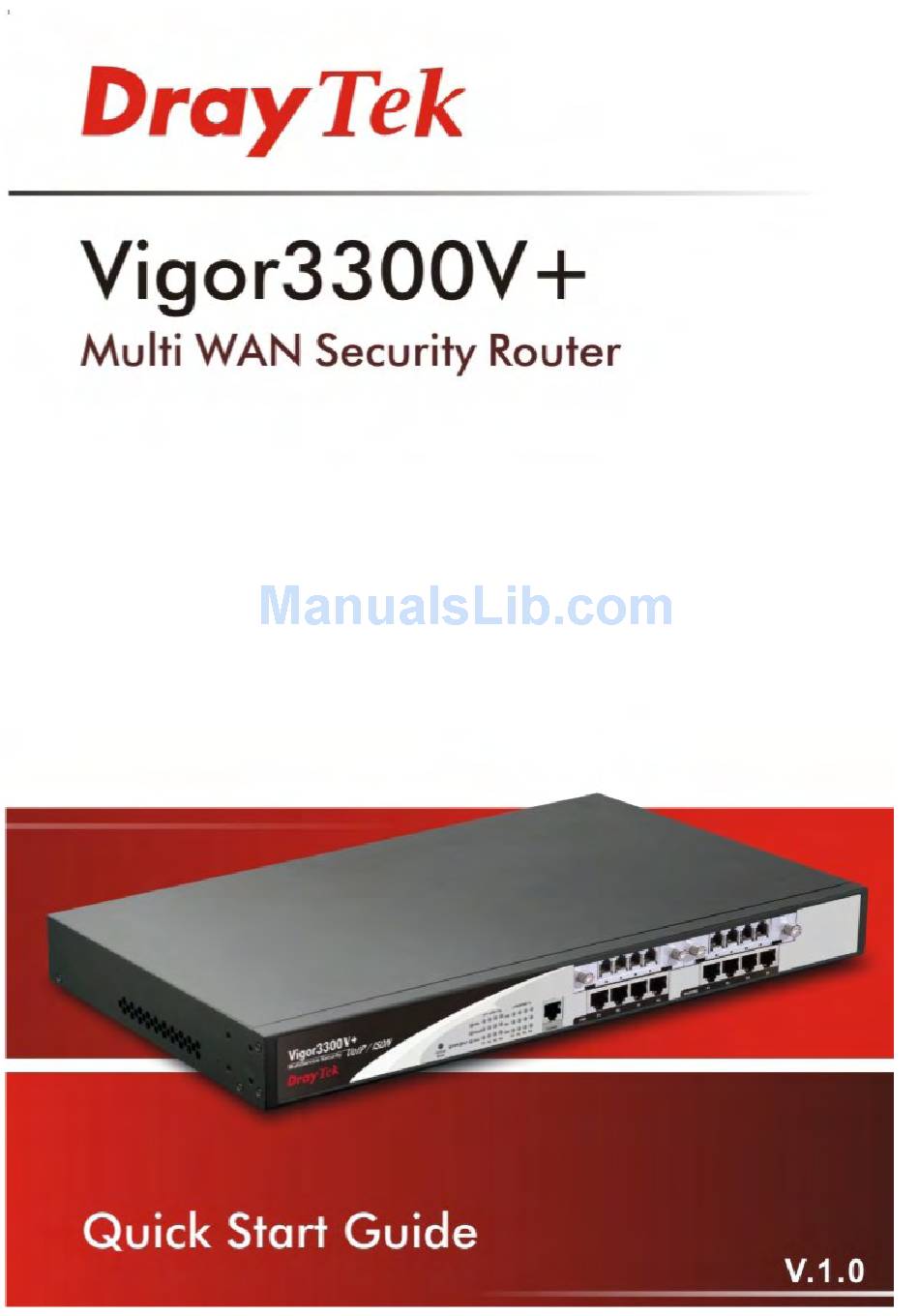

  • Page 1 Vigor3300V+ Series Quick Start Guide...
  • Page 2 Vigor3300V+ Series Quick Start Guide...

  • Page 3: Quick Start Guide

    Vigor 3300 V+ Multi-WAN Security Router Quick Start Guide Version: 1.0 Date:30/06/2009 Vigor3300V+ Series Quick Start Guide...

  • Page 4: Copyright Information

    Copyright Information Copyright Copyright 2009 All rights reserved. This publication contains information that is Declarations protected by copyright. No part may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language without written permission from the copyright holders. The scope of delivery and other details are subject to change without prior notice.

  • Page 5: European Community Declarations

    Taiwan 303 Product: Vigor3300V+ DrayTek Corp. declares that Vigor3300V+ of routers are in compliance with the following essential requirements and other relevant provisions of R&TTE Directive 1999/5/EEC. The product conforms to the requirements of Electro-Magnetic Compatibility (EMC) Directive 2004/108/EC by complying with the requirements set forth in EN55022/Class A and EN55024/Class A.
  • Page 6 Vigor3300V+ Series Quick Start Guide...

  • Page 7: Table Of Contents

    1. Introduction......................1 1.1 Panel Explanation ........................2 1.2 Package Content........................5 2. Install Your Vigor3300V+ Series Router.............. 7 2.1 Hardware Installation........................7 2.1.1 Network Connection ....................... 7 2.1.2 ISDN Phone Adapter Installation..................8 2.2 Primary Web Configuration ...................... 10 2.2.1 Accessing Web Browser....................

  • Page 9: Introduction

    To ensure secure and reliable Internet access over enterprise networks, Vigor3300V+ will be a good solution for you. Vigor3300V+ is a comprehensive NAT and optional security suite that combines firewall, VPN, URL content filtering facilities, with bandwidth management and VoIP capabilities.

  • Page 10: Panel Explanation

    Status Explanation The router is powered on. The router is powered off. On/Blinking The system is active. The system is hanged. The VPN tunnel is launched. The VPN tunnel is closed. Firewall The Firewall function is active. The Firewall function is inactive. The QoS function is active.
  • Page 11 For the router supports functions of FXS, FXO, ISDN S0/TE, and ISDN ALL TE modules that are optional, users can purchase them and install them into the router according to the real requirement. The LED description for there four modules are different slightly. Please read the following for detailed explanation.
  • Page 12 Interface Description Console Provided for technician use. LAN (P1 ~ P4) Connecter for local networked devices. WAN/DMZ (P1 ~ P4) Connecter for remote networked devices. Connecter for telephone set. Connecter for FXS interface of PABX or PSTN line. ISDN S0/TE Connecter for ISDN phone/ISDN line.

  • Page 13: Package Content

    Quick Start Guide Rack mount kit (brackets) Console Connector RJ-45 Cable (Ethernet)x 2 RJ-45 to RJ-45 Cable RJ-11 to RJ-11 Cable VoIP Module (Optional) ISDN Module (Optional) The type of the power cord depends on the country that the router will be installed: UK-type power cord EU-type power cord USA/Taiwan-type power cord...
  • Page 14 This page is left blank. Vigor3300V+ Series Quick Start Guide...

  • Page 15: Install Your Vigor3300V+ Series Router

    The system starts to initiate. After completing the system test, the ACT LED will light up and start blinking. Connect one end of an Ethernet cable (RJ-45) to one of the LAN ports of Vigor3300V+s. Connect the other end of the cable (RJ-45) to the Ethernet port on your computer (that device also can connect to other computers to form a small area network).

  • Page 16: Isdn Phone Adapter Installation

    Caution: Each of the Phone ports can be connected to an analog phone only. Do not connect the phone ports to the telephone wall jack. Such connection might damage your router. ISDN NT is always fixed to connect ISDN phone. However, ISDN S0/TE is configurable as NT or TE mode.
  • Page 17 Such interface is used for connecting ISDN line. Each port is dedicated to TE mode only. Therefore, you cannot use such interface to connect to any ISDN phone. For the connection, refer to the following figure for reference. Note: When data transmission through this interface, the Green LED will flash. Vigor3300V+ Series Quick Start Guide...

  • Page 18: Primary Web Configuration

    Open a web browser (e.g. IE or Netscape) on your PC and type http://192.168.1.1. A pop-up window will open to ask for username and password. Please type default values on the window for the first time accessing. The default value for user name is draytek and the password is 1234. Next, click OK.

  • Page 19: Changing User Password

    The first job that you have to do is changing the user password. Follow the steps below to modify: 1. Go to System page and choose Change Password. 2. Enter the login password on the field of Old Password. Type a new one in the field of New Password and retype it on the field of Confirm Password.
  • Page 20 Static IP: If Static IP is selected, the following screen will appear. Please type in values for IP address, Subnet Mask, Default Gateway and Primary DNS specified by your ISP, and then click Apply. DHCP: If you choose DHCP mode, the DHCP server of your ISP will assign a dynamic IP address for Vigor3300 automatically.

  • Page 21: Adjusting Lan Connection

    PPTP: If your ISP uses PPTP (Point-to-Point Tunneling Protocol), please select PPTP. Next, enter the PPTP Subnet Mask (e.g., 255.255.255.0), PPTP Local Address (e.g., 10.66.99.88) and PPTP Remote Address (e.g., 172.66.99.88) provided by your ISP on the web page. And click Apply.

  • Page 22: Setting Nat Port Redirection Table

    The NAT Port Redirection means port forwarding. Port forwarding sets up public services on your network such as web servers, FTP servers and other special Internet applications. When other users send this type of request to your network through the Internet, the router will direct these requests to an appropriate host inside.

  • Page 23: Setting Nat Address Mapping Table

    2. Click radio button of #1 and click Edit. 3. Select TCP/UDP as the protocol. 4. Type in public port range from 1000 to 2000. 5. Type in private IP with 172.168.1.100. 6. Type in private port range from 2000 to 3000. NAT (Network Address Translation) converts IP addresses on a private network (designated as “LAN”) into public IP addresses, so the packets can be forwarded to another registered network (designated as “WAN”).

  • Page 24: Setting Icmp Access Control

    2. Click radio button of #1 and click Edit. 3. Select TCP as the protocol. 4. Set the Private IP with 192.168.1.100 and select /24 as the Subnet Mask. Note: If you want to choose any on of the Public IP settings, you must specify some IP addresses in the IP Alias List of the Static/DHCP Configuration page first.

  • Page 25: Observing The Status

    2. Select Disable for Allow Management from the WAN. To monitor the router’s operating status, click the Status tab for the information. The screen pops up displaying the current settings of Vigor3300, including three windows – Basic, LAN, and WAN. 1.
  • Page 26 3. Click the tab of WAN Status. It displays the information for all the WAN interfaces at the same time, including IP address, MAC Address, Primary DNS, Secondary DNS, Gateway, RX Packets, TX Packets, Connection Status and Up Time. Vigor3300V+ Series Quick Start Guide...

  • Page 27: Trouble Shooting

    This section will guide you to solve abnormal situations if you cannot access into the Internet after installing the router and finishing the web configuration. Please follow below sections to check your basic installation stage by stage. Checking if the hardware status is OK or not. Checking if the Network Connection Settings on your computer is OK or not.
  • Page 28 The example is based on Windows XP. As to the examples for other operation systems, please refer to the similar steps or find support notes in www.draytek.com. Go to Control Panel and then double-click on Network Connections. Right-click on Local Area Connection and click on Properties.
  • Page 29 Select Obtain an IP address automatically and Obtain DNS server address automatically. Double click on the current used MacOs on the desktop. Open the Application folder and get into Network. On the Network screen, select Using DHCP from the drop down list of Configure IPv4. Vigor3300V+ Series Quick Start Guide...

  • Page 30: Pinging The Router From Your Computer

    The default gateway IP address of the router is 192.168.1.1. For some reason, you might need to use “ping” command to check the link status of the router. The most important thing for this command is that the computer will receive a reply from 192.168.1.1 for correct link. If not, please check the IP address of your computer.

  • Page 31: Checking If The Isp Settings Are Ok Or Not

    Go to the web configuration GUI (http://192.168.1.1), click Network >> WAN to check your ISP settings for IP modes. Make sure the Active check box has been selected. Check if Username and Password are entered with correct values that you got from your ISP.
  • Page 32 After finishing the settings, go to System - Status page and click WAN Status. You will get a correct web page of WAN settings. Check if the values of IP Address, Subnet Mask, Gateway IP Address and Primary DNS that you got from ISP are set properly or not. If you forget, please contact with ISP for getting new ones.

  • Page 33: Backing To Factory Default Setting If Necessary

    Check if the settings of Username and Password are correct or not. Check if the setting of Authentication is correct or not. You may need to try both PAP and CHAP. Check if the value of PPTP Local Address, PPTP Subnet Mask, and PPTP Remote Address are correct or not.

  • Page 34: Contacting Your Dealer

    If the router settings are correct at all, and the router still does not connect to internet, please contact your ISP technical support representative to help you for configuration. Also, if the router still cannot work correctly, please contact your dealer for help. For any further questions, please send e-mail to support@draytek.com. Vigor3300V+ Series Quick Start Guide...
