Item
Index
Enable
Destination Address
Set to Factory Default
Viewing Routing Table
A d d S t a
A d d S t a

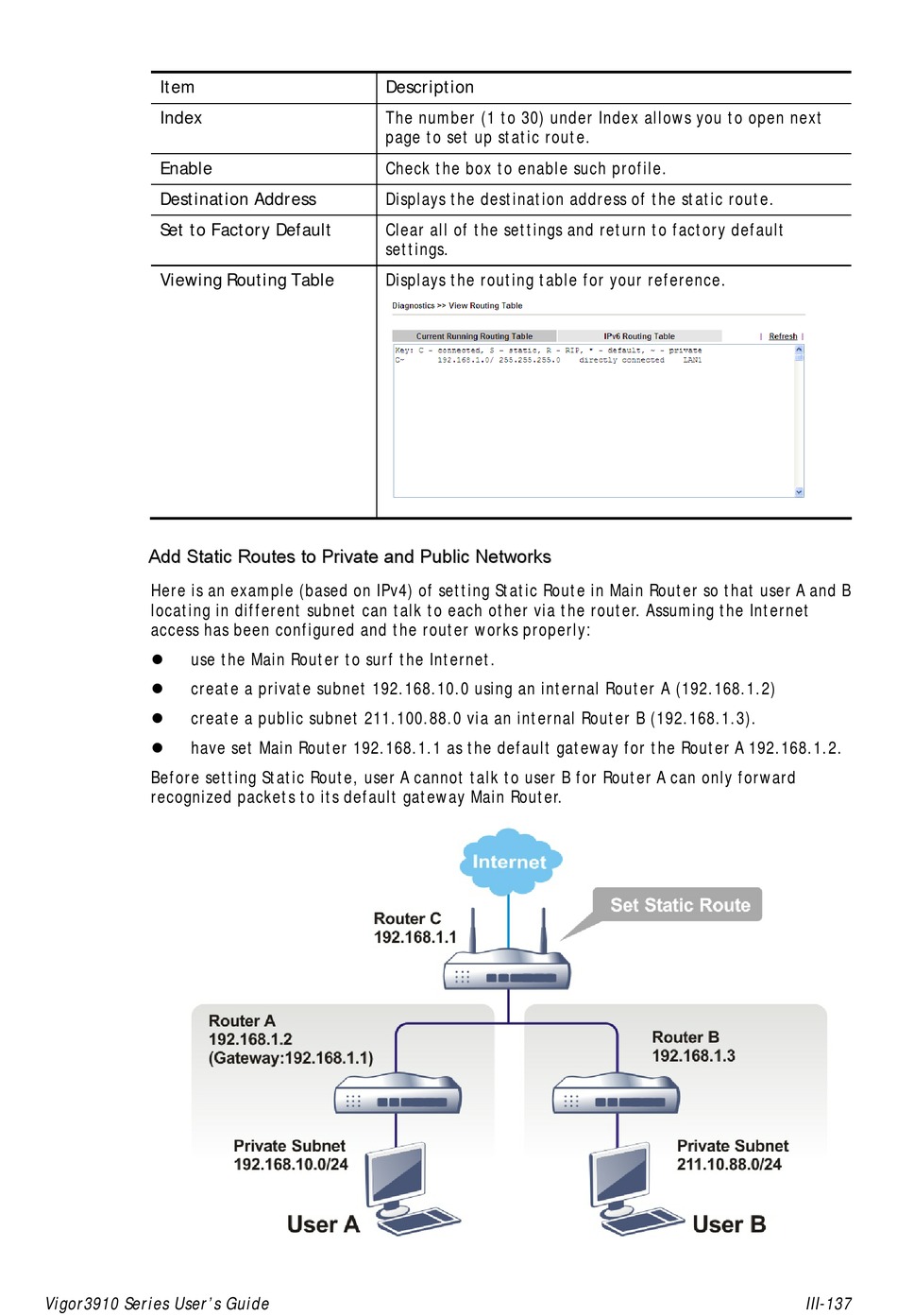

Here is an example (based on IPv4) of setting Static Route in Main Router so that user A and B
locating in different subnet can talk to each other via the router. Assuming the Internet
access has been configured and the router works properly:
 use the Main Router to surf the Internet.
 create a private subnet 192.168.10.0 using an internal Router A (192.168.1.2)
create a public subnet 211.100.88.0 via an internal Router B (192.168.1.3).

have set Main Router 192.168.1.1 as the default gateway for the Router A 192.168.1.2.

Before setting Static Route, user A cannot talk to user B for Router A can only forward
recognized packets to its default gateway Main Router.
Vigor3910 Series User's Guide
t i c R o u t e s t o P r i v a t e
t i c R o u t e s t o P r i v a t e
Description
The number (1 to 30) under Index allows you to open next
page to set up static route.
Check the box to enable such profile.
Displays the destination address of the static route.
Clear all of the settings and return to factory default
settings.
Displays the routing table for your reference.
a n d P u b l i c N e t w o r k s
a n d P u b l i c N e t w o r k s
III-137
