Bandwidth Utilisation
Notification Settings
Select OK to save changes on the page, or Clear to reset all settings to factory defaults.
V - 1 - 2 - 2 R
V - 1 - 2 - 2 R

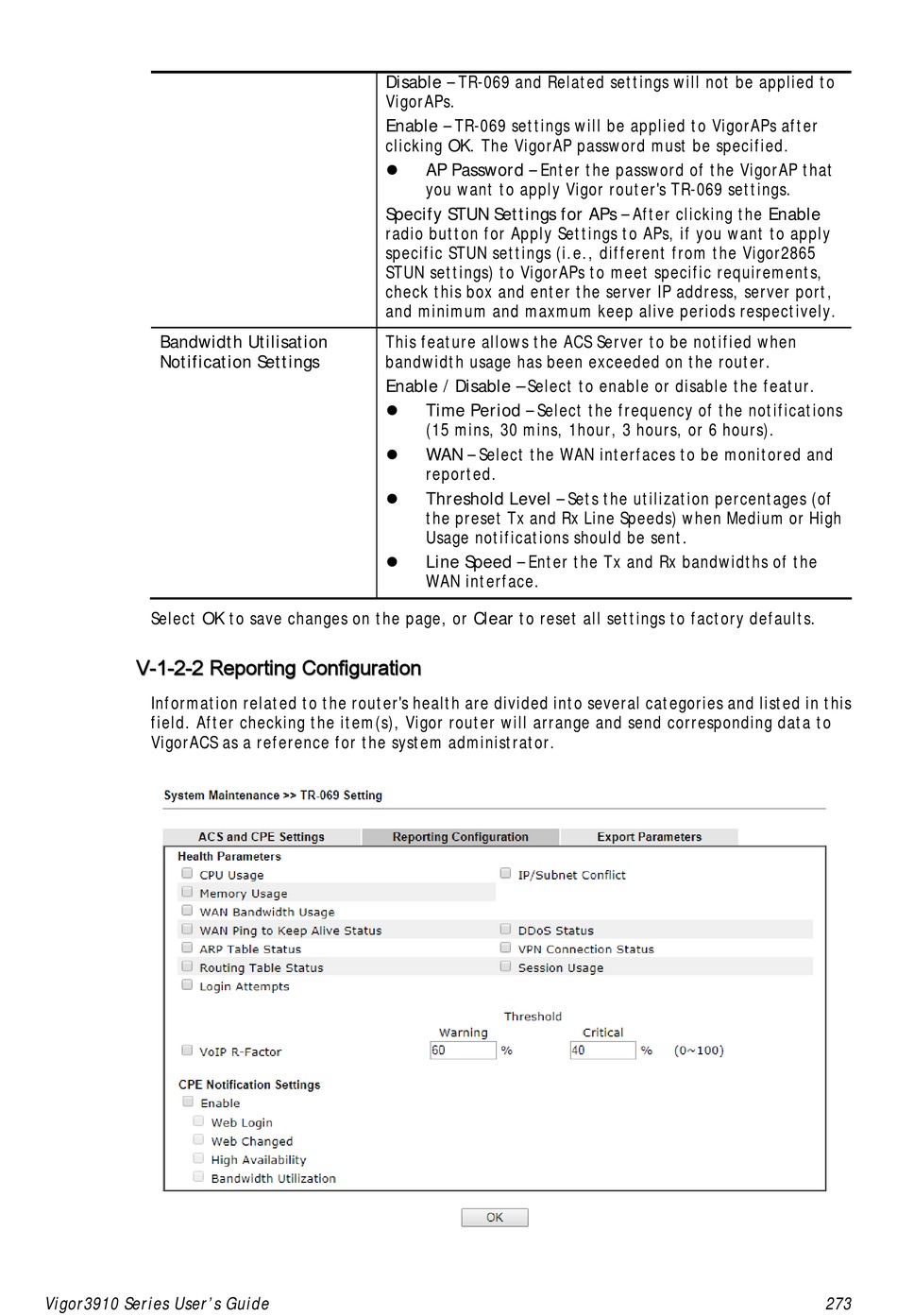

Information related to the router's health are divided into several categories and listed in this
field. After checking the item(s), Vigor router will arrange and send corresponding data to
VigorACS as a reference for the system administrator.
Vigor3910 Series User's Guide
Disable – TR-069 and Related settings will not be applied to
VigorAPs.
Enable – TR-069 settings will be applied to VigorAPs after
clicking OK. The VigorAP password must be specified.

Specify STUN Settings for APs – After clicking the Enable
radio button for Apply Settings to APs, if you want to apply
specific STUN settings (i.e., different from the Vigor2865
STUN settings) to VigorAPs to meet specific requirements,
check this box and enter the server IP address, server port,
and minimum and maxmum keep alive periods respectively.
This feature allows the ACS Server to be notified when
bandwidth usage has been exceeded on the router.
Enable / Disable – Select to enable or disable the featur.




e p o r t i n g C o n f i g u r a t
e p o r t i n g C o n f i g u r a t
AP Password – Enter the password of the VigorAP that
you want to apply Vigor router's TR-069 settings.
Time Period – Select the frequency of the notifications
(15 mins, 30 mins, 1hour, 3 hours, or 6 hours).
WAN – Select the WAN interfaces to be monitored and
reported.
Threshold Level – Sets the utilization percentages (of
the preset Tx and Rx Line Speeds) when Medium or High
Usage notifications should be sent.
Line Speed – Enter the Tx and Rx bandwidths of the
WAN interface.
i o n
i o n
