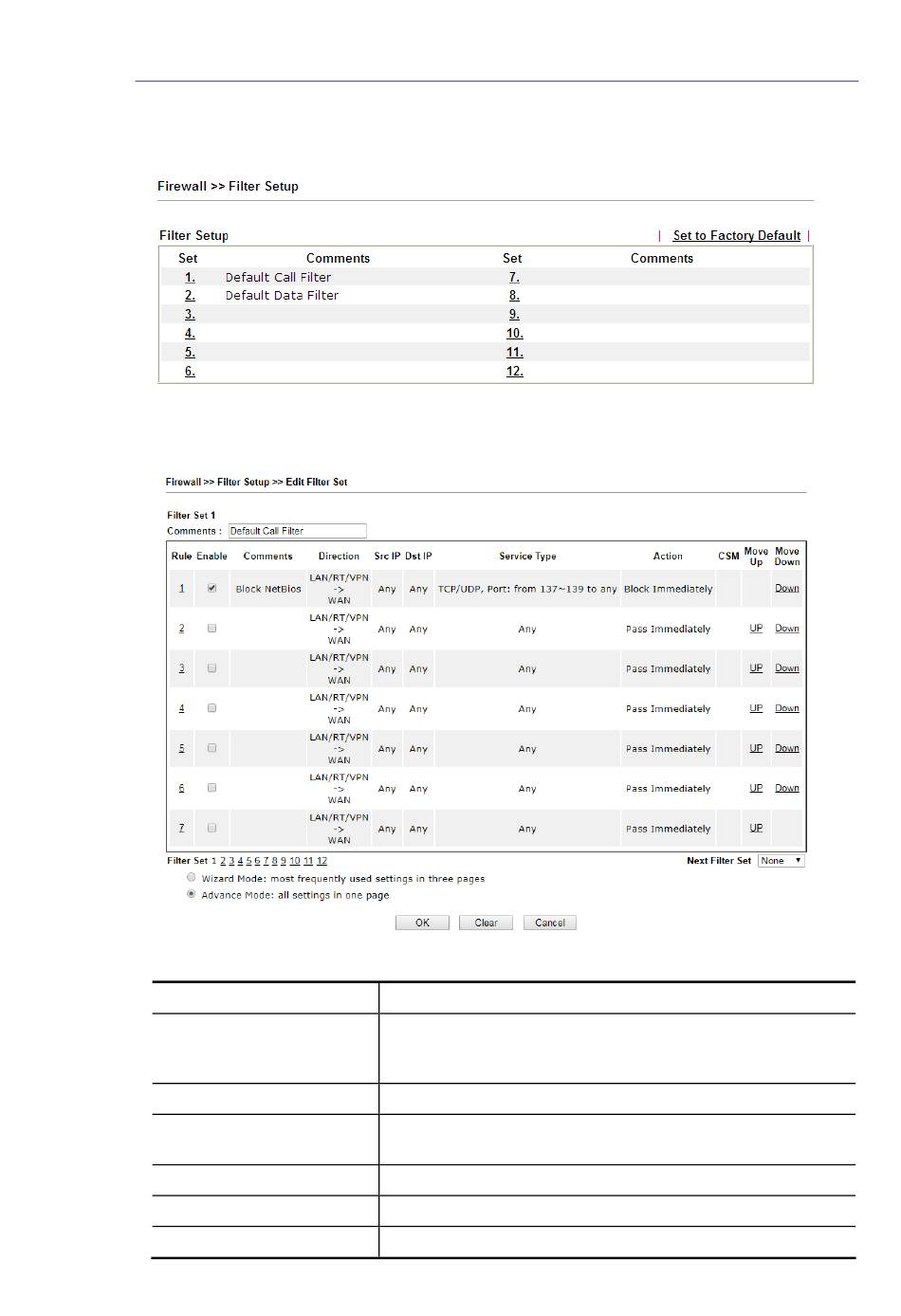

Click Firewall and click Filter Setup to open the setup page.
To edit or add a filter, click on the set number to edit the individual set. The following page
will be shown. Each filter set contains up to 7 rules. Click on the rule number button to edit
each rule. Check Active to enable the rule.
Available settings are explained as follows:
Item
Filter Rule
Active
Comment
Direction
Src IP / Dst IP
Service Type
Vigor3910 Series User's Guide
i l t e r S e t u p
i l t e r S e t u p
Description
Click a button numbered (1 ~ 7) to edit the filter rule. Click
the button will open Edit Filter Rule web page. For the
detailed information, refer to the following page.
Enable or disable the filter rule.
Enter filter set comments/description. Maximum length is
23–character long.
Display the direction of packet.
Display the IP address of source /destination.
Display the type and port number of the packet.
