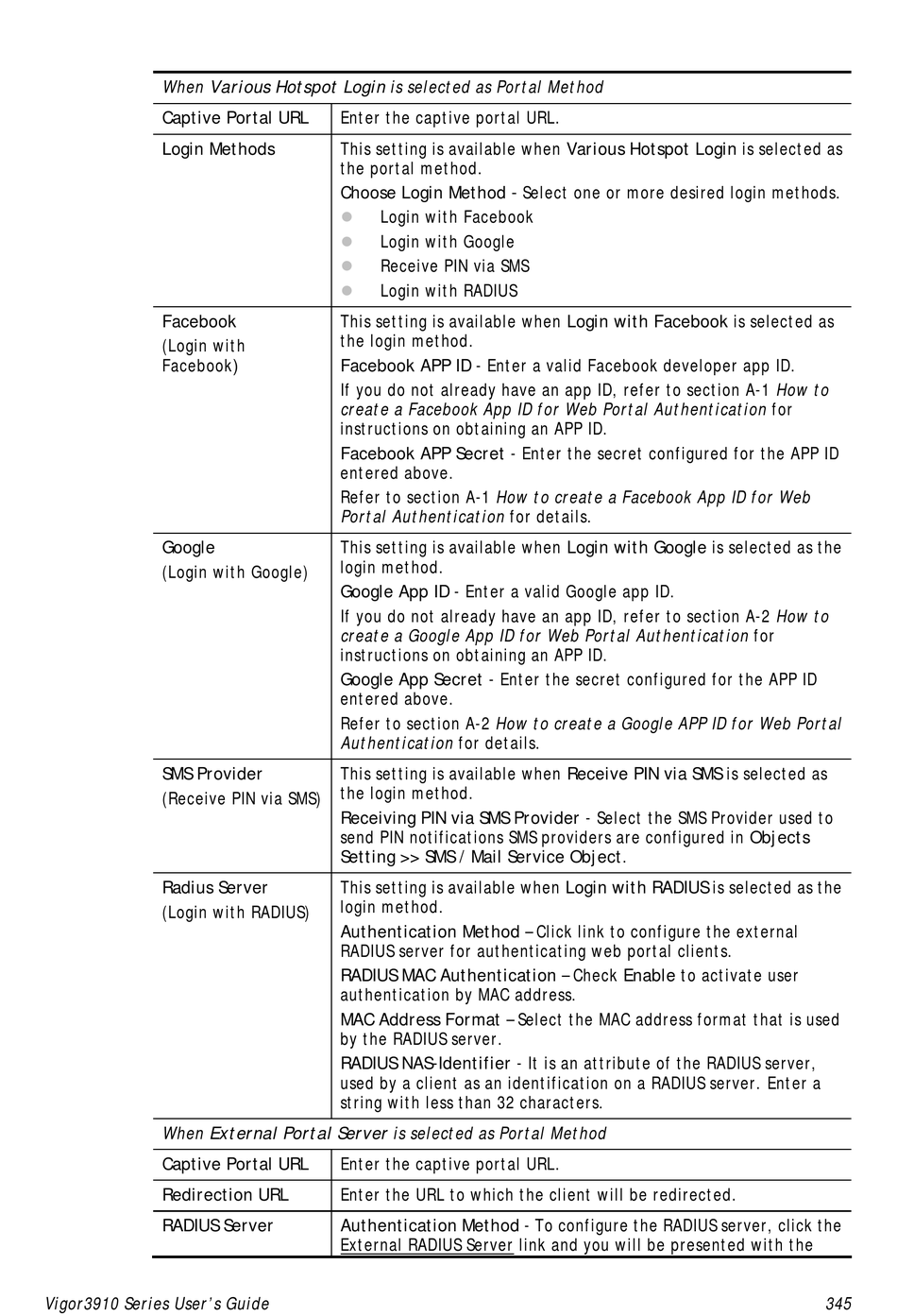

V-4-1-1 Login Method - Draytek Vigor3910 Series User Manual

When Various Hotspot Login is selected as Portal Method
Captive Portal URL
Login Methods
Facebook
(Login with
Facebook)
Google
(Login with Google)
SMS Provider
(Receive PIN via SMS)
Radius Server
(Login with RADIUS)
When External Portal Server is selected as Portal Method
Captive Portal URL
Redirection URL
RADIUS Server
Vigor3910 Series User's Guide
Enter the captive portal URL.
This setting is available when Various Hotspot Login is selected as
the portal method.
Choose Login Method - Select one or more desired login methods.
Login with Facebook

Login with Google

 Receive PIN via SMS
 Login with RADIUS
This setting is available when Login with Facebook is selected as
the login method.
Facebook APP ID - Enter a valid Facebook developer app ID.
If you do not already have an app ID, refer to section A-1 How to
create a Facebook App ID for Web Portal Authentication for
instructions on obtaining an APP ID.
Facebook APP Secret - Enter the secret configured for the APP ID
entered above.
Refer to section A-1 How to create a Facebook App ID for Web
Portal Authentication for details.
This setting is available when Login with Google is selected as the
login method.
Google App ID - Enter a valid Google app ID.
If you do not already have an app ID, refer to section A-2 How to
create a Google App ID for Web Portal Authentication for
instructions on obtaining an APP ID.
Google App Secret - Enter the secret configured for the APP ID
entered above.
Refer to section A-2 How to create a Google APP ID for Web Portal
Authentication for details.
This setting is available when Receive PIN via SMS is selected as
the login method.
Receiving PIN via SMS Provider - Select the SMS Provider used to
send PIN notifications SMS providers are configured in Objects
Setting >> SMS / Mail Service Object.
This setting is available when Login with RADIUS is selected as the
login method.
Authentication Method – Click link to configure the external
RADIUS server for authenticating web portal clients.
RADIUS MAC Authentication – Check Enable to activate user
authentication by MAC address.
MAC Address Format – Select the MAC address format that is used
by the RADIUS server.
RADIUS NAS-Identifier - It is an attribute of the RADIUS server,
used by a client as an identification on a RADIUS server. Enter a
string with less than 32 characters.
Enter the captive portal URL.
Enter the URL to which the client will be redirected.
Authentication Method - To configure the RADIUS server, click the
External RADIUS Server link and you will be presented with the
345
