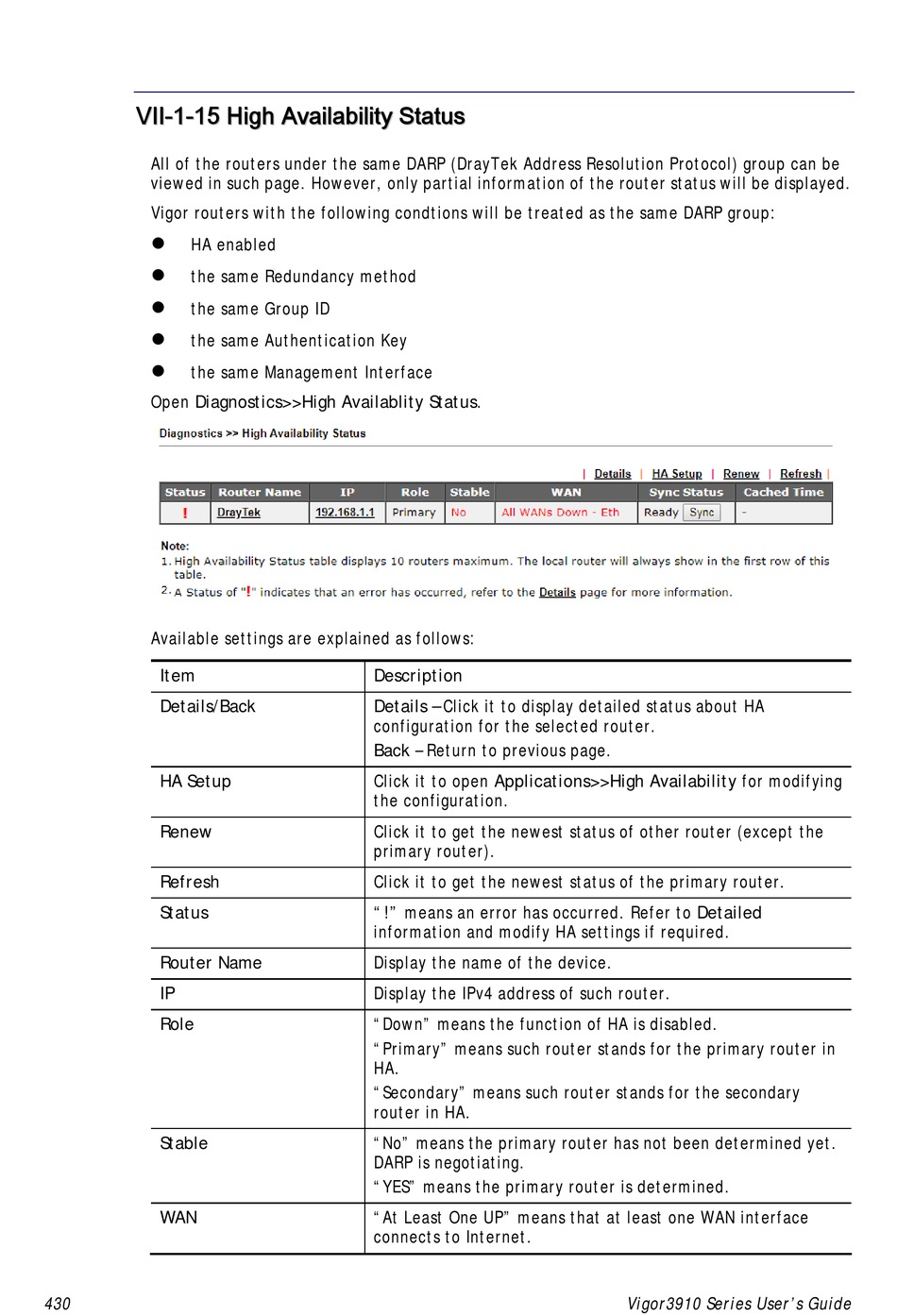

All of the routers under the same DARP (DrayTek Address Resolution Protocol) group can be
viewed in such page. However, only partial information of the router status will be displayed.
Vigor routers with the following condtions will be treated as the same DARP group:

HA enabled

the same Redundancy method

the same Group ID

the same Authentication Key

the same Management Interface
Open Diagnostics>>High Availablity Status.
Available settings are explained as follows:
Item
Details/Back
HA Setup
Renew
Refresh
Status
Router Name
IP
Role
Stable
WAN
430
H i g h A v a i l a b i l i t y
H i g h A v a i l a b i l i t y
Description
Details – Click it to display detailed status about HA
configuration for the selected router.
Back – Return to previous page.
Click it to open Applications>>High Availability for modifying
the configuration.
Click it to get the newest status of other router (except the
primary router).
Click it to get the newest status of the primary router.
"!" means an error has occurred. Refer to Detailed
information and modify HA settings if required.
Display the name of the device.
Display the IPv4 address of such router.
"Down" means the function of HA is disabled.
"Primary" means such router stands for the primary router in
HA.
"Secondary" means such router stands for the secondary
router in HA.
"No" means the primary router has not been determined yet.
DARP is negotiating.
"YES" means the primary router is determined.
"At Least One UP" means that at least one WAN interface
connects to Internet.
