Analyze

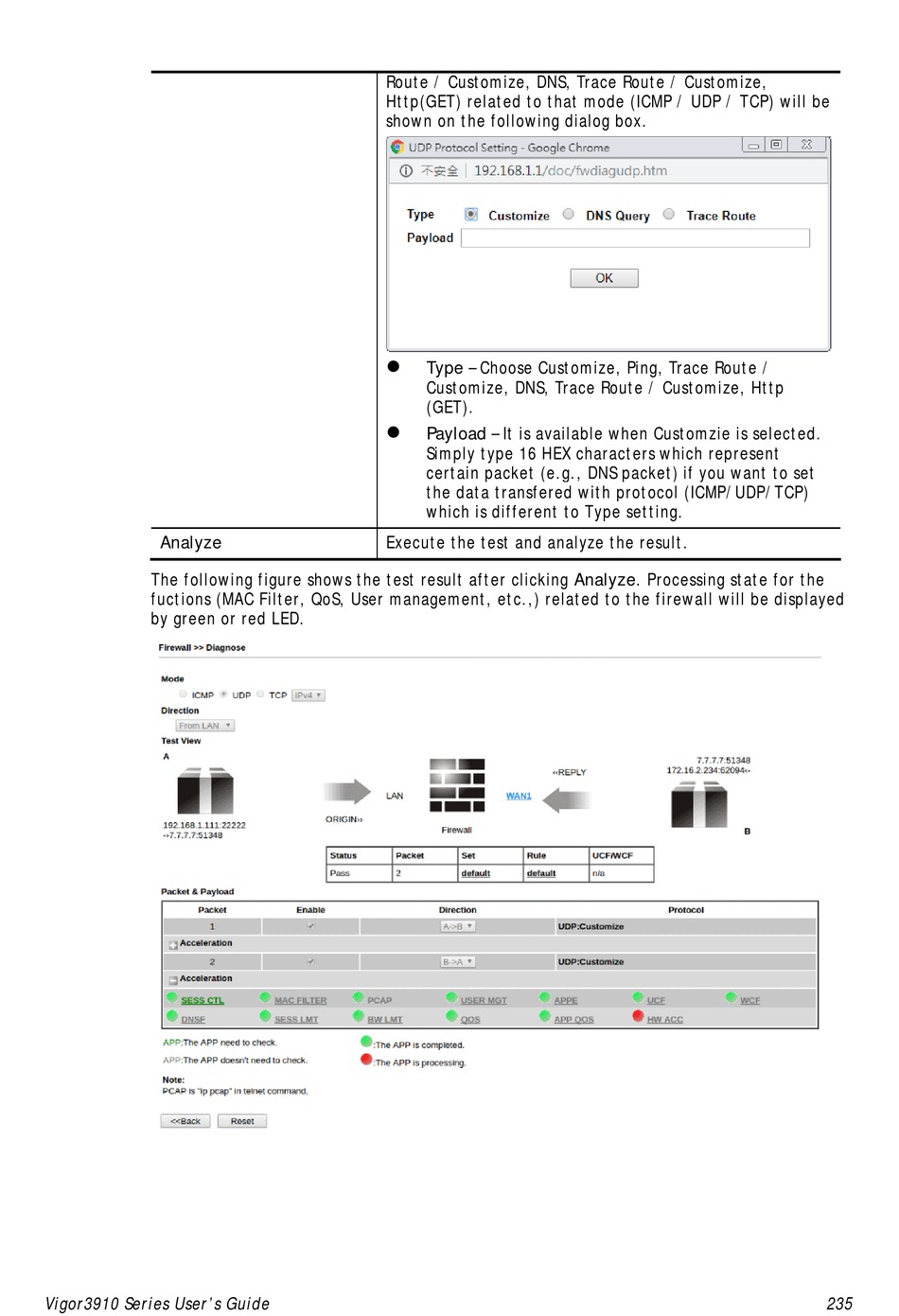

The following figure shows the test result after clicking Analyze. Processing state for the
fuctions (MAC Filter, QoS, User management, etc.,) related to the firewall will be displayed
by green or red LED.
Vigor3910 Series User's Guide
Route / Customize, DNS, Trace Route / Customize,
Http(GET) related to that mode (ICMP / UDP / TCP) will be
shown on the following dialog box.

Type – Choose Customize, Ping, Trace Route /
Customize, DNS, Trace Route / Customize, Http
(GET).

Payload – It is available when Customzie is selected.
Simply type 16 HEX characters which represent
certain packet (e.g., DNS packet) if you want to set
the data transfered with protocol (ICMP/UDP/TCP)
which is different to Type setting.
Execute the test and analyze the result.
