Draytek Vigor3910 Series Quick Start Manual

Multi-wan security router
Hide thumbs Also See for Vigor3910 Series:
Table of Contents

Advertisement

Quick Links

Download this manual
i

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Vigor3910 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Draytek Vigor3910 Series

Summary of Contents for Draytek Vigor3910 Series

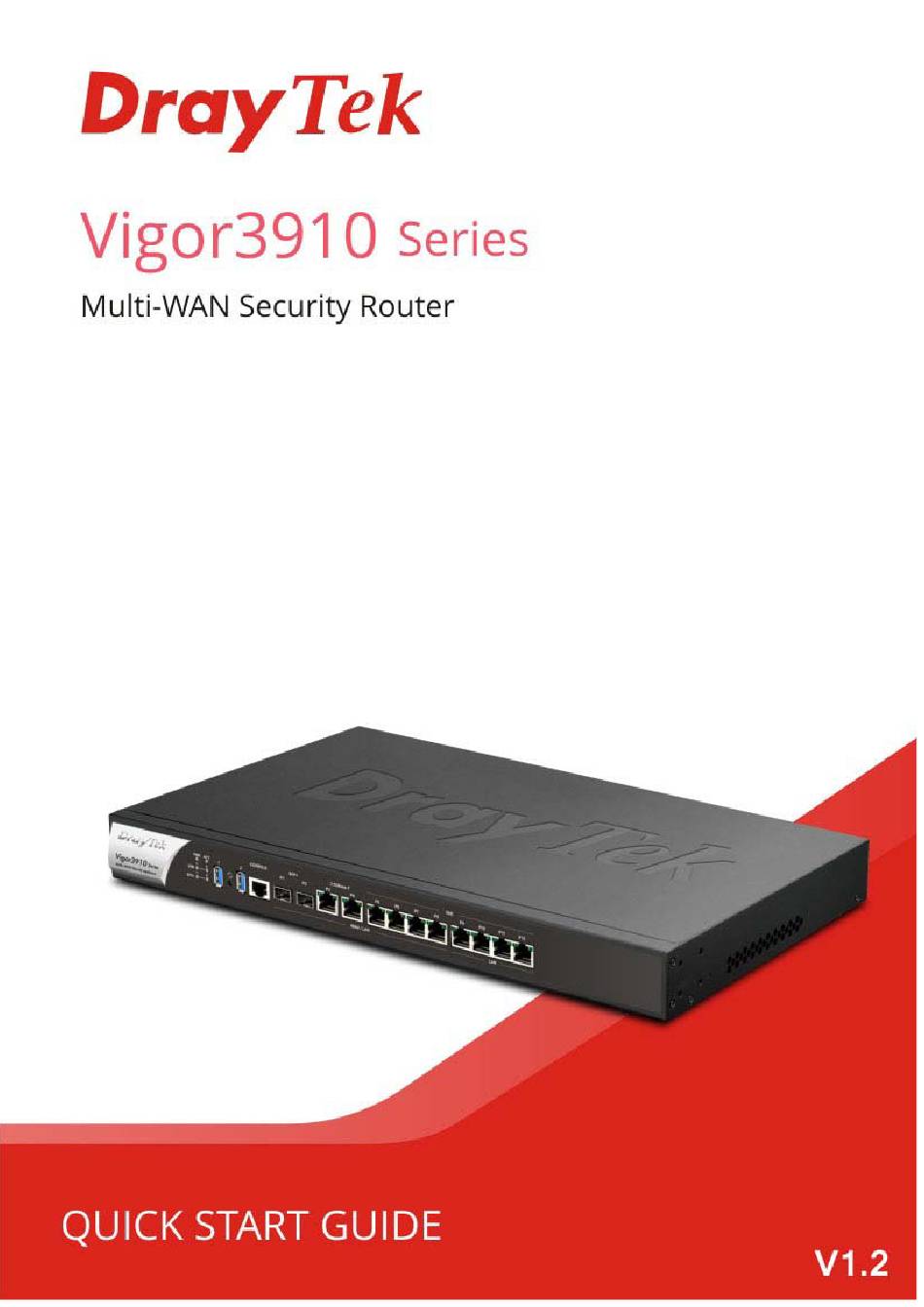

  • Page 2 Vigor3910 Series Multi-WAN Security Router Quick Start Guide Version:1.2 Firmware Version: V4.3.1.1 (For future update, please visit DrayTek web site) Date: July 20, 2022...
  • Page 3 Intellectual Property Rights (IPR) Information © All rights reserved. This publication contains information that is protected Copyrights by copyright. No part may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language without written permission from the copyright holders. The following trademarks are used in this document: Trademarks ...
  • Page 4 EU Declaration of Conformity We DrayTek Corp. , office at No.26, Fushing Rd., Hukou, Hsinchu Industrial Park, Hsinchu 303, Taiwan, declare under our sole responsibility that the product Product name: Multi-WAN Security Appliance   Model number: Vigor3910 Manufacturer: DrayTek Corp.
  • Page 5 (1) This device may not cause harmful interference, and (2) This device may accept any interference received, including interference that may cause undesired operation. More update, please visit www.draytek.com. Company name ABP International Inc. Address 13988 Diplomat Drive Suite 180 Dallas TX 75234...

  • Page 6: Table Of Contents

    1. Package Content ....................1 2. Panel Explanation....................2 2.1 LED ............................2 2.2 Connectors ..........................2 3. Hardware Installation ................... 3 3.1 Connecting Device ........................3 3.2 Rack-Mounted Installation......................4 4. Software Configuration ..................5 4.1 Quick Start Wizard for Network Connection................5 5.

  • Page 7: Package Content

    Take a look at the package content. If there is anything missed or damaged, please contact DrayTek or dealer immediately. Vigor router Quick Start Guide RJ-45 Cable (Ethernet) Rack mount kit (brackets) Console Connector Console Flat Cable The type of the power cord depends on the country that the router will be installed.

  • Page 8: Panel Explanation

    Status Explanation The router is powered on. The router is powered off. Blinking The system is active. The system is hanged. The USB device is installed and ready. No USB device is installed. SFP+ The fiber connection is established. No fiber connection is established or the system is hanged.

  • Page 9: Hardware Installation

    This section will guide you to install the router through hardware connection and configure the router’s settings through web browser. Before starting to configure the router, you have to connect your devices correctly. Connect a modem to any WAN port of Vigor3910 with Ethernet cable (RJ-45) to access Internet.

  • Page 10: Rack-Mounted Installation

    The Vigor3910 Series can be mounted on the shelf by using standard brackets shown below. Fasten the rack mount kit on both sides of the Vigor router using specific screws. Then, install the Vigor router (with rack mount kit) on the 19-inch chassis by...

  • Page 11: Software Configuration

    To access Internet, please finish basic configuration after completing the hardware installation. The Quick Start Wizard is designed for you to easily set up your router for Internet access. You can directly access the Quick Start Wizard via Web User Interface.
  • Page 12 Now, the Main Screen will pop up. If your router can be under an environment with high speed NAT, the configuration provide here can help you to deploy and use the router quickly. The first screen of Quick Start Wizard is entering login password. After typing the password, please click Next.
  • Page 13 On the next page as shown below, please select the WAN interface that you use. Then click Next for next step. Note The number of WAN interfaces is related to the port setup configuration. Only available WAN interfaces will be shown in this field.
  • Page 14 Choose WAN1 as WAN Interface and click the Next button; you will get the following page. Select PPPoE and click Next to get the following page.
  • Page 15 Enter the Username/Password provided by your ISP. Then click Next for viewing the summary of such connection. Click Finish. A page of Quick Start Wizard Setup OK!!! will appear. Then, the system status of this protocol will be shown. Now, you can enjoy surfing on the Internet.
  • Page 16 Choose WAN1 as WAN Interface and click the Next button; you will get the following page. Select DHCP and click Next to get the following page.
  • Page 17 Enter the hostname and / or MAC address provided by your ISP. Then click Next for viewing summary of such connection. Click Finish. A page of Quick Start Wizard Setup OK!!! will appear. Then, the system status of this protocol will be shown. Now, you can enjoy surfing on the Internet.

  • Page 18: Customer Service

    Web registration is preferred. You can register your Vigor router via https://myvigor.draytek.com. Firmware & Tools Updates Due to the continuous evolution of DrayTek technology, all routers will be regularly upgraded. Please consult the DrayTek web site for more information on newest firmware, tools and documents.
