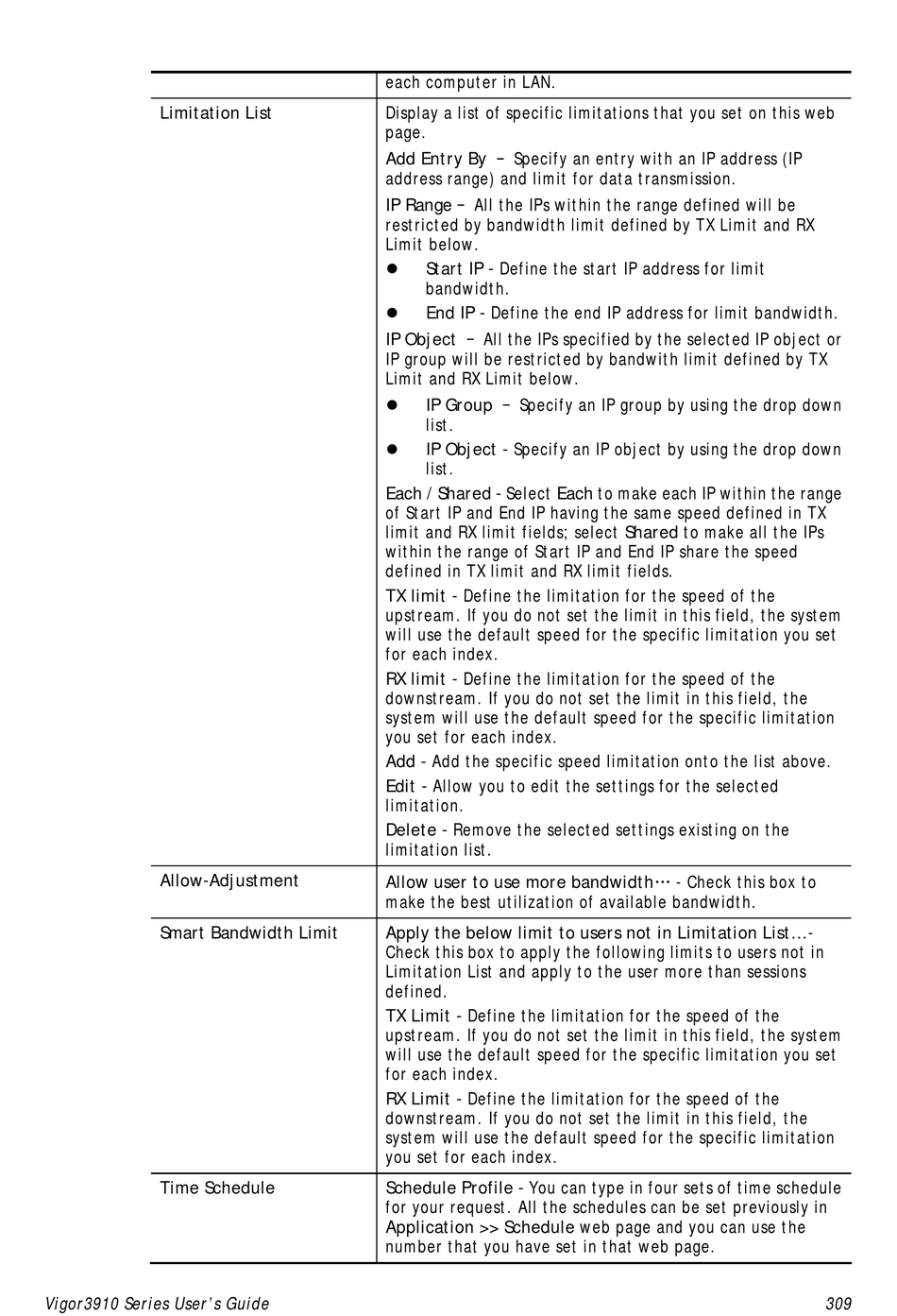

Limitation List
Allow-Adjustment
Smart Bandwidth Limit
Time Schedule
Vigor3910 Series User's Guide
each computer in LAN.
Display a list of specific limitations that you set on this web
page.
Add Entry By – Specify an entry with an IP address (IP
address range) and limit for data transmission.
IP Range– All the IPs within the range defined will be
restricted by bandwidth limit defined by TX Limit and RX
Limit below.
 Start IP - Define the start IP address for limit
bandwidth.
End IP - Define the end IP address for limit bandwidth.

IP Object – All the IPs specified by the selected IP object or
IP group will be restricted by bandwith limit defined by TX
Limit and RX Limit below.
 IP Group – Specify an IP group by using the drop down
list.
 IP Object - Specify an IP object by using the drop down
list.
Each / Shared - Select Each to make each IP within the range
of Start IP and End IP having the same speed defined in TX
limit and RX limit fields; select Shared to make all the IPs
within the range of Start IP and End IP share the speed
defined in TX limit and RX limit fields.
TX limit - Define the limitation for the speed of the
upstream. If you do not set the limit in this field, the system
will use the default speed for the specific limitation you set
for each index.
RX limit - Define the limitation for the speed of the
downstream. If you do not set the limit in this field, the
system will use the default speed for the specific limitation
you set for each index.
Add - Add the specific speed limitation onto the list above.
Edit - Allow you to edit the settings for the selected
limitation.
Delete - Remove the selected settings existing on the
limitation list.
Allow user to use more bandwidth... - Check this box to
make the best utilization of available bandwidth.
Apply the below limit to users not in Limitation List... -
Check this box to apply the following limits to users not in
Limitation List and apply to the user more than sessions
defined.
TX Limit - Define the limitation for the speed of the
upstream. If you do not set the limit in this field, the system
will use the default speed for the specific limitation you set
for each index.
RX Limit - Define the limitation for the speed of the
downstream. If you do not set the limit in this field, the
system will use the default speed for the specific limitation
you set for each index.
Schedule Profile - You can type in four sets of time schedule
for your request. All the schedules can be set previously in
Application >> Schedule web page and you can use the
number that you have set in that web page.
309
