I - 5 - 1 V i r
I - 5 - 1 V i r

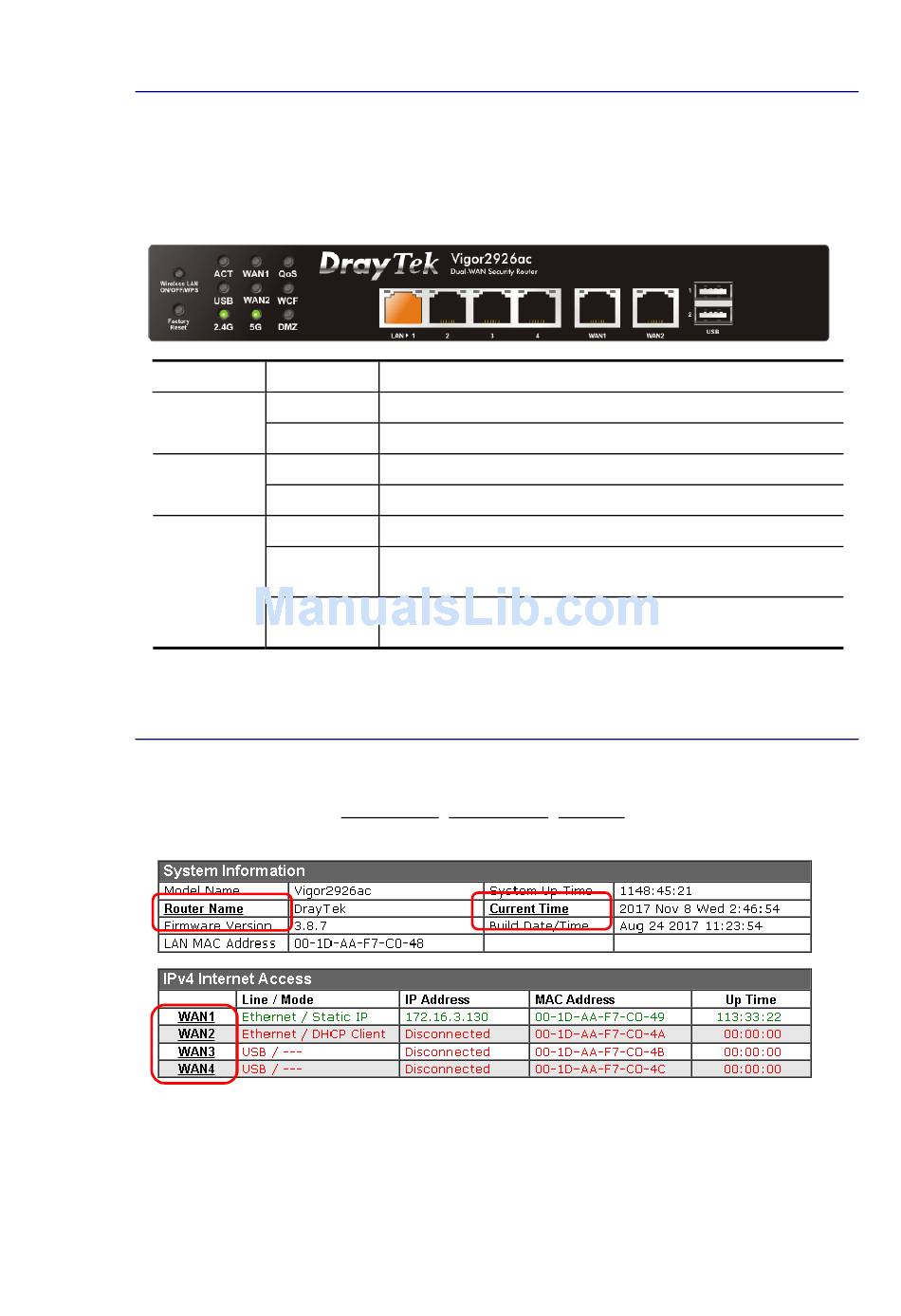

On the top of the Dashboard, a virtual panel (simulating the physical panel of the router)
displays the physical interface connection. It will be refreshed every five seconds. When you
move and click the mouse cursor on LEDs (except ACT), USB ports, WAN2, or LAN1 – LAN4,
related web setting page will be open for you to configure if required.
Port
LED (left
side)
USB
Ethernet
Port
(WAN/LAN)
For detailed information about the LED display, refer to I-1-1 LED Indicators and
Connectors.
I - 5 - 2 N a
I - 5 - 2 N a
A name with a link (e.g., Router Name, Current Time, WAN1~3 and etc.) below means you can
click it to open the configuration page for modification.
Vigor2926 Series User's Guide
t u a l P a n e l
t u a l P a n e l
Color Description
Black It means the router or the function is not working.
Green It means the router or the function is working.
Black It means no USB device is connected.
Green It means a USB device is connected.
Black It means such port is disconnected.
Green It means such port is connected (with Giga transmission
rate, 1Gbps) physically.
Orange It means such port is connected (with 10/100 Mbps)
physically.
m e w i t h a L i n k
m e w i t h a L i n k
25
