Subnet
VLAN Tag
Permit untagged device in
P12 to access router
The Vigor router supports up to 50 VLANs. Within the grid of VLANs (vertical columns) and LAN
interfaces (horizontal rows), all hosts within the same VLAN (horizontal row) are visible to
one another.

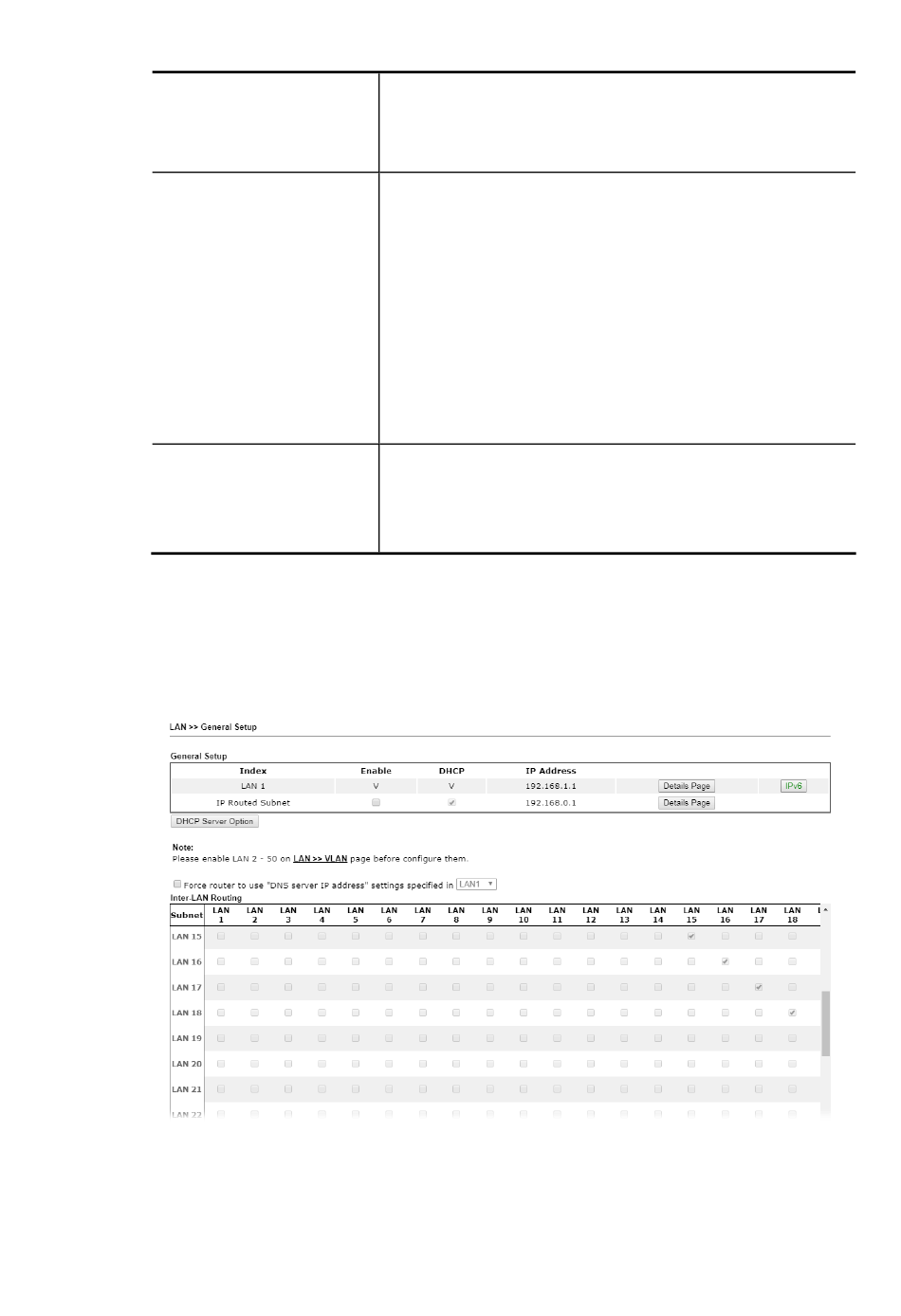

Inter-LAN Routing allows different LAN subnets to be interconnected or isolated. It is only
available when the VLAN functionality is enabled. In the Inter-LAN Routing matrix, a selected
checkbox means that the 2 intersecting LANs can communicate with each other.
Vigor3910 Series User's Guide
Choose one of them to make the selected VLAN mapping to
the specified subnet only. For example, LAN1 is specified for
VLAN0. It means that PCs grouped under VLAN0 can get the
IP address(es) that specified by the subnet.
Enable – Check the box to enable the function of VLAN with
tag.
The router will add specific VLAN number to all packets on
the LAN while sending them out.
Please type the tag value and specify the priority for the
packets sending by LAN.
VID – Type the value as the VLAN ID number. The range is
form 0 to 4095. VIDs must be unique.
Priority – Valid values are from 0 to 7, where 1 has the
lowest priority, followed by 0, and finally from 2 to 7 in
increasing order of priority.
Select to allow untagged hosts connected to LAN port P12 to
access the router. In case you have incorrectly configured
VLAN functionality, you will still be able to access the router
via the Web UI, and telnet and SSH shells to adjust the
configuration.
