Hardware Installation; I-2-1 Installing Vigor Router - Draytek Vigor3910 Series User Manual

I - 2 H a r d w a r e
I - 2 H a r d w a r e
I - 2 - 1 I n s
I - 2 - 1 I n s
Before starting to configure the router, you have to connect your devices correctly.
1. Connect a modem to any WAN port of Vigor3910 with Ethernet cable (RJ-45) to access
Internet.
2. Connect the other end of the cable (RJ-45) to the Ethernet port on your computer (that
device also can connect to other computers to form a small area network). The LAN LED
for that port on the front panel will light up.
3. Connect a server/router (depends on your requirement) to any WAN port of Vigor3910
with Ethernet cable (RJ-45). The WAN LED will light up.
4. Connect the power cord to Vigor3910's power port on the rear panel, and the other side
into a wall outlet.
5. Power on the device by pressing down the power switch on the rear panel. The PWR LED
should be ON.
6. The system starts to initiate. After completing the system test, the ACT LED will light up
and start blinking.

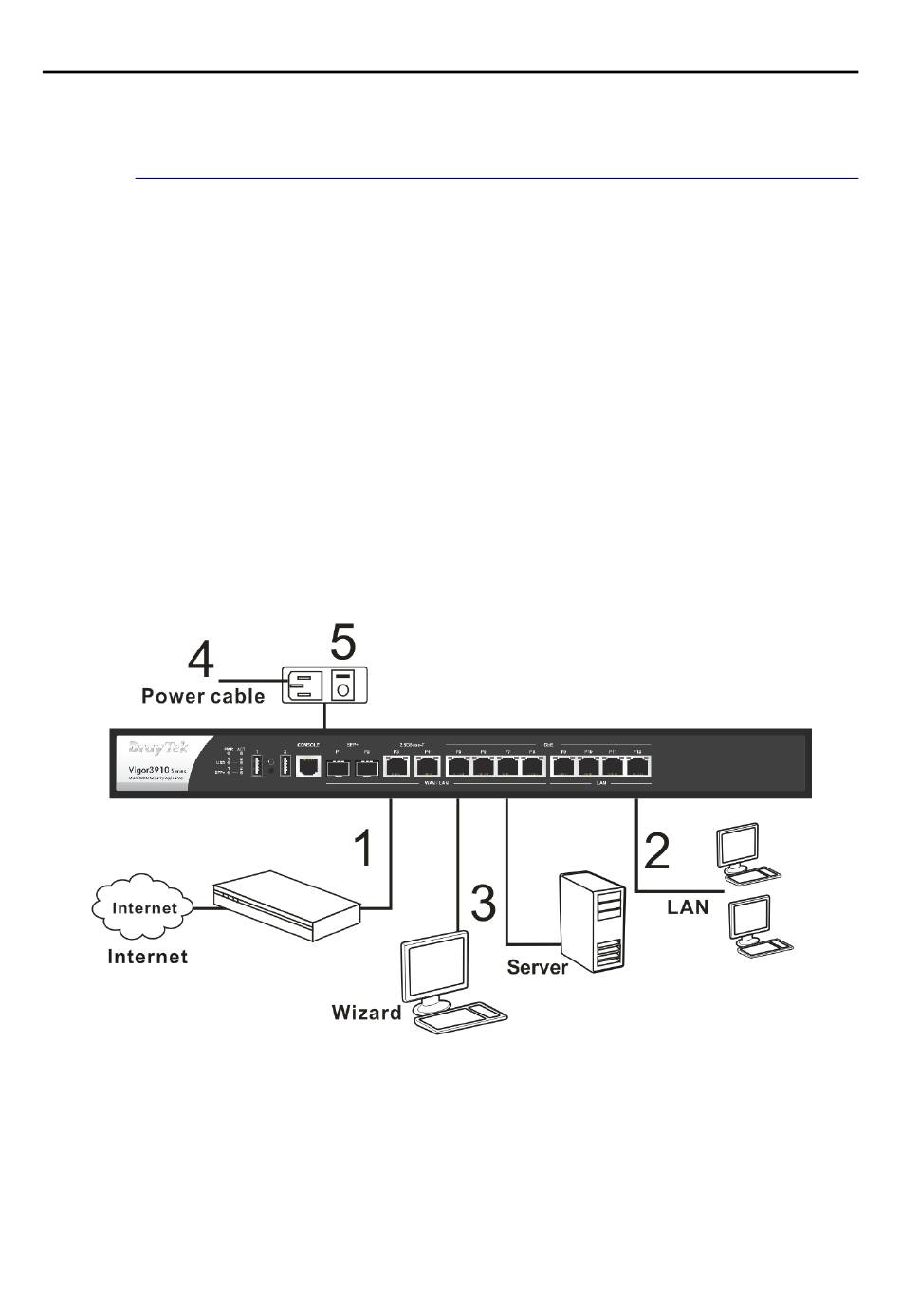

Below shows an outline of the hardware installation for your reference.
Vigor3910 Series User's Guide
I n s t a l l a t i o n
I n s t a l l a t i o n
t a l l i n g V i g o r R o u
t a l l i n g V i g o r R o u
t e r
t e r
5
