9.3.4 Stats (Statistics) Pages
The Stats (Statistics) pages provide read-only status windows: General operating and
configuration information about the modem; Installed Options (FAST, assorted Interface modules,
etc.); Alarms; Tx and Rx Parameters; and Ethernet information.
Click Modem Status, Event Log, Statistics, Config Log, Router Stats, or Ether Stats to
continue.
9.3.4.1

Stats | Modem Status

Use this read-only page to view the modem's current configuration and operation parameters:
•
General Information
•
Installed Options
•
Live Faults. Click on a hyperlinked fault code to display a page that describes the errors
that have been logged.
•
Rx Parameters
•
Modem Symbol Rates
•
Assigned Ethernet MAC and IP Addresses.
Base Modem HTTP Interface Operation

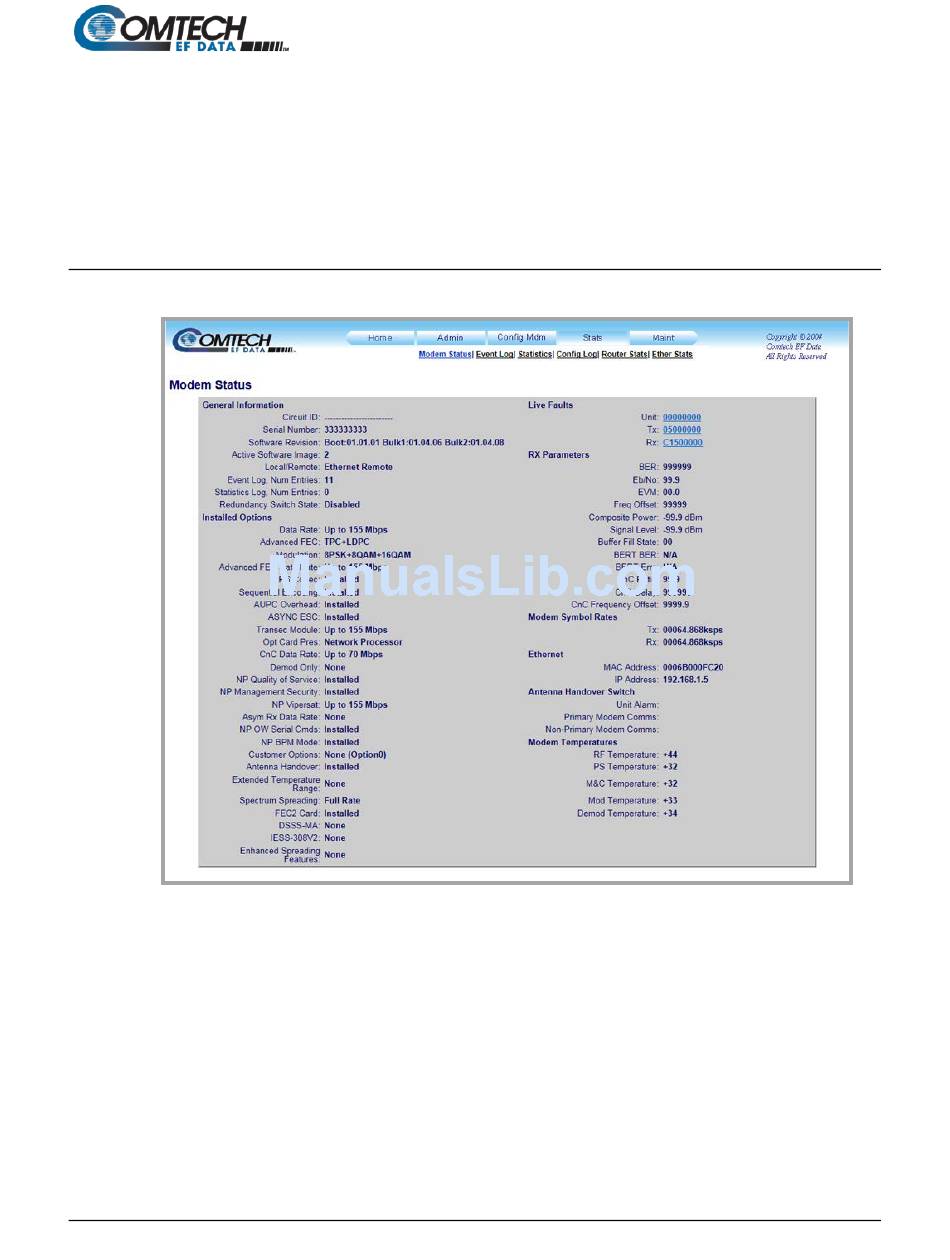

Figure 9-12. Stats | Modem Status Page
