Power Unit

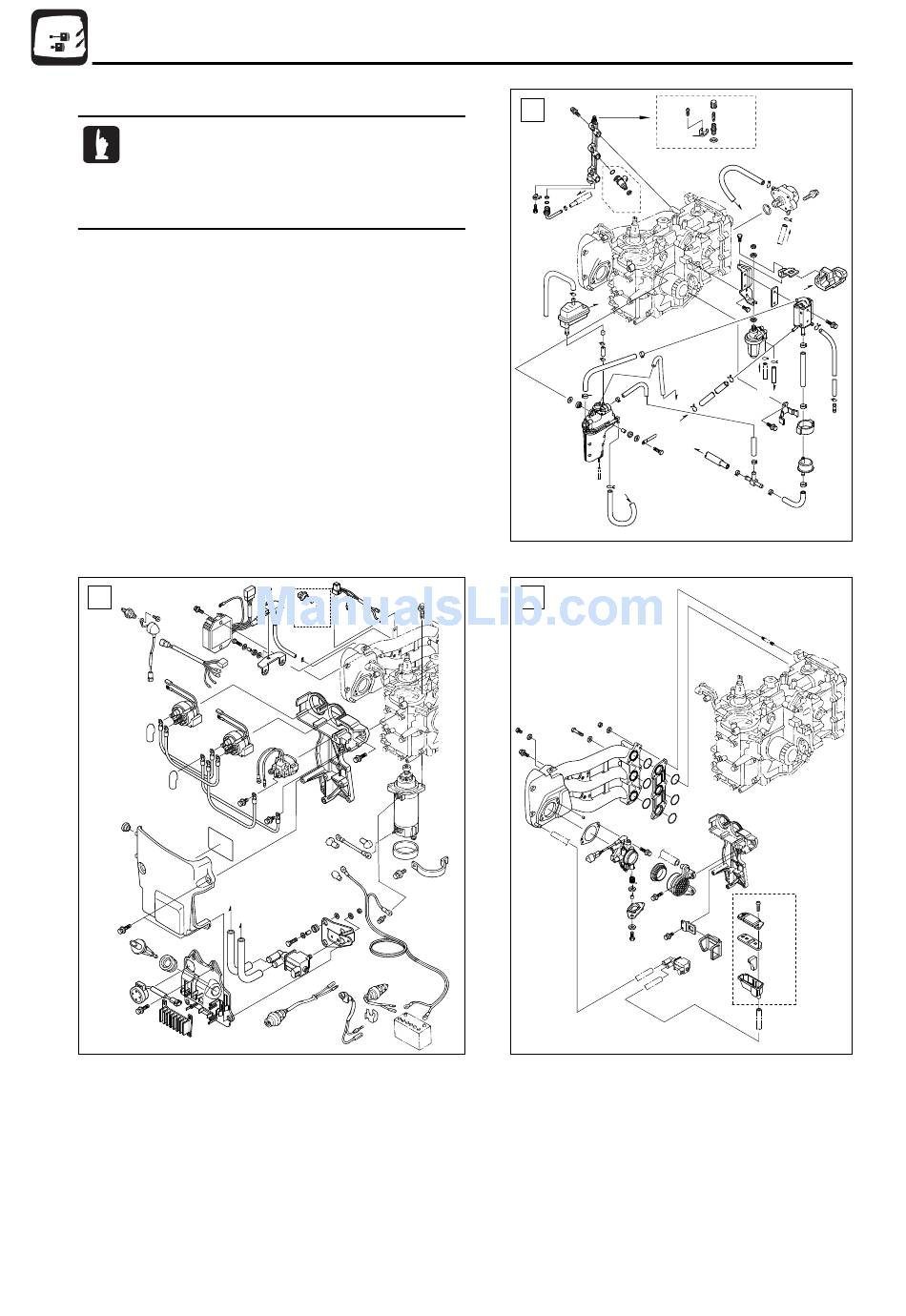

8) Removing Cylinder Head

• No.1 piston is to be at top dead center of
compression stroke.
• Removal or installation of parts can be made
easier when some of them are assembled
together.
1. Remove power unit. (Refer to the section for removing
power unit.)
2. Remove fuel system parts from power unit.
3. Remove electrical system parts from power unit.
4. Remove intake manifold ass'y.
3
5-30
o Intake Manifold
o Intake Silencer
2
R/Mount
Bottom Cowl
Cylinder Block
To Fuel Rail
From Fuel Pump
4
/S
Air ent
To Fuel Pump
